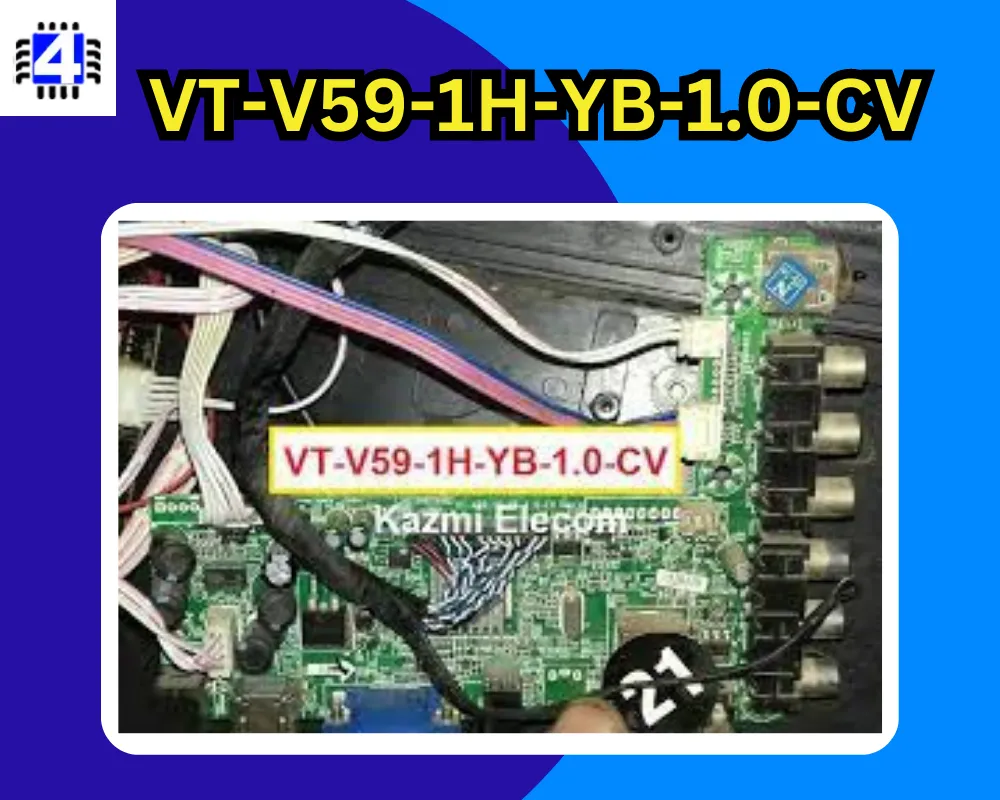

The VT-V59-1H-YB-1.0-CV is a control board designed for analog LCD/LED TVs, specifically tailored for the Asia Pacific and Middle East markets. This board is capable of supporting LCD panels up to 24 inches in size with a maximum resolution of 1920×1080. It is important to note that this is a non-combo board, meaning that the LED backlight driver module and the main power supply module must be obtained separately.
The board features a USB interface that supports multimedia playback and software upgrades. Additionally, its HDMI port adheres to the 1.4 standard, while its HDCP compatibility reaches version 1.1. The VT-V59-1H-YB-1.0-CV is compatible with screens ranging from 15 to 24 inches, offering widescreen support and the option to select from multiple languages. Notably, this control board also boasts a special dual AV feature.
Useful For You
VT-V59-1H-YB-1.0-CV Specification
The VT-V59-1H-YB-1.0-CV model is equipped with the TSUMV59XU main chipset and offers compatibility with PAL, SECAM, and NTSC TV systems. It provides flexibility in panel connectivity with support for both single-channel and dual-channel LVDS interfaces. The control board features key buttons for convenient operation, including channel selection (CH-/CH+), menu navigation (MENU), volume adjustment (VOL-/VOL+), source selection (Source), and power control.
Multi-language support allows users to customize their viewing experience. The board is equipped with HDMI, VGA, AV, USB, RF TV interface, and Earphone Out ports, enabling various input and output options. With an audio output power of 2 x 3 Watts (8 ohms), it delivers clear sound. The panel voltage can be adjusted to +3.3V, +5V, or +12V DC using the jumping cap setting. The USB port supports firmware upgrades and multimedia playback. The board can be controlled via IR remote.
In terms of electrical parameters, it operates on a DC +12 Volt input voltage, consumes a maximum current of 2000mA (without panel), and has a standby power of less than 0.2W. The USB port supports a maximum current of 500mA. For factory service, the input code is 2008, and the board contains a 4MB flash IC. Firmware backup dump is available for easy maintenance and updates.
| Specification | Details |
|---|---|
| Model | VT-V59-1H-YB-1.0-CV |
| Main Chipset | TSUMV59XU |
| TV System | PAL/SECAM/NTSC |
| Panel Interface | Single-channel or Dual-channel LVDS |
| Key Button Functions | CH-/CH+/MENU/VOL-/VOL+Souce/Power |
| Multi-Language | Yes |
| Input/Output Ports | HDMI, VGA, AV, USB, RF TV interface, Earphone Out |
| Audio O/P Power | 2 x 3 Watt (8 ohms) |
| Panel Voltage | +3.3V/+5V/+12V DC (jumping cap setting) |
| USB Port | Yes (Firmware Upgrade and Multimedia Playback Support) |
| IR Control | Yes (Controllable by Remote Control) |
| Electrical Parameters | |
| Working Input Voltage | DC +12 Volt |
| Maximum Current | 2000mA (Without Panel) |
| Standby Power | <0.2W |
| Maximum Current for USB | 500mA |
| Factory Service Mode | |
| Input | 2008 |
| Flash IC | 4MB |
| Firmware Type | Backup Dump |
Download VT-V59-1H-YB-1.0-CV Firmware
