Welcome to teckwiki, your go-to resource for all things related to LED and LCD TV firmware! Today, we’re diving into the world of the VS.T59B-V3.0 and VS.T59B-V3.3 universal control boards. These nifty pieces of tech are designed for the Asia Pacific and Middle East markets, supporting a wide range of LCD panels and delivering a smooth multimedia experience. Ready to get your firmware updated? Let’s go!

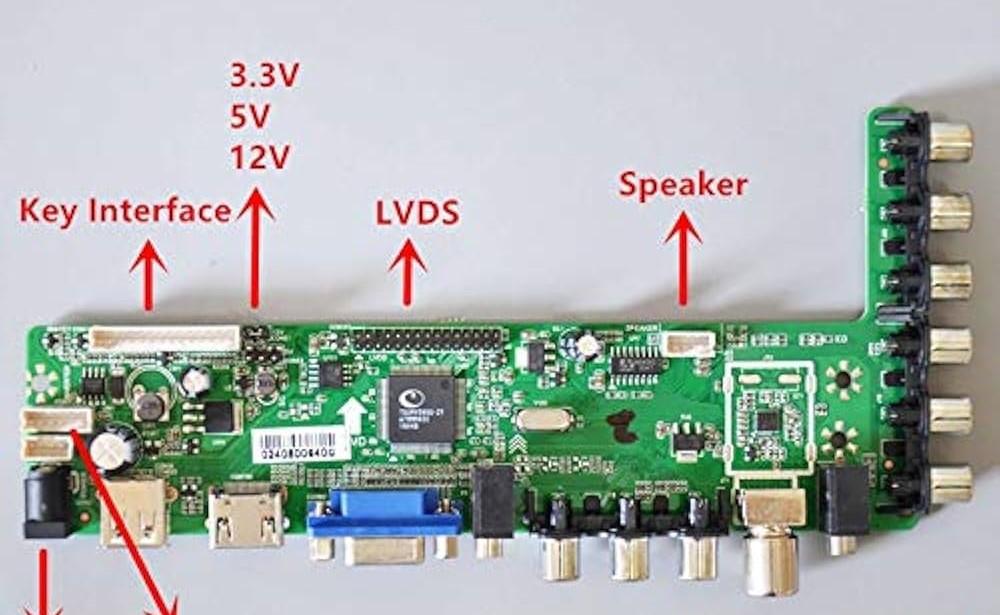

What Makes VS.T59B-V3.0 and VS.T59B-V3.3 Special?
The VS.T59B-V3.0 and VS.T59B-V3.3 are versatile analog LCD/LED TV control boards that can handle more than 26-inch panels with a resolution of up to 1920×1080 Full HD. Here’s what makes them stand out:
- Universal Compatibility: Supports 10-40 inch screens, making it a flexible choice for various setups.
- High-Resolution Support: Capable of handling up to Full HD 1920×1080 resolution.
- Multimedia Ready: Equipped with a USB interface for multimedia playback and firmware upgrades.
- Multiple Inputs: Includes HDMI (1.4), VGA, AV, USB, RF TV interface, and Earphone Out, catering to all your connectivity needs.
- Multi-Language Support: Offers multiple language options for ease of use.
- Special Features: Multiple AV ports and HDCP 3.0 support.
General Specifications
Model:
- VS.T59B-V3.0
- VS.T59B-V3.3
Main Chipset:
- TSUMV59XU / TSUMV29LU
TV System:
- PAL/SECAM/NTSC
Panel Interface:
- Single-channel or Dual-channel LVDS
Key Button Functions:
- CH-/CH+/MENU/VOL-/VOL+/Source/Power
Multi-Language:
- Yes
Input/Output Ports:
- HDMI
- VGA
- AV
- USB
- RF TV Interface
- Earphone Out
Audio Output Power:
- 2 x 3 Watt (8 ohms)
Panel Voltage:
- +3.3V / +5V / +12V DC (jumping cap setting)
USB Port:
- Yes (Firmware Upgrade and Multimedia Playback Support)
IR Control:
- Yes (Controllable by Remote Control)
Electrical Parameters
- Working Input Voltage: DC +12 Volt
- Maximum Current: 2000mA (Without Panel)
- Standby Power: <0.2W
- Maximum Current for USB: 500mA
How to Upgrade Firmware
Upgrading the firmware is a breeze! Follow these simple steps:
- Prepare Your USB Drive: Format a USB drive to FAT32 and copy the required firmware/software onto it.
- Plug and Play: Insert the USB drive into the mainboard’s USB port.
- Power Up: Switch on the TV and wait. The IR indicator LED will flash and then stop. This process usually takes about a minute.
- Finish Up: Once the LED stops flashing, unplug the USB drive. You’re done!
Factory Service Mode
For those who need to access the factory service mode, here’s how:
- Menu 1147
- Input/Source + 308
Important Note
Please remember, that the following firmware file is a backup dump. The teckwiki team is not responsible for any damage or loss resulting from the upload/download process. If you’re new to this, we recommend reading up on the proper procedures for loading or installing software/firmware before proceeding.
Download VS.T59B-V3.0, VS.T59B-V3.3 Firmware All Resolutions
Ready to get started? Click the links below to download the firmware for all resolutions. Happy updating!
VS.T59B-V3.0
- Download VS.T59B-V3.0 V29 1024×768
- Download VS.T59B-V3.0 V29 1280×1024
- Download VS.T59B-V3.0 V29 1280×768
- Download VS.T59B-V3.0 V29 1366×768
- Download VS.T59B-V3.0 V29 1400×1050
- Download VS.T59B-V3.0 V29 1440×900
- Download VS.T59B-V3.0 V29 1600×1200
- Download VS.T59B-V3.0 V29 1600×900
- Download VS.T59B-V3.0 V29 1680×1050
- Download VS.T59B-V3.0 V29 1920×1080
- Download VS.T59B-V3.0 V29 1920×1200
- Download VS.T59B-V3.0 V29 All-Resolutions
VS.T59B-V3.3
- Download VS.T59B-V3.3 ALL RESOLUTIONS
- Download VS.T59B-V3.3 V29-1920×1080-USB
- Download VS.T59B-V3.3 V59-1024×768-USB
- Download VS.T59B-V3.3 V59-1280×1024-USB
- Download VS.T59B-V3.3 V59-1280×768-USB
- Download VS.T59B-V3.3 V59-1366×768-USB
- Download VS.T59B-V3.3 V59-1440×900-USB
- Download VS.T59B-V3.3 V59-1600×900-USB
- Download VS.T59B-V3.3 V59-1680×1050-USB
- Download VS.T59B-V3.3 V59-1920×1080-USB
