What is the VS.T596_V2.2-5 Universal Board?

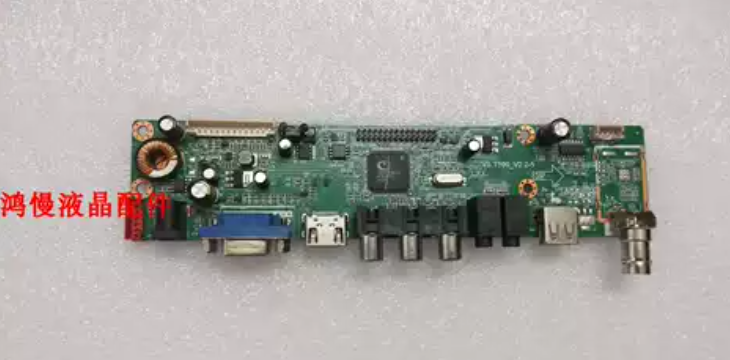

The VS.T596_V2.2-5 is a universal LCD/LED driver board designed to support a variety of display formats up to 1080p. This versatile board is equipped with a main chipset of TSUMMV29LU/TSUMV59XU-Z1, making it compatible with numerous TV systems, including PAL, SECAM, and NTSC.
Basic Information
- Model No: VS.T596_V2.2-5
- Main Chipset: TSUMMV29LU/TSUMV59XU-Z1
- Display Format: Up to 1080p
General Specifications
The VS.T596_V2.2-5 Universal Board is packed with features that ensure a seamless viewing experience. Here are some of its key specifications:
- TV System: PAL/SECAM/NTSC
- Panel Interface: Single channel or Dual channel LVDS
- Key Button Functions: CH-/CH+/MENU/VOL-/VOL+/Source/Power
- Multi-Language OSD: Yes
- Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out Jack
- Audio O/P Power: 2 x 5 Watt (8 ohm)
- Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
- USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
- USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (txt)
- IR Control: Yes (Controllable by Remote Control)
Electrical Parameters
Ensuring your board operates efficiently is crucial. Here are the electrical parameters for the VS.T596_V2.2-5:
- Working Input Voltage: DC +12 Volt
- Maximum Current: 2000mA (Without Panel)
- Standby Power: <0.2W (for the motherboard only)
- Maximum Current for USB: 500mA
How to Upgrade the Firmware
Upgrading the firmware on your VS.T596_V2.2-5 is a straightforward process. Follow these steps to ensure a successful update:
- Copy the Required Firmware/Software: Transfer the firmware file into a FAT32 formatted USB disk.
- Insert the USB Disk: Plug the USB disk into the mainboard USB port of your LCD/LED TV.
- Power On: Switch on the power and wait until the IR indicator LED stops flashing.
- Completion: Unplug the USB disk once the upgrade is complete (it should take no more than a minute).
