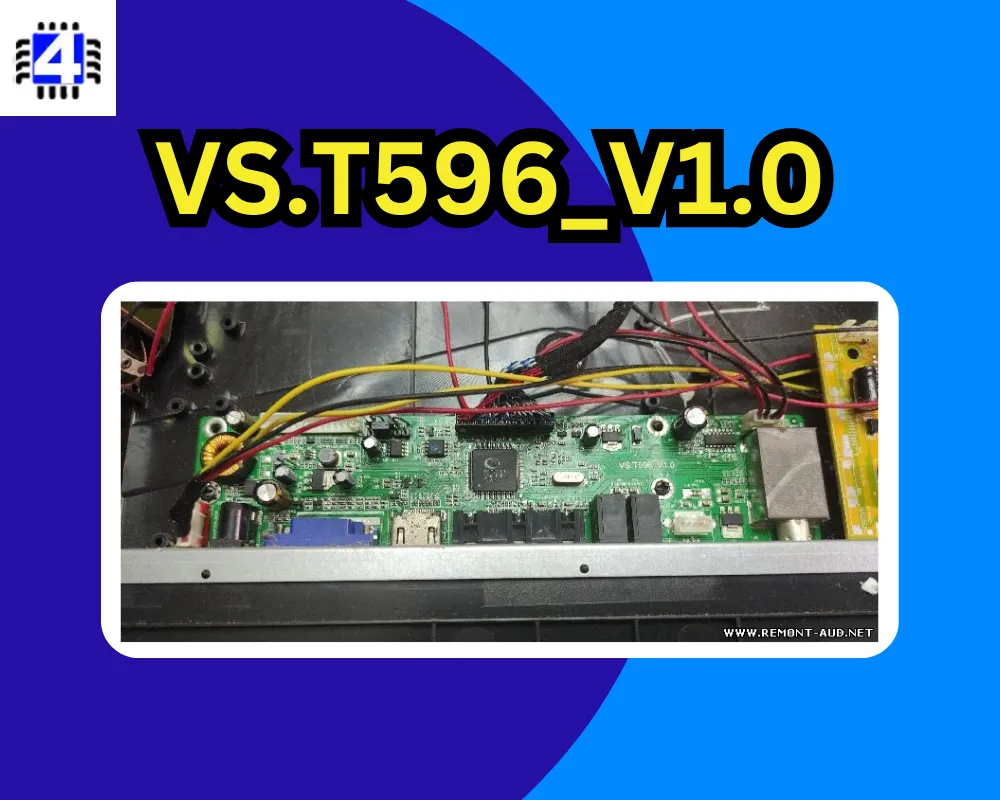

VS.T596_V1.0 is a television with the main chipset TSUMMV29LU. It supports display formats up to 1080 and is compatible with PAL, SECAM, and NTSC TV systems. The panel interface can be either a single-channel or dual-channel LVDS. The TV features key buttons for functions like channel selection, menu navigation, volume control, source selection, and power.
The TV offers a multi-language on-screen display (OSD) and includes various input/output ports such as HDMI, VGA, AV, USB, RF TV interface, and an earphone out jack. The audio output power is 2 x 5 Watts with an 8 ohm impedance. The panel voltage can be set to +3.3V, +5V, or +12V DC using jumping cap settings.
It also includes a USB port for firmware upgrades and multimedia playback, supporting audio formats like Mp3, WMA, m4a/aac, video formats including avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb, picture formats such as Jpg, jpeg, bmp, png, and text files. The TV can be controlled using an infrared (IR) remote control.
In terms of electrical parameters, the TV operates with a working input voltage of DC +12 Volt. The maximum current consumption is 2000mA without the panel, and the standby power consumption for the motherboard alone is less than 0.2W. The maximum current for the USB port is 500mA.
Useful For You
VS.T596_V1.0 Specificatoin
| Model No. | VS.T596_V1.0 |
|---|---|
| Main Chipset | TSUMMV29LU |
| Tuner | |
| Display Format | up to 1080 |
| TV System | PAL/SECAM/NTSC |
| Panel Interface | Single/Dual Channel LVDS |
| Key Button Functions | CH-/CH+/MENU/VOL-/VOL+/Source/Power |
| Multi-Language OSD | Yes |
| Input/Output Ports | HDMI, VGA, AV, USB, RF TV interface, Earphone Out Jack |
| Audio O/P Power | 2 x 5 Watt (8 ohm) |
| Panel Voltage | +3.3V/+5V/+12V DC (jumping cap setting) |
| USB Port | Yes (Firmware Upgrade and Multimedia Playback Support) |
| USB File Format | Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text) |
| IR Control | Yes (Controllable by Remote Control) |
| Electrical Parameters | |
| Working Input Voltage | DC +12 Volt |
| Maximum Current | 2000mA (Without Panel) |
| Standby Power | <0.2W (for the motherboard only) |
| Maximum Current for USB | 500mA |
