Hey there, tech enthusiasts! Are you ready to supercharge your LCD/LED TV with the latest firmware for your VS.T596 board? Whether you’re rocking version V1.1, V1.2, or V1.3, we’ve got you covered with all the information you need to download and install the firmware for all resolutions. Let’s dive into the details and make your TV experience even more awesome!
Why Update Your Firmware?
Updating your TV’s firmware can enhance performance, add new features, and fix bugs. It’s like giving your TV a mini-upgrade without buying new hardware. Plus, it’s a fun and rewarding process for any DIY tech lover!
Basic Info

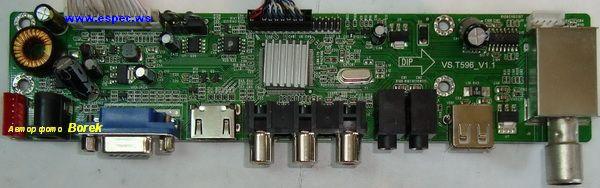

Model No.: VS.T596_V1.1, VS.T596_V1.2, VS.T596_V1.3
Main Chipset: TSUMMV29LU
Display Format: Up to 1080p
TV System: PAL/SECAM/NTSC
General Specifications
- Panel Interface: Single or Dual channel LVDS
- Key Button Functions: CH-/CH+/MENU/VOL-/VOL+/Source/Power
- Multi-Language OSD: Yes
- Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, Earphone Out Jack
- Audio Output Power: 2 x 5 Watt (8 ohm)
- Panel Voltage: +3.3V, +5V, +12V DC (jumper cap setting)
- USB Port: Yes (for firmware upgrades and multimedia playback)
- Supported USB File Formats:
- Audio: Mp3, wma, m4a/aac
- Video: avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb
- Picture: Jpg, jpeg, bmp, png
- Text: txt
- IR Control: Yes (controllable by remote control)
Electrical Parameters
- Working Input Voltage: DC +12 Volt
- Maximum Current: 2000mA (without panel)
- Standby Power: <0.2W (for the motherboard only)
- Maximum Current for USB: 500mA
How to Upgrade Firmware
Ready to update? Here’s how:
- Download the Firmware: First, download the required firmware/software file onto a FAT32-formatted USB disk.
- Insert the USB Disk: Plug the USB disk into the mainboard’s USB port on your LCD/LED TV.
- Power On: Switch on the power and wait until the IR indicator LED stops flashing. This process should take about a minute.
- Complete the Upgrade: Once the flashing stops, unplug the USB disk. Your firmware upgrade is now complete!
Factory Service Mode
If you need to access the factory service mode, here’s how:
- Press INPUT
- Press MENU
Download Links
Conclusion
Updating your VS.T596 firmware is a breeze with the right guidance and tools. Enjoy enhanced performance and new features on your TV. If you have any questions or run into any issues, feel free to reach out. Happy upgrading!
