Hey there, tech enthusiasts! If you’re looking to breathe new life into your LCD panel, you’ve landed on the right page. Today, we’re diving into the TSUX9V5.1-C firmware software, available for download in all resolutions, and updated for 2024. Whether you’re a seasoned pro or a newbie in the world of LCD controller boards, we’ve got you covered with everything you need to know about this versatile gem.
What is TSUX9V5.1-C?

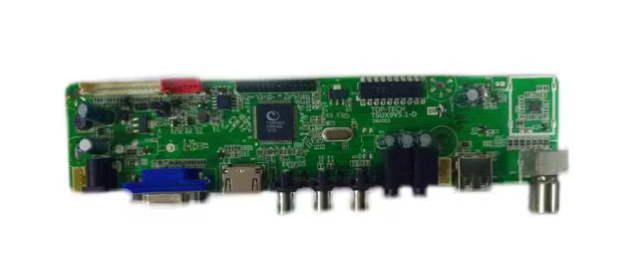

The TSUX9V5.1-C is a multi-purpose LCD driver board designed primarily for the Asian market. This controller board supports FULL HD LCD panels and a variety of input signals, making it a fantastic choice for upgrading or repairing your display setup.
Key Features
- Model No.: TSUX9V5.1-C
- Main Chipset: TSUMV59
- Trademark: TOP-TECH
- Display Format: Up to 1920×1080
- SPI Memory: 4MB
- Sound IC: 1517P
General Specifications
- TV System: PAL/SECAM/NTSC
- Panel Interface: Single or Dual Channel LVDS
- Key Button Functions: CH-/CH+/MENU/VOL-/VOL+/Source/Power
- Multi-Language OSD: Yes
- Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
- Audio Output Power: 2 x 3 Watt (8 ohm)
- Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
- USB Port: Yes (Supports Firmware Upgrade and Multimedia Playback)
Supported USB File Formats
- Audio: MP3, WMA, M4A/AAC
- Video: AVI, MP4, TS/TRP, MKV/MOV, MPG, DAT, VOB, RM/RMVB
- Picture: JPG, JPEG, BMP, PNG
- Text: TXT
Electrical Parameters
- Working Input Voltage: DC +12 Volt
- Maximum Current: 2000mA (Without Panel)
- Standby Power: <0.2W (for the motherboard only)
- Maximum Current for USB: 500mA
How to Upgrade Firmware
Upgrading your TSUX9V5.1-C firmware is a breeze! Just follow these steps:
- Empty the U Disk: Make sure your USB drive is empty.
- Copy the Program: Transfer the firmware file corresponding to your screen size to the USB drive.
- Connect the USB: Plug the USB drive into the Mainboard.
- Connect the Keyboard and TV Mainboard: Attach your keyboard to the mainboard.
- Power Up: Connect the power supply and check the keyboard light. If it’s flashing, the program is being written. Wait for the light to turn green, indicating the process is complete. If there’s no flashing light, disconnect the power and USB, then try reconnecting them.
Note: The provided software is a backup dump and can be written using a programming tool. We are not responsible for any damage or loss resulting from uploading or downloading the firmware. Always check the mainboard before installing the software. If you’re new to this, make sure to read detailed instructions or seek expert advice.
Factory Service Mode
To enter the factory service mode, press Menu + 2580.
Download the TSUX9V5.1-C Firmware
Ready to upgrade? Click the link below to download the TSUX9V5.1-C firmware for free:
- Download TSUX9V5.1-C V59 1024×768-USB
- Download TSUX9V5.1-C V59 1280×1024-USB
- Download TSUX9V5.1-C V59 1366×768-USB
- Download TSUX9V5.1-C V59 1440×900-USB
- Download TSUX9V5.1-C V59 1600×900-USB
- Download TSUX9V5.1-C V59 1920×1080-USB
Related Posts:
With this guide, you’ll have your LCD panel up and running in no time, delivering crisp, full HD visuals and a host of multimedia capabilities. Happy upgrading!
