Welcome to Teckwiki.com! Today, April 03, 2025, we’re bringing you a detailed post about the TPD.RT2851T.PC778 firmware. This UHD smart Android LED TV motherboard is popular for its 4K resolution and versatile features. In this guide, you’ll find all resolution firmware files, technical specs, and a simple how-to for writing the EMMC backup. Whether you’re a technician or a TV user, this post has everything you need. Let’s get started!

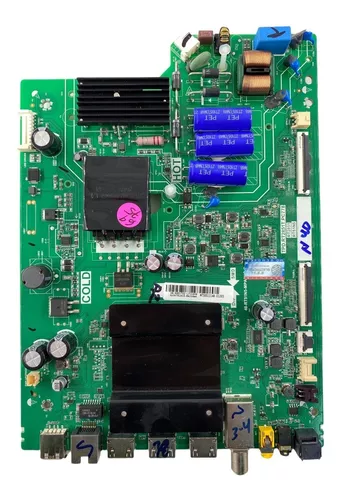

What Is the TPD.RT2851T.PC778 Motherboard?
The TPD.RT2851T.PC778 is a universal UHD smart TV motherboard designed for modern LED TVs. It supports a crisp 4K Ultra HD resolution (3840×2160), making it perfect for high-quality viewing. This combo board includes the power supply, cable TV tuner, and LED backlight driver all on one PCB (printed circuit board). With 16 GB of ROM storage, users can install apps like Netflix and YouTube easily.
This motherboard powers TVs like the TCL 50P65 and offers a range of input-output ports for connectivity. It’s built for performance with a Quad-Core CPU and Mali-450 GPU, running on Android OS. Below, we’ll break down its features and specs.
TPD.RT2851T.PC778 Firmware Files – Free Download
We’ve gathered all the resolution firmware files for the TPD.RT2851T.PC778. These are EMMC backup dumps, ready for you to use. Here’s what we’re providing:
- TPD.RT2851T.PC778-RT51N5-16GB-TCL-50P65-EMMC.part01
- TPD.RT2851T.PC778-RT51N5-16GB-TCL-50P65-EMMC.part02
- TPD.RT2851T.PC778-RT51N5-16GB-TCL-50P65-EMMC.part03
- TPD.RT2851T.PC778-RT51N5-16GB-TCL-50P65-EMMC.part04
- TPD.RT2851T.PC778-RT51N5-16GB-TCL-50P65-EMMC.part05
- TPD.RT2851T.PC778-RT51N5-16GB-TCL-50P65-EMMC.part06
- TPD.RT2851T.PC778-RT51N5-16GB-TCL-50P65-EMMC.part07
- TPD.RT2851T.PC778-RT51N5-16GB-TCL-50P65-EMMC.part08
- TPD.RT2851T.PC778-RT51N5-16GB-TCL-50P65-EMMC.part09
- TPD.RT2851T.PC778-RT51N5-16GB-TCL-50P65-EMMC.part10
- TPD.RT2851T.PC778-RT51N5-16GB-TCL-50P65-EMMC.part11
- TPD.RT2851T.PC778-RT51N5-16GB-TCL-50P65-EMMC.part12
- TPD.RT2851T.PC778-RT51N5-16GB-TCL-50P65-EMMC.part13
- TPD.RT2851T.PC778-RT51N5-16GB-TCL-50P65-EMMC.part14
- TPD.RT2851T.PC778-RT51N5-16GB-TCL-50P65-EMMC.part15
- TPD.RT2851T.PC778-RT51N5-16GB-TCL-50P65-EMMC.part16
- TPD.RT2851T.PC778-RT51N5-16GB-TCL-50P65-EMMC.part17
- TPD.RT2851T.PC778-RT51N5-16GB-TCL-50P65-EMMC.part18
- TPD.RT2851T.PC778-RT51N5-16GB-TCL-50P65-EMMC.part19
- TPD.RT2851T.PC778-RT51N5-16GB-TCL-50P65-EMMC.part20
- TPD.RT2851T.PC778-RT51N5-16GB-TCL-50P65-EMMC.part21
- TPD.RT2851T.PC778-RT51N5-16GB-TCL-50P65-EMMC.part22
- TPD.RT2851T.PC778-RT51N5-16GB-TCL-50P65-EMMC.part23
Note: Files are split into parts. Use a tool like WinRAR to combine them after downloading.
Key Features of TPD.RT2851T.PC778
This motherboard stands out for its user-friendly design and solid performance. Here are its main highlights:
- 4K UHD Resolution: Displays 3840×2160 pixels for sharp, clear visuals.
- Smart Android OS: Runs apps like YouTube and Netflix smoothly.
- 16 GB Storage: Plenty of space for apps and updates.
- Triple HDMI Ports: Connect multiple HD devices at once.
- RJ45 Ethernet: Fast wired internet for streaming.
- Bluetooth 5.0: Pair with speakers or headphones.
- Wi-Fi Support: Works on 2.4GHz and 5GHz bands.
- Audio Power: Delivers 20W (2x10W) sound output.
Technical Specifications
Here’s a full rundown of the TPD.RT2851T.PC778 specs:
- Board Model: TPD.RT2851T.PC778 40-RT51N5-MPA2HG-C
- Main Chipset: RT51N5
- CPU: Quad-Core ARM Cortex-A53 (64-bit)
- GPU: Mali-450 MP3
- RAM: 2 GB DRAM
- ROM: 16 GB EMMC Flash
- Resolution: 4K UHD (3840×2160)
- Audio Output: 2x10W (20W total, 8 ohm)
- Backlight Voltage: 90-102V
- Power Input: 110V-240V, 50Hz
- Power Consumption: 105W
- HDMI Ports: 3 (HDMI 2.0, HDCP 2.2)
- USB Ports: 2 (USB 2.0)
- Tuner: ATV and DTV (R842, RT710)
- Wi-Fi: Dual-band (2.4GHz/5GHz)
- Bluetooth: 5.0
- Supported Formats: MP3, WMA, MPEG4, MKV, JPEG
- Refresh Rate: 60 Hz
- Response Time: 8 ms
- Display Scale: 16:9
This board supports features like Dolby Digital, Mira-Cast, and DLNA 1.5, making it a great choice for smart TVs.
How to Write TPD.RT2851T.PC778 EMMC Backup
Updating or repairing your TV with the firmware is straightforward. Follow these steps to write the EMMC backup:
- Download the Files: Grab the firmware files listed above.

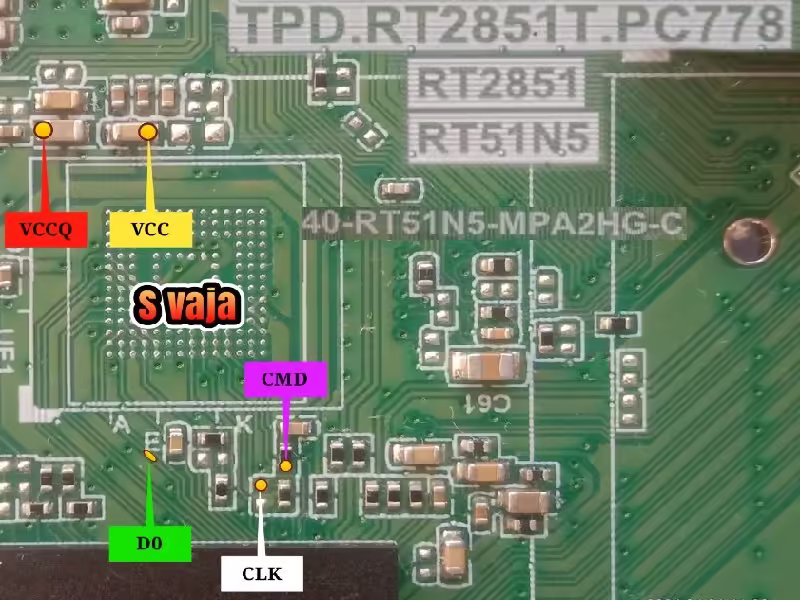

- Check EMMC Pinouts: Look at the pinout image (D0, CMD, CLK) for reference.
- Connect the Board: Use a JTAG tool to link the motherboard to your computer.
- Write the Data: Load the EMMC backup into the programming tool and write it to the board.
- Finish Up: Disconnect and test your TV.
Tip: Double-check connections to avoid errors.
Why Choose TPD.RT2851T.PC778 Firmware?
This firmware fixes common TV issues like:
- Black screen or no display.
- Stuck on the boot logo.
- App crashes or slow performance.
It’s tested for the TCL 50P65 and other compatible models. With 4K support and smart features, it keeps your TV running smoothly.
Common Questions About TPD.RT2851T.PC778 (FAQ)
Here are answers to questions users often ask, based on Google’s “People Also Ask”:
What TVs Use TPD.RT2851T.PC778?
This board is found in models like the TCL 50P65. It’s a universal motherboard, so it may work with other 4K smart TVs too.
How Do I Update the Firmware?
Download the files, use a USB drive or JTAG tool, and follow the steps above. Always back up your current firmware first.
Does It Support Netflix and YouTube?
Yes, the Android OS and 16 GB storage make it perfect for streaming apps.
What’s the Backlight Voltage?
It ranges from 90V to 102V, depending on your TV’s panel.
Where to Find More TV Firmware?
Need firmware for other boards? Check out these posts on Teckwiki.com:
Final Thoughts
The TPD.RT2851T.PC778 is a reliable UHD smart TV motherboard with strong features and easy firmware updates. With our free firmware files and step-by-step guide, you can get your TV back to peak performance. Download the files today and let us know how it goes in the comments!
