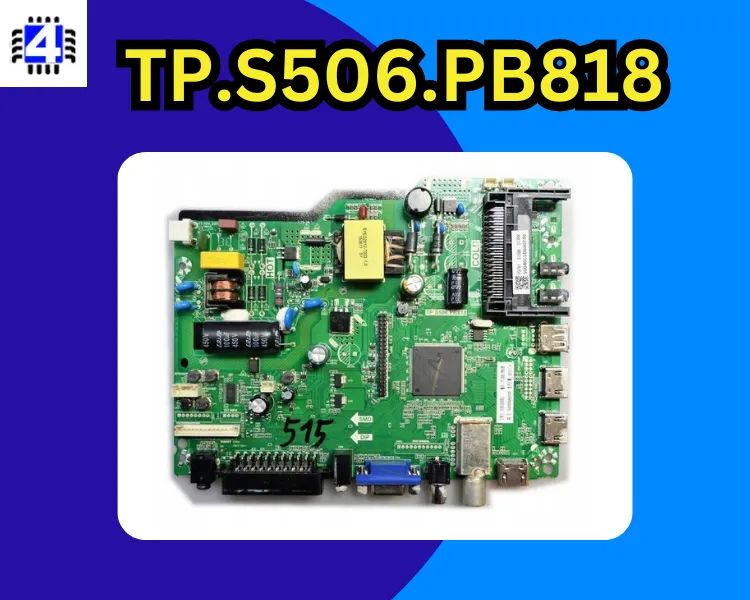

The TP.S506.PB818 is a versatile control board designed specifically for analog LCD/LED TVs in the Asia Pacific and the Middle East markets. It is capable of supporting LED panels ranging from 24 inches to 32 inches in size, with a maximum resolution of 1920×1080 pixels.
One of the notable features of the TP.S506.PB818 is its USB interface, which allows for multimedia playback and software upgrades. This means that users can connect their USB devices to the control board and enjoy various media files such as movies, music, and photos. Additionally, the USB interface enables easy software updates, ensuring that the TV remains up-to-date with the latest features and improvements.
The TP.S506.PB818 also comes equipped with an HDMI port that supports version 1.4, providing high-definition connectivity options for external devices such as gaming consoles, Blu-ray players, and streaming devices. Moreover, it supports HDCP version 1.1, ensuring compatibility with protected content from various sources.
This control board is compatible with both non-HD and Full HD (FHD) LCD/LED panel screens, offering flexibility for different display resolutions. It also features widescreen support, allowing for an immersive viewing experience on TVs with a wider aspect ratio. Additionally, the TP.S506.PB818 provides a multi-language option, making it accessible to users from different regions and language preferences.
Useful For You
TP.S506.PB818 Specification
| Board Make | China |
|---|---|
| Board Model | TP.S506.PB818 |
| Main Chipset | S21506 |
| TV System | PAL/SECAM/NTSC |
| Panel Interface | Single-channel or Dual-channel LVDS |
| Key Button Functions | CH-/CH+/MENU/VOL-/VOL+Source/Power |
| Multi-Language | Yes |
| Input/Output Ports | HDMI, VGA, AV, USB, RF TV interface and Earphone Out |
| Audio O/P Power | 2 x 8 Watt (8 ohms) |
| Panel Voltage | +5V/+12V / +3.3V DC (Jumper Setting) |
| USB Port | Yes (Firmware Upgrade and Multimedia Playback Support) |
| IR Control | Yes (Controllable by Remote Control) |
| Electrical Parameters | |
| Working Input Voltage | AC220 Volt |
| Maximum Current | 5000mA (Without Panel) |
| Standby Power | <0.5W |
| Maximum Current for USB | 500mA |
| Flash IC | 4MB |
| Bin Name | SIS506_xx.bin |
| Firmware Type | Backup Dump |
Download TP.S506.PB818 Firmware
