Welcome to Teckwiki.com! Today, April 03, 2025, we’re sharing a complete guide on the TP.MS6683T.PB732 firmware for your smart Android TV motherboard. This post provides free firmware files, detailed specs, and a simple how-to for updating your TV. Whether you own a VU, Hisense, or another compatible brand, this universal board’s software is here for you. Let’s get started with everything you need to know!
What Is the TP.MS6683T.PB732 Smart Android Board?
The TP.MS6683T.PB732 is a powerful three-in-one smart Android LCD/LED TV motherboard. It combines a main power supply, backlight driver, and TV tuner into one compact board. With a maximum resolution of 1920×1080 Full HD, it’s perfect for crisp, clear visuals. This board supports both analog (ATV) and digital (DTV) signals, including DVB-T and DVB-T2, making it versatile for various regions.
It comes loaded with popular apps like Netflix, Prime Video, YouTube, and Google Play Store, all pre-installed. Plus, it offers wireless options like WiFi, Bluetooth 5.0, and Mira-Cast for easy streaming. If you’re looking to update or repair your TV, downloading the right firmware is key. We’ve got you covered with free files below!
TP.MS6683T.PB732 General Information
Here’s a quick look at the board’s basic details:
- Board Model: TP.MS6683T.PB732
- Main Chipset: Mstar MSD6683
- CPU: Quad-Core ARM Cortex-A53 (64-bit)
- GPU: Dual-Core Mali470MP
- Android Version: 9.0 Pie
- Resolution: 1920×1080 (Full HD)
- Audio Power: 2x10W (20W total, 8 ohm)
- USB Ports: 2
- HDMI Ports: 2
- RJ45 (Ethernet): Yes
- WiFi: Yes
- Bluetooth: 5.0
- Memory (RAM): 1GB DRAM
- Storage (ROM): 8GB EMMC Flash
- Power Rating: 110V–240V, 50Hz
- Power Consumption: 50W
- Firmware Name: upgrade_loader.pkg
- Firmware Type: EMMC Backup Dump
- Supported Brands: VU, Hisense
This board is a solid choice for 32-inch to 43-inch TVs, delivering reliable performance for everyday use.
Technical Specifications of TP.MS6683T.PB732
Let’s break down the tech specs for a clearer picture:
- Resolution: 1920×1080 Full HD
- Display Type: DLED backlight
- Response Time: 8ms
- Aspect Ratio: 16:9
- Refresh Rate: 60Hz
- Processor: Quad-Core ARM Cortex-A53 (1.5GHz)
- GPU: Mali470MP
- RAM: 1GB
- ROM: 8GB
- Audio: 10W + 10W stereo with Dolby Digital
- HDMI: 2 ports (HDMI 2.0, HDCP 2.2)
- USB: 2 ports (USB 2.0)
- Tuners:
- Analog: PAL/SECAM/NTSC (BG/DK/I/LL)
- Digital: DVB-T/DVB-T2
- Supported Formats: MP3, WMA, MPEG4, MKV, JPEG
- Connectivity: WiFi (2T2R), Bluetooth 5.0, Mira-Cast, DLNA 1.5
- Features: PVR, Timeshift, Cricket Mode, HD Streaming, Sleep Timer, Game Mode
This board handles multiple video codecs like H.264, H.265, and VP9, ensuring smooth playback for all your favorite content.
Why Update Your TP.MS6683T.PB732 Firmware?
Updating your TV’s firmware can fix common issues like:
- Slow performance or app crashes
- Blank screen after the logo
- Connectivity problems with WiFi or Bluetooth
- Outdated apps or features
A fresh firmware install also keeps your TV running smoothly with the latest Android 9.0 Pie updates. Below, we’ve listed the files you’ll need and a step-by-step guide to write the EMMC backup.
Download TP.MS6683T.PB732 Firmware Files
Here are the free firmware files for the TP.MS6683T.PB732 motherboard:
- TP.MS6683T.PB732-8G-HISENSE-32-USB.part1
- TP.MS6683T.PB732-8G-HISENSE-32-USB.part2
- TP.MS6683T.PB732-8G-HISENSE-32-USB.part3
- TP.MS6683T.PB732-8G-HISENSE-32-USB.part4
- TP.MS6683T.PB732-8G-VU-32-EMMC.part1
- TP.MS6683T.PB732-8G-VU-32-EMMC.part2
- TP.MS6683T.PB732-8G-VU-32-EMMC.part3
- TP.MS6683T.PB732-8G-VU-32-EMMC.part4
- TP.MS6683T.PB732-8G-VU-32-EMMC.part5
These are EMMC backup dumps, tested and ready for VU and Hisense TVs. Make sure to download both parts for each version and combine them before use.
How to Write TP.MS6683T.PB732 EMMC Backup
Follow these steps to update your TV with the firmware:
- Download the Files: Grab the EMMC backup files from the link above.

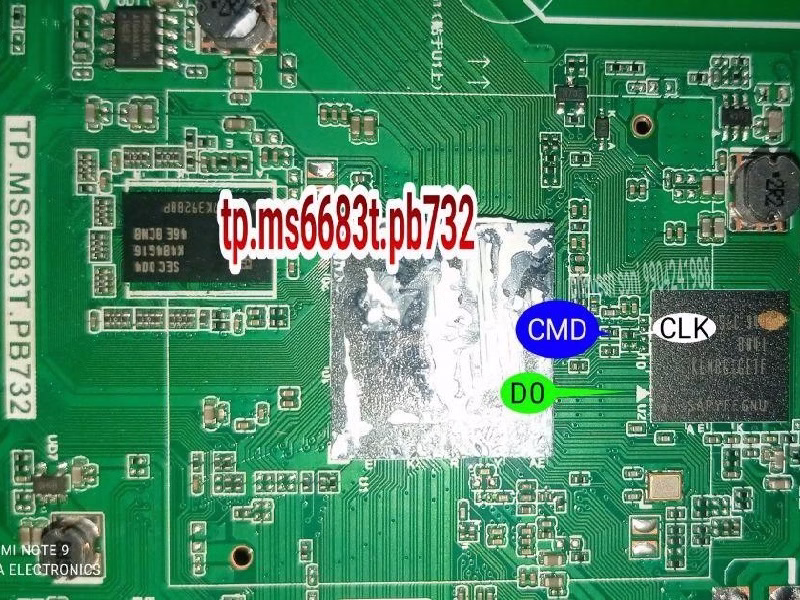

- Check EMMC Pinouts: Look at the pinout diagram (D0, CMD, CLK) for your board.
- Set Up Your Tools: Use a programming tool like a JTAG programmer.
- Connect the Board: Attach the mainboard to the programmer using the pinouts.
- Write the Data: Load the firmware file and write it to the EMMC.
- Finish Up: Disconnect everything and test your TV.
Done! Your TV should boot up with the updated software. If you’re new to this, search YouTube for “EMMC firmware flashing” for video guides.
Preloaded Apps and Features
The TP.MS6683T.PB732 comes with these licensed apps:
- Netflix
- Prime Video
- YouTube
- Hotstar
- Google Play Store
It also includes Google apps like Google Play Movies, Google Music, and Google Games. Hot keys on the remote make accessing these apps quick and easy. Plus, features like PVR, Timeshift, and Cricket Mode add extra value for users.
Common Questions About TP.MS6683T.PB732 Firmware
Here are answers to questions from Google’s “People Also Ask” section:
1. How do I fix a blank screen after the logo?
A blank screen often means corrupted firmware. Download the files above and flash them using the steps provided.
2. Can I update this board to Android 10?
No, the hardware supports Android 9.0 Pie only. Higher versions may not work properly.
3. What TVs use TP.MS6683T.PB732?
Brands like VU and Hisense commonly use this board in 32-inch to 43-inch models.
4. Is the firmware safe to download?
Yes, our files are tested EMMC backups. Always scan downloads with antivirus software for safety.
Tips for a Smooth Firmware Update
- Use a reliable USB drive (16GB or less) formatted to FAT32.
- Double-check your TV model before flashing.
- Keep a stable power supply during the process to avoid interruptions.
- Back up your current firmware if possible, just in case.
Final Thoughts
The TP.MS6683T.PB732 is a dependable universal TV motherboard with solid features and wide compatibility. With the firmware files and guide above, you can bring your TV back to life or boost its performance. Download the files today and follow our steps for a hassle-free update. Have questions? Drop them in the comments below—we’re here to help!
