TP.MS1306.PB775 Firmware Download

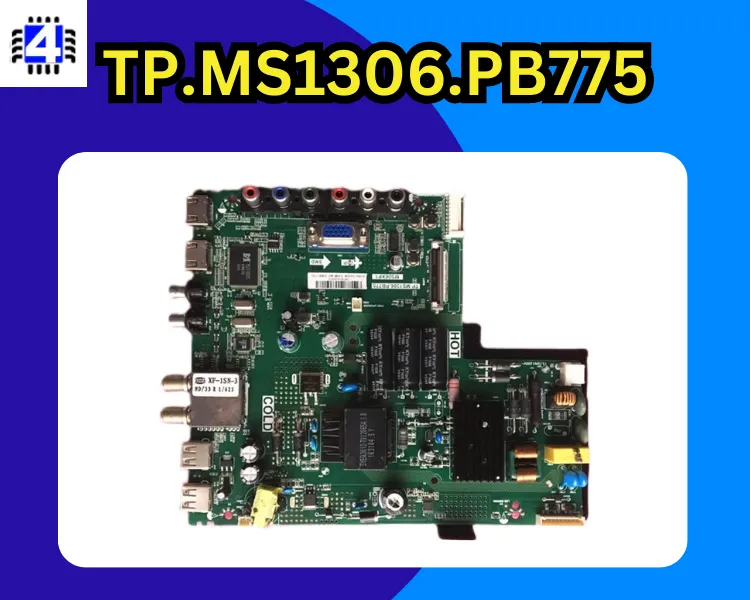

The TP.MS1306.PB775 MS06XP1 (Combo Board) is a motherboard commonly used in televisions. It features the MSD1306XS-Z1 as its main chipset, providing efficient performance and functionality.


The motherboard supports LED backlighting with a voltage of 63V and a current of 600mA, ensuring vibrant and energy-efficient display illumination. It is compatible with display formats of up to 1920×1080, allowing for high-definition visuals on screens ranging from 39 inches to 43 inches in size.

In terms of connectivity, the TP.MS1306.PB775 features an array of input/output ports, including HDMI, VGA, AV, USB, RF TV interface, and Earphone Out. These ports enable seamless connections with various external devices, such as gaming consoles, media players, and audio systems.


TP.MS1306.PB775 Firmware Download
TP.MS1306.PB775 Firmware Download

TP.MS1306.PB775 Specification

Model No.TP.MS1306.PB775 MS06XP1 (Combo Board)
Main ChipsetMSD1306XS-Z1
LED Backlight63v 600mA
Display Formatup to 1920×1080
Panel Supported39″ to 43″
Aspect Ratio4:3, 16:9 & 16:10
TV SystemPAL/SECAM/NTSC
Panel InterfaceSingle channel or Dual-channel LVDS
Key Button FunctionsCH-/CH+/MENU/VOL-/VOL+/Source/Power
Multi-Language OSDYes
Input/Output PortsHDMI, VGA, AV, USB, RF TV interface, Earphone Out
Audio O/P Power2 x 8 Watt (8 ohms)
Panel Voltage12V DC Default
USB PortYes (Firmware Upgrade and Multimedia Playback Support)
USB File FormatAudio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR ControlYes (Controllable by Remote Control)
Electrical Parameters
Working Input VoltageAC 220V
Maximum Current3000mA (Without Panel)
Standby Power<0.2W (for the motherboard only)
Maximum Current for USB500mA

Download TP.MS1306.PB775 Firmware
