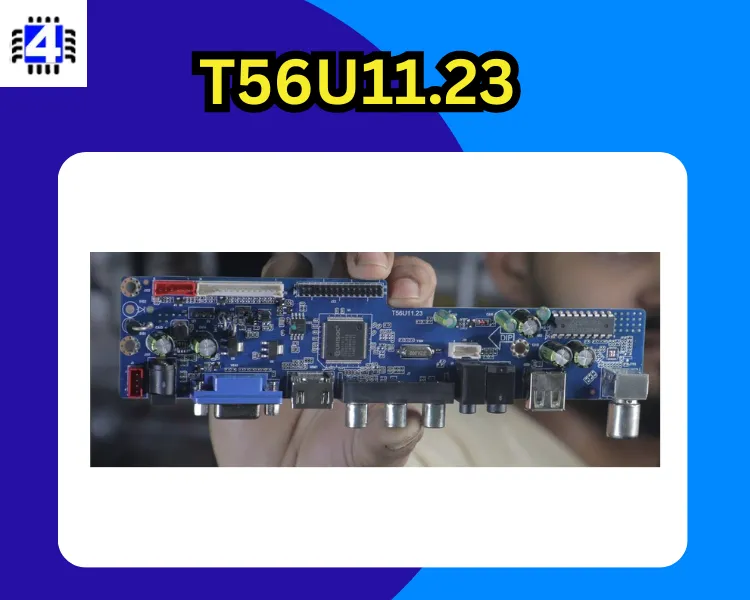

The T56U11.23 is a versatile jumper board equipped with a multi-remote and resolution software. It features the UTS6710-X chipset and supports display formats up to 1920×1080, with aspect ratios of 4:3, 16:9, and 16:10. The board includes a tuner and is powered by the CD1517CP sound system. It has a SPI memory capacity of 25Q32 (4mb) and supports multiple resolution codes.
The T56U11.23 offers various general specifications, including optional TV system compatibility and single-channel or dual-channel LVDS panel interface. The key button functions include CH-/CH+/MENU/VOL-/VOL+, Source/Power. It supports a multi-language OSD and comes with built-in games. The input/output ports include HDMI, VGA, AV, USB, RF TV interface, and Earphone Out. The audio output power is 2 x 3 Watt (8 ohms), and the panel voltage can be set to +3.3V/+5V/+12V DC through jumping cap settings. The board also features a USB port for firmware upgrades and multimedia playback, supporting various file formats such as audio, video, pictures, and text.
In terms of electrical parameters, the T56U11.23 operates with a working input voltage of DC +12 Volt. The maximum current without a panel is 2000mA, and the standby power consumption for the motherboard alone is less than 0.2W. The USB port supports a maximum current of 500mA. Additionally, the board can be controlled through IR using a remote control.
Multi-Resolution Code:
- INPUT/SOURCE 031187 FOR 1920X1080
- INPUT/SOURCE 031181 FOR 1366X768
- INPUT/SOURCE 031183 FOR 1280X1024
- INPUT/SOURCE 031184 FOR 1440X900
- INPUT/SOURCE 031185 FOR 1600X900
- INPUT/SOURCE 031186 FOR 1680X1050
- INPUT/SOURCE 031182 FOR 1024X768
Useful For You
T56U11.23 Specification
| Specification | Value |
|---|---|
| Model No. | T56U11.23 |
| Main Chipset | UTS6710-X |
| Display Format | up to 1920×1080 |
| Aspect Ratio | 4:3, 16:9 & 16:10 |
| Tuner | Yes |
| Sound | CD1517CP |
| SPI Memory | 25Q32 (4mb) |
| Multi Resolution Codes | |
| TV System | Optional |
| Panel Interface | Single-channel or Dual-channel LVDS |
| Key Button Functions | CH-/CH+/MENU/VOL-/VOL+Souce/Power |
| Multi-Language OSD | Yes |
| Games | Yes |
| Input/Output Ports | HDMI, VGA, AV, USB, RF TV interface, and Earphone Out |
| Audio O/P Power | 2 x 3 Watt (8 ohms) |
| Panel Voltage | +3.3V/+5V/+12V DC (jumping cap setting) |
| USB Port | Yes |
| USB File Format | Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text) |
| IR Control | Yes (Controllable by Remote Control) |
| Working Input Voltage | DC +12 Volt |
| Maximum Current | 2000mA (Without Panel) |
| Standby Power | <0.2W (for the motherboard only) |
| Maximum Current for USB | 500mA |
Download T56U11.23 Firmware
