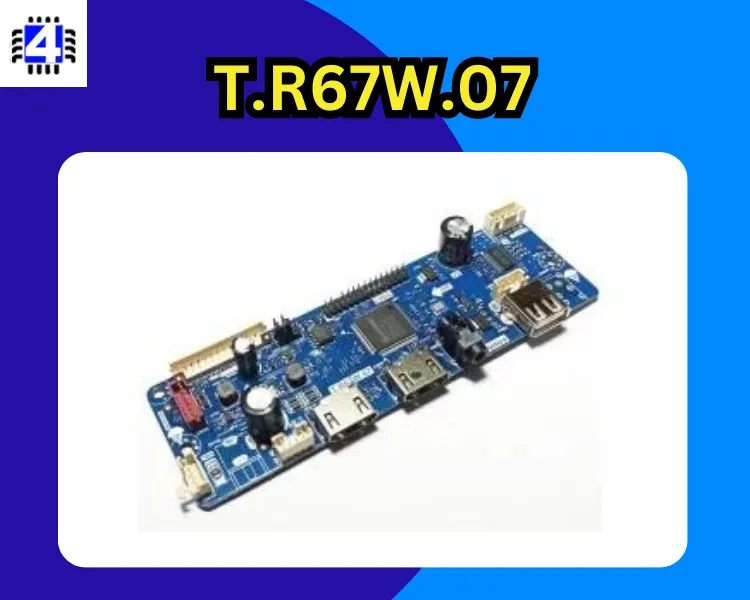

T.R67W.07 is a versatile jumper board equipped with multi-remote and resolution software. It features a Miracast function, which enables users to share their mobile screen with an LED TV. The board’s main chipset is the UTS6710W-X, and it supports display formats of up to 1920×1080 pixels. With aspect ratios of 4:3, 16:9, and 16:10, it offers flexibility in viewing options.
The T.R67W.07 jumper board can be controlled using an infrared (IR) remote control. It operates with a working input voltage of DC +12 Volt and has a maximum current of 2000mA without the panel. In standby mode, the motherboard consumes less than 0.2W of power. The USB port on the board supports a maximum current of 500mA, allowing for various peripheral devices to be connected.
Useful For You
T.R67W.07 Specification
| Basic Info | |
|---|---|
| Model No. | T.R67W.07 |
| Main Chipset | UTS6710W-X |
| Display Format | up to 1920×1080 |
| Aspect Ratio | 4:3, 16:9 & 16:10 |
| Tuner | NA |
| Sound | RDA3118E28 |
| SPI Memory | 25Q64 (8mb) |
| Multi Resolution Codes | |
| USB File Format | Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text) |
| IR Control | Yes (Controllable by Remote Control) |
| Electrical Parameters | |
| Working Input Voltage | DC +12 Volt |
| Maximum Current | 2000mA (Without Panel) |
| Standby Power | <0.2W (for the motherboard only) |
| Maximum Current for USB | 500mA |
T.R67W.07 Software Download
