Welcome to teckwiki.com! If you own a UHD LED TV from brands like Ergo, Akai, or Nordmende, you might have the T.MT5522S.82 motherboard inside. This post covers everything you need to know about this popular Android TV board, including its features, firmware downloads, and important tips. Let’s get started.

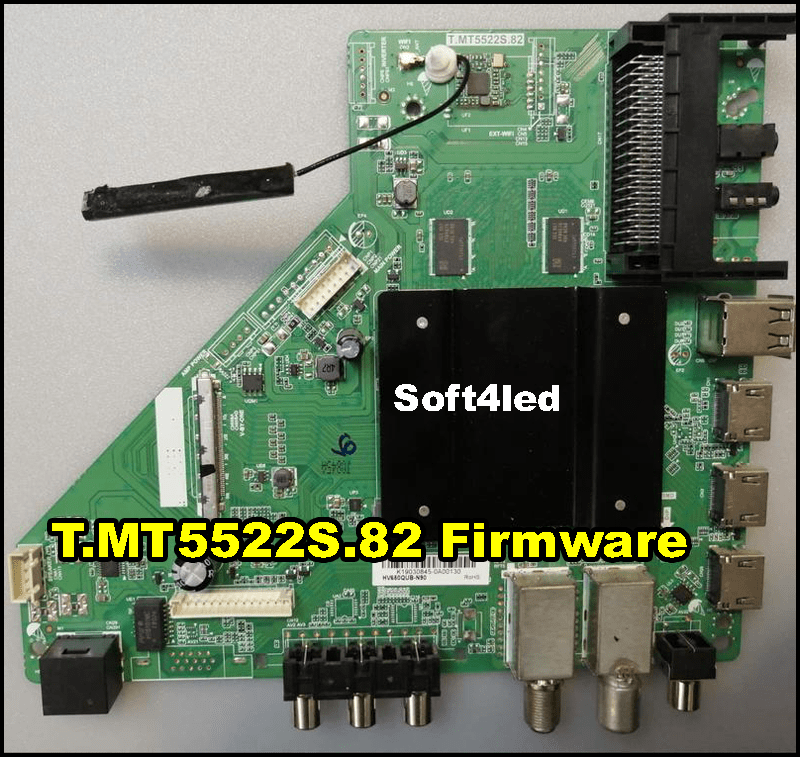

What is the T.MT5522S.82 Motherboard?
The T.MT5522S.82 is a smart Android motherboard built for 4K TVs. It delivers a crisp resolution of 3840×2160 and supports 60Hz and 120Hz screens. This board has built-in WiFi and works with both digital (DTV) and analog (ATV) signals. It’s a non-combo board, meaning it doesn’t include a power supply or inverter, but it’s packed with input options like USB, HDMI, and AV.
This motherboard is common in UHD LED TVs from brands like Akai, Nordmende, and Ergo. It’s known for its reliable performance and strong WiFi connection.
Key Specifications
Here’s a quick look at what the T.MT5522S.82 offers:
- Model: T.MT5522S.82
- Resolution: 3840×2160
- Aspect Ratio: 16:9
- OS: Android 7.1
- CPU: Quad-Core
- RAM: 1 GB
- ROM: 8 GB
- Audio Output: 20W (10W x 2)
- TV Systems: PAL, SECAM, NTSC
- WiFi: Built-in (WIFI-2-M06USA1)
- Inputs: 3 HDMI, 2 USB, 1 AV, 1 YPbPr (Mini), PC VGA, RJ45 Ethernet
- TV Tuner: ATV, DVB-S/S2, DVB-T/C/T2 × 2
- Power: 100V-240V, 50Hz/60Hz, 108W
- Firmware File: allupgrade_5522_8G_1G.pkg
- Firmware Type: USB upgradeable
These specs make it a solid choice for 4K TV performance.
Understanding T.MT5522S.82 Firmware
Firmware is the software that runs your TV’s motherboard. It tells the hardware how to work. Updating it can fix problems or improve how your TV runs. For the T.MT5522S.82, we’ve got firmware files ready for you to download:
- T.MT5522S.82-3840×2160-Akai-1G-8G
- T.MT5522S.82-3840×2160-Nordmende-1G-8G
- T.MT5522S.82-3840×2160-Starsat-1G-8G
Important Note: Installing firmware can be tricky. If you’re not sure what you’re doing, it might harm your TV. A wrong move could stop it from working. If you’re new to this, take it to a technician instead of trying it yourself.
Benefits of Installing Firmware
Updating your T.MT5522S.82 firmware has some clear upsides:
- Fixes a dead board and gets your TV running again.
- Lets you tweak settings like the remote or TV logo.
- Saves you cash compared to buying a new board.
- Cuts down wait time for a replacement.
- Helps you learn more about TV repairs.
Risks to Watch Out For
There are downsides to consider before you start:
- A mistake could put your board into standby mode permanently.
- The remote or logo might stop working as expected.
- Screen settings could shift and cause display issues.
Always double-check what you’re doing to avoid trouble.
Can You Upgrade the Android Version?
The T.MT5522S.82 runs Android 7.1. This is the final version from the manufacturer. You can’t upgrade to a newer Android version like 9 or 10. Updates only come if there’s a big software glitch. If your TV works fine, leave it as is.
What About EMMC Backup?
The board has an 8GB EMMC chip that stores data. You can back it up to a USB drive easily. But writing a new backup to the chip needs special tools and skills. You’ll have to connect the board with a JTAG programmer. Be careful here—only do this if the board’s software is the issue, not a hardware problem. Check the fault first.
Replacing the T.MT5522S.82 Board
If your board can’t be fixed, replace it. Try to find the exact T.MT5522S.82 model. If it’s not available, look for a board with the same specs. Pick one with Android 7.1, 1GB RAM, and 8GB ROM for the best match. If the backlight is the problem, you might just need to swap that part instead of the whole board.
Download T.MT5522S.82 Firmware Files
Ready to grab the firmware? Here are the files for different brands:
| Filename | Download |
|---|---|
| T.MT5522S.82-3840×2160-Akai-1G-8G | Download |
| T.MT5522S.82-3840×2160-Nordmende-1G-8G | Download |
| T.MT5522S.82-3840×2160-Starsat-1G-8G | Download |
These are USB-upgradeable files. Make sure you follow the instructions in the download package.
How to Install T.MT5522S.82 Firmware
People often ask how to update their TV’s firmware. Here’s a basic guide:
- Download the right firmware file for your TV brand.
- Copy it to a USB drive (formatted as FAT32).
- Plug the USB into your TV’s USB port.
- Go to the TV’s factory mode (Menu 1147).
- Select the USB update option and start the process.
Again, if you’re not comfortable with this, get help from a pro.
Is It Safe to Update Firmware?
Yes, but only if done right. A bad update can brick your TV. Use the correct file for your brand and follow each step carefully. If you’re unsure, don’t risk it—visit a technician.
Final Thoughts
The T.MT5522S.82 is a dependable motherboard for 4K TVs. Its firmware can solve issues or bring a dead board back to life, but it’s not without risks. Use this guide to decide what’s best for your TV. Need more help? Leave a comment below or consult a local repair shop. Thanks for visiting teckwiki.com!
