Are you a technician looking for firmware files for the T.MSD309.2B universal TV motherboard? You’re in the right spot! This post on teckwiki.com gives you free access to all available firmware files for this board. Plus, we’ll explain what this motherboard does and how to use the firmware correctly.
About the T.MSD309.2B Motherboard

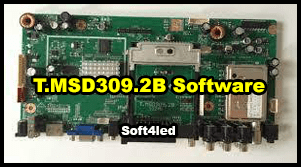

The T.MSD309.2B is a universal LCD/LED TV motherboard. It works with many TV brands and models. It supports Full HD resolution up to 1920×1080. This board is a combo design, meaning it has the power supply, ATV board, and LED backlight driver all in one piece. It also comes with plenty of ports like HDMI, AV, RF, VGA, and SCART.
Here are the general specifications:
- Brand/Mark: China Universal
- Model: T.MSD309.2B 10245, 11314
- Main Chip: MSD308, MSD309
- TV System: PAL/SECAM/NTSC PLAYBACK
- Product: LED TV
- Input Voltage: 12V DC
- Max Backlight Watt: 65W
- Resolution: Up to 1920×1080
- Flash Size: 4 MB
- Audio: 1517
- Tuner: DT68CT-2-E
- Service Menu: Use the “Source” button
Key Features
- Works with many LCD/LED panels
- Supports Full HD (1920×1080)
- Built-in power supply, ATV, and backlight driver
- Offers HDMI, AV, RF, VGA, and SCART ports
To make your TV work well, you need the right firmware. Let’s look at what’s available.
Firmware Files for T.MSD309.2B
Firmware is the software that runs your TV’s motherboard. It controls how the TV works and connects with its screen. Using the wrong firmware can cause problems, so picking the correct file matters.
Here’s the firmware file we have for you:
| Filename | Download |
|---|---|
| T.MSD309.2B 10245-Mitsai-22UM11-LTA216A701 | Download |
Right now, this is the only file listed. If your TV model or panel is different, check if it matches before using it. We’ll add more firmware files as they become available. Check back here or contact us if you need a specific version.
How to Pick the Right Firmware
Using the wrong firmware can mess up your TV. Follow these steps to choose wisely:
- Check your TV model: Look at the label on your TV or in the manual.
- Find your panel type: This is usually on the screen’s sticker.
- Match the resolution: Make sure the firmware supports your TV’s resolution (like 1920×1080).
For example, the file above works for the Mitsai 22UM11 with the LTA216A701 panel. If your setup doesn’t match, don’t install it yet. Reach out to us for help finding the right one.
How to Install Firmware on T.MSD309.2B
Installing firmware takes a few steps. Be careful, because mistakes can stop your TV from working. Here’s a quick guide:
- Download the file: Get the firmware from the link above.
- Unzip it: If it’s in a ZIP or RAR, extract the file.
- Put it on a USB: Use a USB drive set to FAT32 format. Copy the file there.
- Plug in the USB: Connect it to your TV’s USB port.
- Open the service menu: Press the “Source” button on your remote.
- Find the update option: Look for something like “Firmware Update.”
- Pick the file: Select the file from your USB.
- Start the update: Confirm and let it finish.
- Restart the TV: Turn it off and back on.
If you’re not sure, ask a technician to do it. A bad update can ruin your TV.
Fixing Common Firmware Problems
Sometimes, things go wrong after installing firmware. Here’s how to handle common issues:
- TV won’t start:
- Make sure you used the right file.
- Check the power and cables.
- Reset the TV if possible.
- Screen looks odd:
- Confirm the resolution matches your panel.
- Try reinstalling the firmware.
- Features don’t work:
- Double-check the file’s compatibility.
- Contact us for support.
Still stuck? Let us know, and we’ll help you out.
Why This Matters
The T.MSD309.2B is a solid motherboard for fixing or upgrading TVs. But without the right firmware, it won’t work properly. This post gives you the tools to get your TV running smoothly.
Save this page so you can find it later. Sign up for updates on teckwiki.com to hear about new firmware files and tech tips. Got questions? We’re here to assist!
