Hey there, tech enthusiasts! If you’re diving into the world of TV firmware upgrades, you’re in the right place. Today, we’re bringing you the latest firmware for the T.MS18VG.A1B LED TV Board. This post will cover everything you need to know about this versatile board and how you can download and install its firmware. Let’s get started!
What is T.MS18VG.A1B?

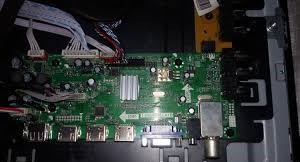

The T.MS18VG.A1B is an analog LCD/LED TV control board designed for the Asia Pacific and the Middle East markets. It supports LED panels ranging from 18 to 24 inches with resolutions up to 1920×1080. Whether you’re using it for a new TV build or upgrading an old one, this board has you covered.
Key Features
Multimedia Playback & Software Upgrades:
- The USB interface allows for seamless multimedia playback and easy software upgrades.
Multiple HDMI Ports:
- Equipped with HDMI 1.4 ports and HDCP 1.1 support, it ensures high-quality video and audio output.
Panel Compatibility:
- Compatible with both Non-HD and FHD LCD/LED panels, making it incredibly versatile.
Widescreen & Multi-Language Support:
- Enjoy widescreen viewing and multi-language options for a personalized experience.
AV Special Feature:
- The T.MS18VG.A1B comes with a unique AV feature, enhancing your viewing options.
General Specifications
- Board Make: China
- Board Model: T-MS18VG.A1B
- Main Chipset: Mstar MST6M182VG
- TV System: PAL/SECAM/NTSC
- Panel Interface: Single-channel or Dual-channel LVDS
- Key Button Functions: CH-/CH+/MENU/VOL-/VOL+/Source/Power
- Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, Earphone Out
- Audio O/P Power: 2 x 8 Watt (8 ohms)
- Panel Voltage: +5V/+12V DC (Default 12V)
- USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
- IR Control: Yes (Controllable by Remote Control)
Electrical Parameters
- Working Input Voltage: DC 12 Volt
- Maximum Current: 5000mA (Without Panel)
- Standby Power: <0.5W
- Maximum Current for USB: 500mA
- Flash IC: 4MB
- Firmware Type: Backup Dump
Important Notes
Before you proceed with downloading and installing the firmware, here are some crucial points to keep in mind:
- The provided software is a backup dump and should be written using a programming tool.
- Always check the mainboard version before installing the software.
- If you’re new to firmware updates or unsure about the process, take a moment to read our detailed guide on loading and installing firmware/dump files.
T.MS18VG.A1B Firmware Software Download Links
We’ve gathered the complete firmware collection for the T.MS18VG.A1B, available for free download. This collection ensures that you have access to the latest updates and features, keeping your TV’s performance top-notch.
- Download T.MS18VG.A1B 1366×768-LG-DUMP
- Download T.MS18VG.A1B 1366×768-SAMSUNG-SONY-DUMP
- Download T.MS18VG.A1B 1920×1080-RISUN-DUMP
Conclusion
Upgrading your TV’s firmware can significantly enhance its performance and unlock new features. With the T.MS18VG.A1B, you’re getting a robust control board that supports high-resolution panels, multiple languages, and various input/output options. Download the latest firmware today and take your viewing experience to the next level!
For any questions or troubleshooting tips, feel free to reach out in the comments below. Happy upgrading!
