Hey there, tech enthusiasts! If you’re on a mission to upgrade or troubleshoot your TV, you’re in the right place. Today, we’re diving into the world of the T.MS18VG.75B LED TV Board, a versatile and robust control board perfect for the Asia Pacific and Middle Eastern markets. Whether you have a 24-inch or 42-inch LED panel, this board’s got you covered with resolutions up to 1920×1080. So, let’s get into the nitty-gritty and explore what makes the T.MS18VG.75B a top pick for many!
What is T.MS18VG.75B?

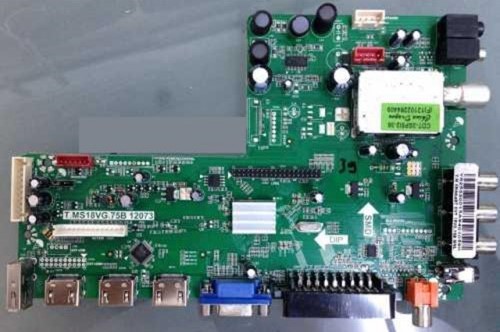

The T.MS18VG.75B is an analog LCD/LED TV Control Board, compatible with both Non-HD and FHD screens. It supports multimedia playback and software upgrades via its USB interface, making it a modern solution for your TV needs. With multiple HDMI ports and wide-screen support, this board ensures you get the best viewing experience.
General Specifications
Here’s a quick rundown of the T.MS18VG.75B’s impressive specs:
- Board Make: China
- Board Model: T-MS18VG-75B 12073
- Main Chipset: TSUMV59
- Tuner: CDT-3SP512-36
- TV System: PAL/SECAM/NTSC
- Panel Interface: Single or Dual-channel LVDS
- Key Button Functions: CH-/CH+/MENU/VOL-/VOL+/Source/Power
- Multi-Language Support: Yes
- Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, Earphone Out
- Audio Output Power: 2 x 8 Watt (8 ohms)
- Panel Voltage: +5V/+12V DC (Default 12V)
- USB Port: Yes (Supports Firmware Upgrade and Multimedia Playback)
- IR Control: Yes (Controllable via Remote Control)
Electrical Parameters
- Working Input Voltage: AC220 Volt
- Maximum Current: 5000mA (Without Panel)
- Standby Power: <0.5W
- Maximum Current for USB: 500mA
- Flash IC: 4MB
- Firmware Type: Backup Dump
- Service Menu: Menu 1147
Special Features
The T.MS18VG.75B board stands out for its multi-language option and wide-screen support. It’s designed to offer a seamless user experience with its easy-to-navigate interface and robust compatibility with various panel sizes and resolutions.
Important Note
Before diving into the download and installation, here are a few pointers:
- Check Your Mainboard: Ensure the T.MS18VG.75B is compatible with your TV.
- Backup Your Data: Always back up your current firmware before making any changes.
- Installation Knowledge: If you’re new to firmware updates, it’s crucial to understand the process. Incorrect installation can lead to system damage.
T.MS18VG.75B Firmware Software Download Links
Ready to upgrade? Download the firmware for T.MS18VG.75B and give your TV the boost it needs. Click the link below to start your download:
- Download T.MS18VG.75B 12073 AKAI-32-DUMP
- Download T.MS18VG.75B 12073 SONY-32-DUMP
- Download T.MS18VG.75B 12073 WANSA-FHD-DUMP
Feel free to reach out if you have any questions or need further assistance. Happy upgrading, and enjoy your enhanced TV experience with the T.MS18VG.75B board!
