Welcome to your ultimate guide for downloading the T.MS18VG.62B firmware software! Whether you’re a tech enthusiast or a professional technician, we’ve got everything you need to get your LED TV up and running smoothly. Dive into this comprehensive, fun, and friendly article to learn all about the T.MS18VG.62B LED TV board and how to download its firmware software. Let’s get started!

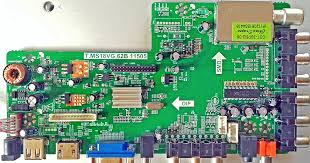

What is the T.MS18VG.62B LED TV Board?
The T.MS18VG.62B is a versatile analog LCD/LED TV control board designed for the Asia Pacific and Middle East markets. This board is perfect for LED panels ranging from 18 to 24 inches, supporting resolutions up to 1920×1080. With a multitude of features and robust compatibility, it’s a fantastic choice for anyone looking to enhance their TV experience.
Key Features of T.MS18VG.62B
- Panel Support: Suitable for 18 to 24-inch LED panels.
- Resolution: Supports up to 1920×1080, delivering crisp and clear visuals.
- USB Interface: Allows multimedia playback and software upgrades.
- HDMI Ports: Multiple HDMI ports supporting 1.4, with HDCP support 1.1.
- Compatibility: Works with both Non-HD and FHD LCD/LED panel screens.
- Widescreen Support: Yes, with multi-language options.
General Specifications
- Board Make: China
- Board Model: T-MS18VG.62B 11505
- Main Chipset: Mstar MST6M182VG
- TV System: PAL/SECAM/NTSC
- Panel Interface: Single-channel or Dual-channel LVDS
- Key Button Functions: CH-/CH+/MENU/VOL-/VOL+/Source/Power
- Multi-Language Support: Yes
- Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
- Audio Output Power: 2 x 8 Watt (8 ohms)
- Panel Voltage: +5V/+12V DC (Default 12V)
- USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
- IR Control: Yes (Controllable by Remote Control)
Electrical Parameters
- Working Input Voltage: DC 12 Volt
- Maximum Current: 5000mA (Without Panel)
- Standby Power: <0.5W
- Maximum Current for USB: 500mA
- Flash IC: 4MB
- Firmware Type: Backup Dump
T.MS18VG.62B Firmware Collection Free Download
We’ve compiled a collection of firmware files for the T.MS18VG.62B board, available for free download. These firmware files are backup dumps saved from working LED TVs, ensuring they are reliable and functional.
Important Note: The teckwiki Team is not responsible for any damage or loss resulting from uploading or downloading the firmware. Always proceed with caution and ensure you are familiar with the firmware installation process.
Download Links
- Download T.MS18VG.62B-Erisson 24EN60
- Download T.MS18VG.62B 11505-SUPRA STV-LC18250FL
- Download T.MS18VG.62B-BBK LEM1983
- Download T.MS18VG.62B-BBK LEM2238F
- Download T.MS18VG.62B-DNS M24AM2
- Download T.MS18VG.62B-ERISSON 22LEN60
- Download T.MS18VG.62B-ERISSON 23LEN60
- Download T.MS18VG.62B-1366X768-BBK-DUMP
- Download T.MS18VG.62B 11505-RUBIN RB-19S2U-M185BGE-P02
- Download T.MS18VG.62B-1366X768-ERISSON-DUMP
- Download T.MS18VG.62B-1366X768-EUROSTAR-DUMP
- Download T.MS18VG.62B-1366X768-HELIX-DUMP
- Download T.MS18VG.62B_1366X768_RUBIN_DUMP
- Download T.MS18VG.62B_1366X768_SHIVAKI_DUMP
- Download T.MS18VG.62B_1920X1080_ERISSON_DUMP
- Download T.MS18VG.62B 11505-RUBIN RB-24S2UF
- Download T.MS18VG.62B 11505-Polar 59LTV7004
- Download T.MS18VG.62B 11505-ERISSON 15LEN60-B156XW02 V.2
- Download T.MS18VG.62B 11505-Akai LEA-22E17P
- Download T.MS18VG.62B 11505-Akai LEA-22L14G
- Download T.MS18VG.62B 11505-BBK LEM1983-LM185WH2 (TL)(A1)
- Download T.MS18VG.62B 11505-DNS E16A90
- Download T.MS18VG.62B 11505-ERISSON 15LEN60
- Download T.MS18VG.62B 11505-POLAR 55LTV6005
- Download T.MS18VG.62B 11505-ERISSON 22LEN60-LS215AFTNO
- Download T.MS18VG.62B 11505-ERISSON 23LEN60
- Download T.MS18VG.62B 11505-ERISSON 24LEN60
- Download T.MS18VG.62B 11505-Erisson 23LEN60-LM230WF5
- Download T.MS18VG.62B 11505-Erisson 24EN60-LM240WF5
- Download T.MS18VG.62B 11505-Erisson 24EN60
- Download T.MS18VG.62B 11505-Izumi TLE19H750B
- Download T.MS18VG.62B_1920X1080_HCN_DUMP
Feel free to download the firmware files and get your LED TV working with the latest software. If you encounter any issues or need further assistance, don’t hesitate to reach out for support.
Conclusion
The T.MS18VG.62B LED TV board is a fantastic choice for enhancing your TV’s performance. With its wide range of features and compatibility, it’s designed to provide a superior viewing experience. By following our guide, you can easily download and install the latest firmware software, ensuring your TV stays up-to-date and runs smoothly. Happy viewing!
For more updates and detailed guides, keep visiting our website. Stay tech-savvy and enjoy your enhanced TV experience!
