Welcome to Teckwiki.com! This post is all about the T.HV510.81, a universal TV motherboard that powers smart TVs. Whether you’re a technician or just curious about your TV’s tech, you’ll find useful info here. We’re also sharing free firmware downloads for the T.HV510.81. Let’s dive in!
What is T.HV510.81?

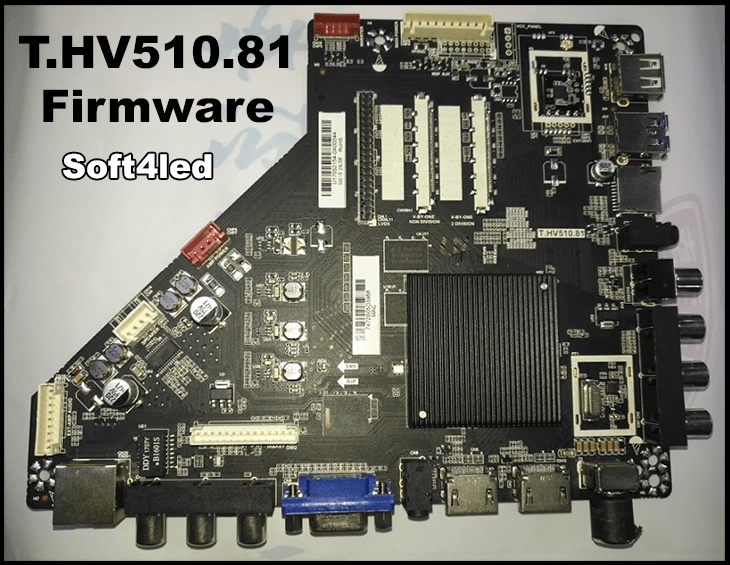

The T.HV510.81 is a universal TV motherboard built for LCD and LED TVs. It runs on Android, turning your TV into a smart device. With support for 4K resolution (3840×2160), it delivers sharp, clear visuals. This board works with TVs from 26 to 65 inches and offers multiple input options like HDMI, USB, and more. It’s a reliable choice for upgrading or repairing your TV.
Key Features of T.HV510.81
Here’s what makes the T.HV510.81 stand out:
- Android System: Run apps and browse the web on your TV.
- 4K Resolution: Enjoy ultra-high-definition picture quality.
- Multiple Inputs: Connect devices with HDMI, USB, and other ports.
- Strong Performance: Powered by a quad-core CPU and GPU.
- Sound Quality: Digital amplifier with 2x9W (24V) or 2x8W (12V) output.
Technical Specifications
Check out the full specs of the T.HV510.81:
- Brand/Make: LCD/LED 4K Driver Board
- Model: TP.HV510.81
- Supported Resolution: 3840×2160 UHD 4K
- Screen Format: 16:9
- Operating System: Android 4.4
- CPU: A53 1.2GHz Quad-Core
- GPU: Mali-450 432MHz
- RAM: 1GB
- ROM: 8GB
- Sound Output: 2x9W (8 ohms) at 24V, 2x8W (8 ohms) at 12V
- Screen Interface: LVDS single 8, double 8
- Screen Voltage: 12V and 5V
- Video System: PAL/SECAM/NTSC
- Power Input: 220-240V AC
- Power Consumption: 100W
- Standby Power: 0.5W
- Firmware Type: USB Updateable Firmware
What is Firmware?
Firmware is the software that controls your TV motherboard. It tells the hardware how to work and can fix bugs or improve features. Updating firmware keeps your TV running smoothly.
Free Download T.HV510.81 Firmware
We’re making it easy for you to get the latest firmware. Below are the files available for download:
| Filename | Download |
|---|---|
| T.HV510.81-3840X2160-MAGIC MG65JP6560GD | Download |
| T.HV510.81-3840X2160-GENERAL LIFE JP5505 | Download |
Make sure to pick the right file for your TV model. These are USB-updateable files, perfect for technicians or anyone wanting to update their TV.
How to Update T.HV510.81 Firmware
Updating your firmware is simple. Follow these steps:
- Download the File: Grab the correct firmware from the links above.
- Set Up a USB Drive: Format it to FAT32 and copy the firmware file onto it.
- Plug In: Insert the USB into your TV’s USB port.
- Open Settings: Go to the firmware update section in your TV’s menu.
- Start the Update: Select the file and let the update run.
- Wait: Don’t turn off the TV until it’s done. This takes a few minutes.
- Restart: Turn your TV off and on again to finish.
Tips for Success
- Use a reliable USB drive.
- Keep your TV plugged into a steady power source.
- If something goes wrong, double-check the file and try again.
Compatibility
The T.HV510.81 works with TVs from 26 to 65 inches that use LVDS screens. It supports screen voltages of 12V and 5V, decided by the power supply socket (PVCC). Check your TV’s specs to confirm it matches.
Frequently Asked Questions (FAQs)
Here are answers to questions you might have:
Q: Will T.HV510.81 work with my TV?
A: Compare your TV’s motherboard model and screen specs to the T.HV510.81. If they line up, it should work.
Q: Can I update the firmware on my own?
A: Yes, it’s a straightforward process. Just follow the steps above.
Q: What happens if the update doesn’t work?
A: Try a different USB drive or make sure you’ve got the right firmware file for your TV.
Q: Are these firmware files really free?
A: Yes, you can download them at no cost right here on Teckwiki.com.
Q: Why should I update my firmware?
A: Updates can improve performance, fix issues, or add new features to your TV.
Conclusion
The T.HV510.81 is a solid choice for anyone needing a universal TV motherboard. It brings 4K visuals, smart Android features, and easy connectivity to your TV. With our free firmware downloads, you can keep it running at its best. Need help? Reach out to us anytime.
Download Link:
