Hey there! Looking for the T56J11.2 firmware software in all resolutions? You’ve come to the right place! In this post, we’re offering you the complete set of firmware software for the T56J11.2 Universal board, absolutely free. Whether you’re updating your board or need specific resolutions, we’ve got you covered.

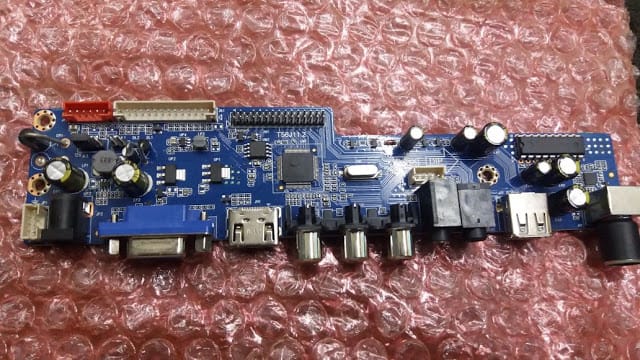

The T56J11.2 Universal board is a versatile and robust solution for your display needs, supporting resolutions up to 1920×1200 with aspect ratios of 4:3, 16:9, and 16:10. Powered by the TSUV56RJUL-Z1 chipset and branded under ES, this board measures 168.00 x 42.0 mm and features multi-language OSD, making it user-friendly. It supports a wide range of TV systems (PAL/SECAM/NTSC) and offers various input/output options including HDMI, VGA, AV, USB, RF TV interface, and earphone out.
The board also includes IR control for remote operation. With audio output power of 2 x 3 Watt (8 ohm) and a USB port that supports firmware upgrades and multimedia playback, it caters to diverse user needs. The board operates at DC +12V with a maximum current of 2000mA (without panel) and ensures low standby power consumption of less than 0.24W.
How to Upgrade Firmware
- Copy Firmware to USB: Copy the firmware file “SKR_100.bin” to a USB drive formatted as FAT32.
- Insert USB into TV: Plug the USB drive into the TV’s mainboard USB port.
- Turn on TV: Switch on the TV and wait. The IR indicator light will flash red and blue, then stop flashing.
- Unplug USB: Once the light stops flashing, unplug the USB drive. The upgrade process will take about 1 minute.
T56J11.2 Firmware Software Download Links
- Download T56J11.2_Multi Panel Software
- Download T56J11_1024X768_170601
- Download T56J11_1024X768_170828_LG
- Download T56J11_1024X768_170828_SAMSUNG
- Download T56J11_1024X768_170828_SONY
- Download T56J11_1280X1024_170601
- Download T56J11_1280X1024_170828_LG
- Download T56J11_1280X1024_170828_SAMSUNG
- Download T56J11_1280X1024_170828_SONY
- Download T56J11_1280X768_170601
- Download T56J11_1366X768_170601
- Download T56J11_1366X768_170812_RUBA
- Download T56J11_1366X768_170828_LG
- Download T56J11_1366X768_170828_SAMSUNG
- Download T56J11_1366X768_170828_SONY
- Download T56J11_1440X900_170601
- Download T56J11_1440X900_170828_SONY
- Download T56J11_1600X1024_170622
- Download T56J11_1600X1200_170601
- Download T56J11_1600X900_170601
- Download T56J11_1680X1050_170601
- Download T56J11_1680X1050_170828_LG
- Download T56J11_1680X1050_170828_SAMSUNG
- Download T56J11_1680X1050_170828_SONY
- Download T56J11_1920X1080_170812_RUBA
- Download T56J11_1920X1080_170828_LG
- Download T56J11_1920X1080_170828_SAMSUNG
- Download T56J11_1920X1080_170828_SONY
- Download T56J11_1920X1080_S8_170601
- Download T56J11_1920X1200_170601
- Download T56J11_1920X1200_170828_LG
- Download T56J11_1920X1200_170828_SAMSUNG
- Download T56J11_1920X1200_170828_SONY
- Download T56J11_852X480_170828_LG
- Download T56J11_852X480_170828_SONY
- Download T56J11_CLAA150XG_D8_XGA_170601
- Download T56J11_CLAA150XG_S8_XGA_170601
- Download T56J11_D8_640X480_170601
