Welcome to our guide on downloading the latest ST239-F20G firmware software! Whether you’re a tech enthusiast or just someone looking to get the most out of your LCD controller board, you’ve come to the right place. Let’s dive into the world of ST239-F20G and ensure your device runs smoothly with the latest firmware update.

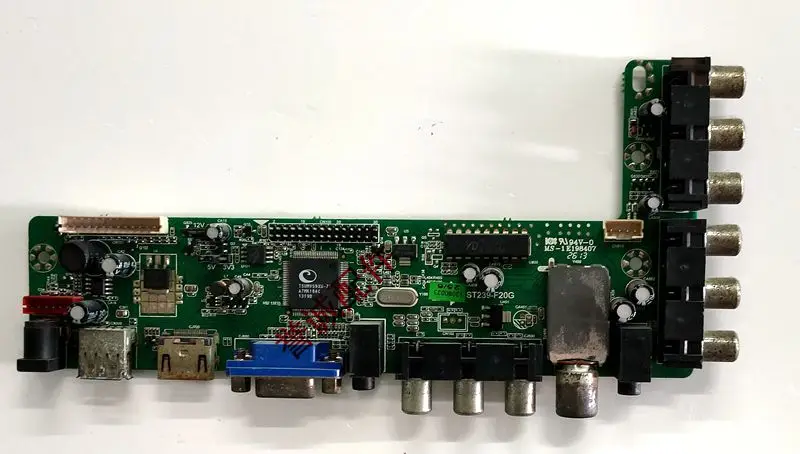

What is the ST239-F20G?
The ST239-F20G is a versatile and powerful LCD controller board designed primarily for the Asian market. It supports a FULL HD LCD panel and offers various input and output options, making it a great choice for a wide range of applications. Here’s a quick overview of its key features:
Model No.: ST239-F20G
Main Chipset: TSUMV59XU-Z1
Display Format: Up to 1920×1080
SPI Memory: 4MB
Sound IC: 1517P
Firmware Type: USB Bootable
General Specifications
The ST239-F20G is packed with features to ensure top-notch performance:
- TV System: PAL/SECAM/NTSC
- Panel Interface: Single channel or Dual channel LVDS
- Key Button Functions: CH-/CH+/MENU/VOL-/VOL+/Source/Power
- Multi-Language OSD: Yes
- Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, Earphone Out
- Audio O/P Power: 2 x 3 Watt (8 ohm)
- Panel Voltage: +3.3V/+5V/+12V DC (jumper cap setting)
- USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
- USB File Format: Supports audio, video, picture, and text formats
- IR Control: Yes (Controllable by Remote Control)
Electrical Parameters
For those interested in the technical specs, here are the electrical details:
- Working Input Voltage: DC +12 Volt
- Maximum Current: 2000mA (Without Panel)
- Standby Power: <0.2W (for the motherboard only)
- Maximum Current for USB: 500mA
How to Upgrade the Firmware
Updating your firmware is a breeze! Just follow these simple steps:
- Prepare a USB Drive: Ensure your USB drive is empty.
- Copy the Firmware: Download and copy the appropriate resolution program (MERGE59.bin) to your USB drive based on your screen size.
- Connect the USB: Insert the USB drive into the mainboard.
- Power Up: Connect the keyboard and TV mainboard, then connect the power supply.
- Wait for the Flashing Light: If the keyboard light flashes, the program is writing. Once it turns green, the update is complete. If not, repeat the process.
Factory Service Mode
If you need to access the factory service mode, use the following commands:
- Menu 1147
- Input + 2580
Important Note: This firmware is a backup dump and can be written using a programming tool. Always ensure you know what you’re doing before attempting to install the software. The Kazmi Elecom Team is not responsible for any damage or loss resulting from firmware installation. If you’re new to this, it’s recommended to read the guidelines thoroughly before proceeding.
ST239-F20G Firmware Software Download Links
Ready to update? Click the link below to download the latest ST239-F20G firmware for all resolutions:
- Download ST239-F20G V59 1280×1024-USB
- Download ST239-F20G V59 1366×768-USB
- Download ST239-F20G V59 1440×900-USB
- Download ST239-F20G V59 1600×900-USB
- Download ST239-F20G V59 1680×1050-USB
- Download ST239-F20G V59 1920×1080-USB
- Download ST239-F20G V59 1920×1200-USB
- Download ST239-F20G V59 ALL-RESOLUTIONS
