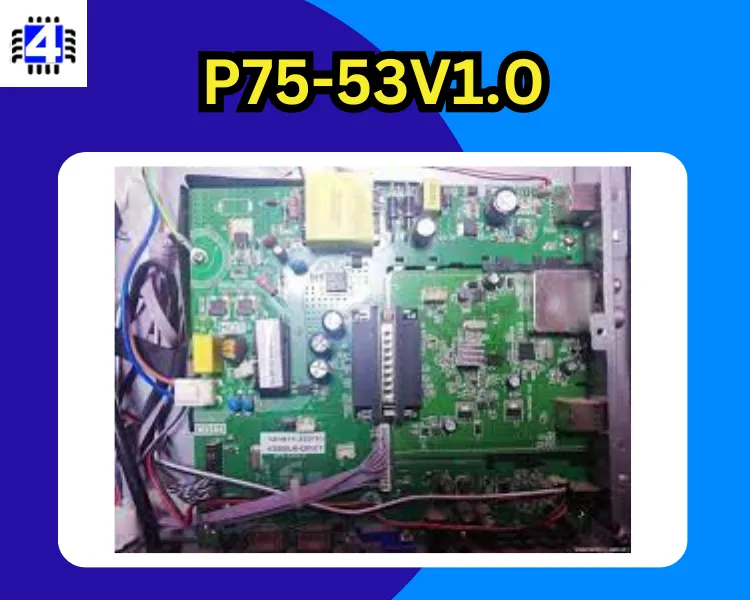

The P75-53V1.0 is a versatile analog LCD/LED TV Control Board designed specifically for the Asia Pacific and Middle East markets. It offers support for LED panels ranging from 24 inches to 42 inches, with a maximum resolution of 1920×1080, delivering high-quality visuals. Equipped with a USB interface, it enables convenient multimedia playback and software upgrades. Additionally, the P75-53V1.0 features multiple HDMI ports that support version 1.4 and HDCP version 1.1, ensuring compatibility with a variety of devices.
Whether you have non-HD or FHD LCD/LED panel screens, this control board can seamlessly integrate with them. The P75-53V1.0 also boasts a widescreen-supported design and provides users with a multi-language option, catering to diverse preferences. Notably, it offers a unique dual AV extendable feature, further expanding its functionality. For those interested, the software collection for the P75-53V1.0 is available for free download.
Useful For You
P75-53V1.0 Specification
| Parameter | Value |
|---|---|
| Board Make | China |
| Board Model | P75-53V1.0 |
| Main Chipset | |
| TV System | PAL/SECAM/NTSC |
| Panel Interface | Single-channel or Dual-channel LVDS |
| Key Button Functions | CH-/CH+/MENU/VOL-/VOL+Souce/Power |
| Multi-Language | Yes |
| Input/Output Ports | HDMI, VGA, AV, USB, RF TV interface, Earphone Out |
| Audio O/P Power | 2 x 8 Watt (8 ohms) |
| Panel Voltage | +5V/+12V DC (Default 12V) |
| USB Port | Yes (Firmware Upgrade and Multimedia Playback Support) |
| IR Control | Yes (Controllable by Remote Control) |
| Electrical Parameters: | |
| Working Input Voltage | AC220 Volt |
| Maximum Current | 5000mA (Without Panel) |
| Standby Power | <0.5W |
| Maximum Current for USB | 500mA |
| Flash IC | 4MB |
| Firmware Type | Backup Dump |
Download P75-53V1.0 Firmware
