Welcome to our comprehensive blog post, dedicated to providing you with the latest firmware upgrade for the P75-3463GSXV6.0 LCD/LED TV Main board. As technology continues to evolve, firmware updates play a crucial role in enhancing the performance, functionality, and overall user experience of electronic devices. Whether you’re an avid tech enthusiast, a professional in the field, or a curious user seeking to optimize your TV’s capabilities, this post is designed to assist you in accessing and installing the latest firmware for your P75-3463GSXV6.0 model.

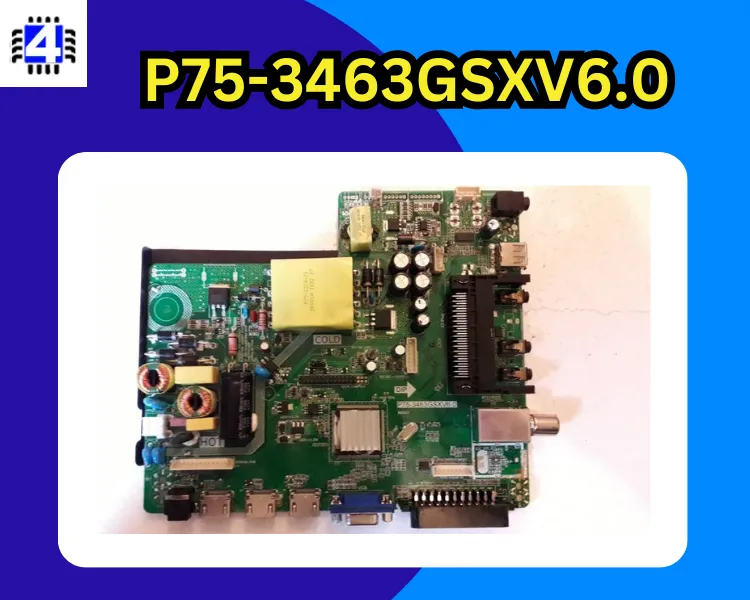

Introducing the P75-3463GSXV6.0, an analog LCD/LED TV Control Board designed for the Asia Pacific and Middle East markets. This versatile board supports LED panels ranging from 32 inches to 43 inches, with a maximum resolution of 1920×1080. With its USB interface, you can enjoy multimedia playback and easily upgrade the software.
The P75-3463GSXV6.0 features multiple HDMI ports with support for version 1.4 and HDCP version 1.1. It is compatible with both Non-HD and FHD LCD/LED panel screens. Enjoy the widescreen experience with the P75-3463GSXV6.0, which also offers a multi-language option. Notably, this model boasts the special feature of Dual AV extendability. Download the P75-3463GSXV6.0 software collection for free below.
Useful For You
P75-3463GSXV6.0 Specification
| Parameter | Details |
|---|---|
| Board Make | China |
| Board Model | P75-3463GSXV6.0 |
| Main Chipset | MSD3463GSA |
| TV System | PAL/SECAM/NTSC |
| Panel Interface | Single-channel or Dual-channel LVDS |
| Key Button Functions | CH-/CH+/MENU/VOL-/VOL+/Source/Power |
| Multi-Language | Yes |
| Input/Output Ports | HDMI, VGA, AV, USB, RF TV interface, Earphone Out |
| Audio O/P Power | 2 x 8 Watt (8 ohms) |
| Panel Voltage | +5V/+12V DC (Default 12V) |
| Backlight Volt | 58-62V |
| Backlight Current | 300 mA |
| Backlight Power | 65W |
| USB Port | Yes (Firmware Upgrade and Multimedia Playback Support) |
| IR Control | Yes (Controllable by Remote Control) |
| Working Input Voltage | AC220 Volt |
| Maximum Current | 5000mA (Without Panel) |
| Standby Power | <0.5W |
| Maximum Current for USB | 500mA |
| Flash IC | 8MB |
| Firmware Type | Backup Dump |
Download P75-3463GSXV6.0 Firmware
