Hey there, tech enthusiasts! If you’re looking to give your MS35535-ZC01-01 LED TV board a fresh boost, you’ve come to the right place. We’ve got the latest and greatest firmware for the MS35535-ZC01-01, and it’s ready for download! So, let’s dive into the details of this awesome upgrade.
What is the MS35535-ZC01-01?

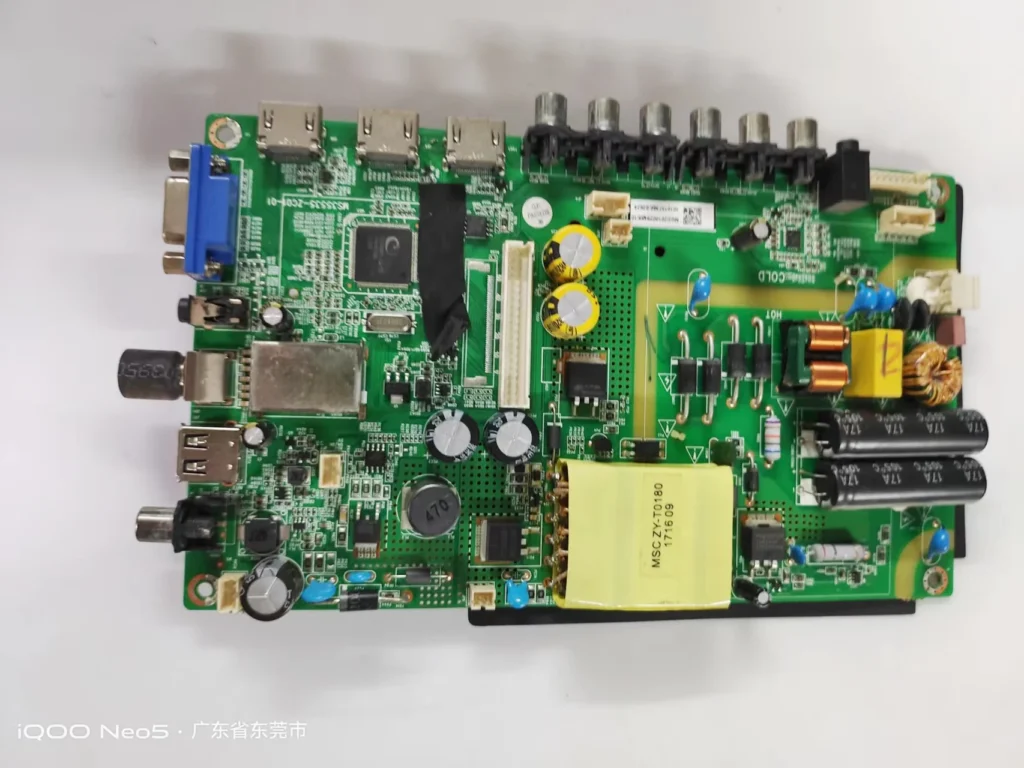

The MS35535-ZC01-01 is not just any TV control board—it’s a powerhouse designed for your LED TV! Suitable for the Asia Pacific and Middle East markets, this board is compatible with 32-inch to 42-inch LED panels. With a resolution of up to 1920×1080, it ensures you get crystal-clear visuals every time.
Key Features and Specs
Here’s why you’ll love the MS35535-ZC01-01:
- Versatile Compatibility: Supports both Non-HD and Full HD LCD/LED screens.
- Multi-Language Support: Enjoy a variety of language options for a more personalized experience.
- Dual AV Ports: Connect multiple devices effortlessly.
- USB Interface: Perfect for multimedia playback and firmware upgrades.
- HDMI Ports: Multiple ports supporting HDMI 1.4 and HDCP 1.1.
General Specifications
- Board Make: China
- Board Model: MS35535-ZC01-01
- Main Chipset: TSUMV59
- TV System: PAL/SECAM/NTSC
- Panel Interface: Single-channel or Dual-channel LVDS
- Key Button Functions: CH-/CH+/MENU/VOL-/VOL+/Source/Power
- Audio O/P Power: 2 x 8 Watt (8 ohms)
- Panel Voltage: +5V/+12V DC (Default 12V)
- USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
- IR Control: Yes (Controllable by Remote Control)
Electrical Parameters
- Working Input Voltage: AC220 Volt
- Maximum Current: 5000mA (Without Panel)
- Standby Power: <0.5W
- Maximum Current for USB: 500mA
- Flash IC: 4MB
- Firmware Type: Backup Dump
MS35535-ZC01-01 Firmware Software Download Links
Ready to upgrade? Here’s your chance to grab the latest MS35535-ZC01-01 firmware:
- Download MS35535-ZC01-01 1366×768 ORIENT
- Download MS35535-ZC01-01 1920×1080 HAIER
- Download MS35535-ZC01-01 1920×1080 ORIENT
Important Notes
- Backup Your Data: Always ensure you have a backup before proceeding with any firmware update.
- Check Compatibility: Verify that the firmware matches your board’s specifications to avoid any mishaps.
- Expert Assistance: If you’re new to firmware updates, it’s a good idea to consult a professional or refer to detailed guides before you begin.
The firmware provided is a backup dump that can be used with a programming tool. While we strive to provide accurate and reliable firmware, Kazmi Elecom Team isn’t responsible for any damage or loss resulting from the installation process. Proceed with caution and make sure you’re confident in your steps!
That’s it for now! Happy upgrading, and enjoy your enhanced TV experience. If you have any questions or need further assistance, feel free to drop a comment below.
