Welcome to the latest and greatest download hub for your MS0V590-ZC01-01 LED TV Board! Whether you’re upgrading your firmware or just diving into some techy fun, we’ve got you covered. Let’s unravel the magic behind this versatile board and get you all set with the freshest firmware for 2024!
What’s the MS0V590-ZC01-01 All About?

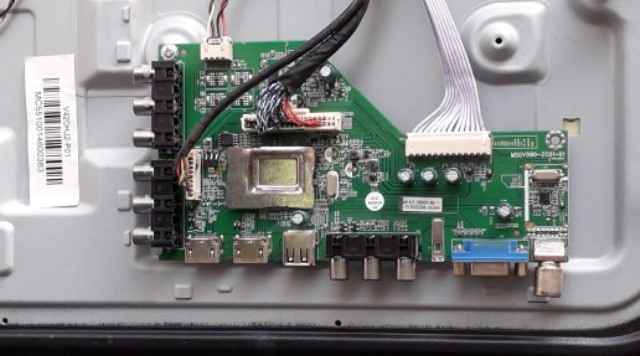

The MS0V590-ZC01-01 is not just any LED TV control board; it’s your gateway to enhanced viewing experiences! Designed for the Asia Pacific and Middle Eastern markets, this board supports LCD/LED panels ranging from 24 inches to 42 inches, with resolutions up to 1920×1080. Sounds like a powerhouse, right?
Here’s a quick rundown of what makes this board a star in the world of TV technology:
- Versatile Panel Support: From non-HD to Full HD, this board handles it all with ease.
- Multiple HDMI Ports: Equipped with HDMI 1.4 and HDCP 1.1 support, it’s ready for all your high-definition needs.
- USB Interface: Play multimedia files and upgrade software directly from your USB drive—how convenient!
- Dual AV Feature: Get more flexibility with dual AV inputs for connecting multiple devices.
General Specifications
Let’s dive into the specs that make the MS0V590-ZC01-01 a tech marvel:
- Board Make: China
- Model: MS0V591-ZC01-01
- Main Chipset: TSUMV59XUS-Z1
- TV System Compatibility: PAL/SECAM/NTSC
- Panel Interface: Single-channel or Dual-channel LVDS
- Control Functions: Channel up/down, Menu, Volume control, Source, and Power
- Multi-Language Support: Yes
- Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
- Audio Output Power: 2 x 8 Watt (8 ohms)
- Panel Voltage: +5V/+12V DC (Default 12V)
- USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
- IR Control: Yes (Remote Control Enabled)
Electrical Parameters
Get the lowdown on the electrical specs to keep your board running smoothly:
- Working Input Voltage: AC220 Volt
- Maximum Current: 5000mA (Without Panel)
- Standby Power: <0.5W
- Maximum Current for USB: 500mA
- Flash IC: 4MB
- Tuner: R842/18675
- Factory Code: Input/Source 2580
- Firmware Type: Backup Dump
Download Your Firmware
Ready to upgrade or refresh your MS0V590-ZC01-01? Click the link below to access the latest firmware collection. Remember, this is a backup dump and should be used with the appropriate programming tool. Always check your mainboard before installing new software to avoid any hiccups.
- Download MS0V590-ZC01-01 HAIER-40
- Download MS0V590-ZC01-01 HAIER-42
- Download MS0V590-ZC01-01 HAIER-43
- Download MS0V590-ZC01-01 ORIENT-40
- Download MS0V590-ZC01-01 ORIENT-43
- Download MS0V590-ZC01-01 ORIENT-50
Important Notes
- Backup First: Always backup your current firmware before making any updates.
- Check Compatibility: Ensure the firmware matches your specific board model and version.
- Handle with Care: If you’re new to firmware updates, take some time to learn the process to avoid mishaps.
Wrapping Up
The MS0V590-ZC01-01 is a fantastic board offering a plethora of features and flexibility. With this latest firmware, you’re all set to take full advantage of its capabilities. If you have any questions or need further assistance, feel free to reach out!
Happy updating, and enjoy your enhanced viewing experience!
