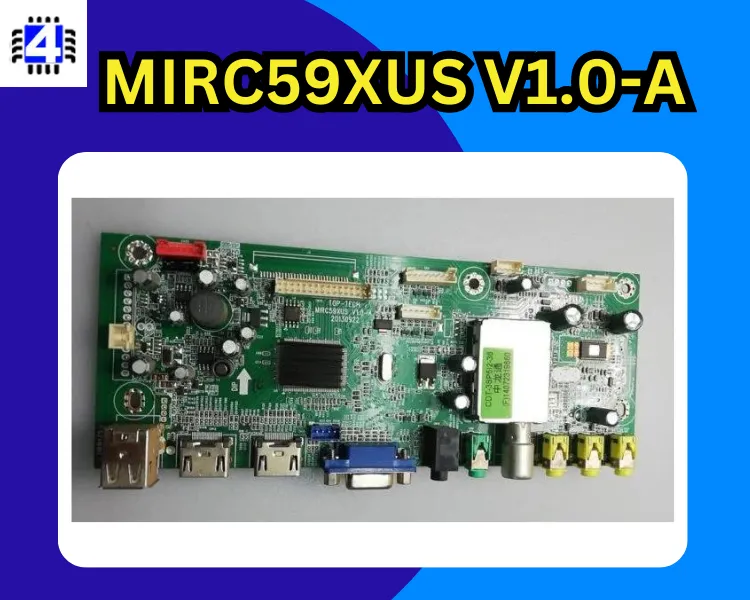

The MIRC59XUS V1.0-A model is equipped with the TSUMV59XUS-Z1 chipset and CDT-3SP512-36 tuner. It supports various display formats, including up to 1920×1080 resolution, and offers different aspect ratios such as 4:3, 16:9, and 16:10. The TV system compatibility includes PAL, SECAM, and NTSC. The panel interface supports either a single channel or dual channel LVDS connection.
The key button functions on this model include CH-/CH+, MENU, VOL-/VOL+, Source, and Power. It offers a multi-language on-screen display (OSD) for ease of use. In terms of input/output ports, it provides HDMI, VGA, AV, USB, RF TV interface, and Earphone Out connections. The audio output power is 2 x 3 Watt (8 ohm), providing decent sound quality.
Useful For You
MIRC59XUS V1.0-A Specificatoin
| Model No. | MIRC59XUS V1.0-A |
| Main Chipset | TSUMV59XUS-Z1 |
| Tuner | CDT-3SP512-36 |
| Display Format | up to 1920×1080 |
| Aspect Ratio | 4:3, 16:9 & 16:10 |
| TV System | PAL/SECAM/NTSC |
| Panel Interface | Single channel or Dual channel LVDS |
| Key Button Functions | CH-/CH+/MENU/VOL-/VOL+Souce/Power |
| Multi-Language OSD | Yes |
| Input/Output Ports | HDMI, VGA, AV, USB, RF TV interface and Earphone Out |
| Audio O/P Power | 2 x 3 Watt (8 ohm) |
| Panel Voltage | +3.3V/+5V/+12V DC (jumping cap setting) |
| USB Port | Yes (Firmware Upgrade and Multimedia Playback Support) |
| USB File Format | Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text) |
| IR Control | Yes (Controllable by Remote Control) |
| Electrical Parameters | |
| Working Input Voltage | DC +12 Volt |
| Maximum Current | 2000mA (Without Panel) |
| Standby Power | <0.2W (for the motherboard only) |
| Maximum Current for USB | 500mA |
| Factory Setting Mode | Menu+1147 Or Input+2580 |
