Welcome to teckwiki! If you’re on the lookout for the JUG7.820.1283 firmware, you’re in the right place. Whether you’re a technician, a DIY enthusiast, or just someone looking to fix their TV, we’ve got you covered. Our guide will help you understand everything you need to know about the JUG7.820.1283 LED TV board and provide you with the firmware download links you need. Let’s dive in!

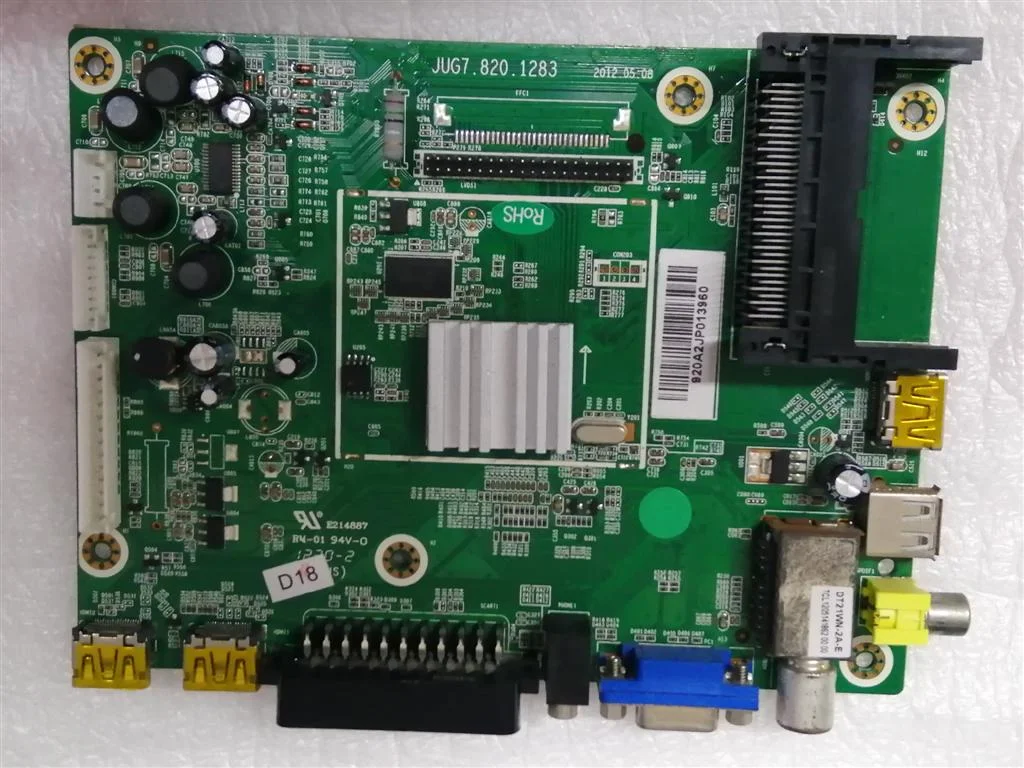

What is JUG7.820.1283 LED TV Board?
The JUG7.820.1283 is a versatile ATV and DTV Driver Motherboard designed specifically for LCD/LED TVs. It’s a popular choice in the Asia Pacific and the Middle East markets due to its robust features and compatibility with Full HD LCD/LED Panel Screens.
Key Features:
- Non-Combo Board: This board requires a separate main power module and LED Backlight Inverter Circuit module. However, it comes with an integrated ATV Card.
- Connectivity: The board boasts a range of connectivity options including HDMI input, USB interface, PC input, Component Input, TV, and Scart. This makes it compatible with various devices and peripherals.
- USB Interface: The USB port is multifunctional, allowing for firmware updates and multimedia playback.
- Earphone Output: It supports earphone output for private listening.
General Specifications:
- Brand/Mark: Universal Board
- Model: JUG7.820.1283
- Chassis: LS18
- Main Chip: MST721DU-LF
- Product: LCD TV
- LED Backlight: mA
- Flash IC: 25Q32
- Sound Chip: [Not Specified]
- Tuner IC: ATV
- Screen Supported: 29-49 inch
- Resolution: Up to 1920×1080
- Panel Voltage: 12V
- Power Input: 12V DC
Service Code for Access: Press Source/Input on your remote.
JUG7.820.1283 Firmware Software Download Links
- Download JUG7.820.1283 CHANGHONG EC47F4N-DUMP
- Download JUG7.820.1283 CHANGHONG-29-DUMP
- Download JUG7.820.1283 CROWN-29-DUMP
- Download JUG7.820.1283 GRUNDIG-32-DUMP
- Download JUG7.820.1283 NPG-32-DUMP
- Download JUG7.820.1283 SABA-46-DUMP
Step-by-Step Guide to Installing Firmware
- Preparation:
- Ensure your TV is unplugged.
- Gather the necessary tools: a USB drive formatted to FAT32, and the firmware file downloaded from the link above.
- Copy Firmware:
- Download the firmware file and copy it to the root directory of the USB drive.
- Insert USB Drive:
- Insert the USB drive into the USB port on the JUG7.820.1283 board.
- Access Firmware Update Mode:
- Turn on your TV and press the
Source/Inputbutton on your remote to access the service menu.
- Turn on your TV and press the
- Start Update:
- Follow the on-screen instructions to start the firmware update process. Do not turn off your TV or remove the USB drive during the update.
- Complete Update:
- Once the update is complete, your TV will restart automatically. Remove the USB drive after the update.
Troubleshooting
- No Power: Ensure all connections are secure and the power supply is functioning correctly.
- Update Fails: Double-check the firmware file and USB drive formatting. Try a different USB drive if necessary.
- Screen Issues: Make sure the panel voltage matches your TV’s specifications.
Conclusion
Updating your JUG7.820.1283 LED TV board firmware can significantly improve your TV’s performance and compatibility with various devices. We hope this guide makes the process straightforward and stress-free. If you have any questions or run into issues, feel free to leave a comment below. Happy updating!
