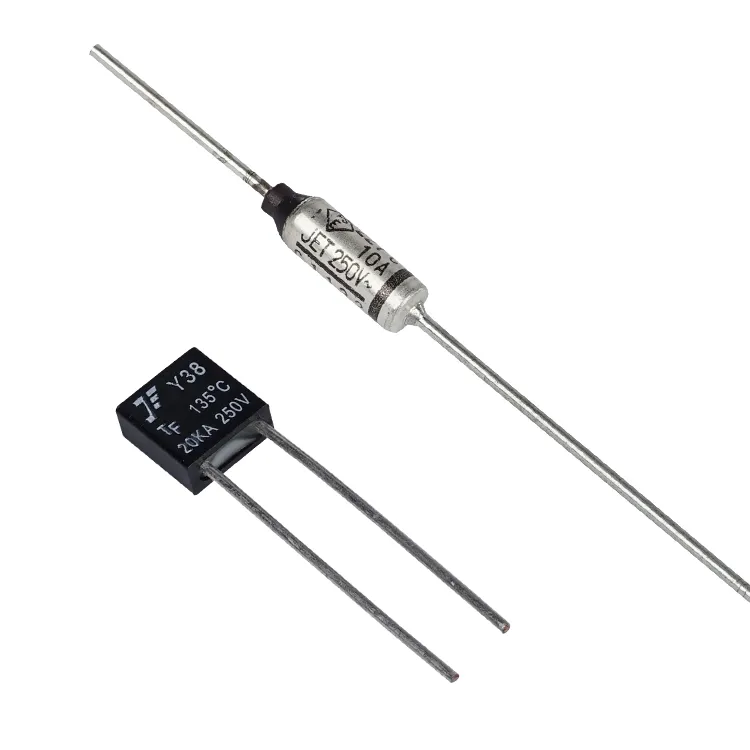

Hi My Friend, In this new tutorial guide we will be talking about the Thermal Fuse, Like What it is and Why it is used in Appliances, and will give you a tutorial on How to Test a Thermal Fuse With A Multimeter. We will teach you the two methods that are very simple, everyone can do that easily.
A thermal fuse is a safety device that shuts off the power to an appliance if it overheats. When this happens, the fuse will melt, breaking the circuit and preventing any current from passing through. However, before you can determine whether or not you need to replace your thermal fuse, you’ll need to know how to read it with a multimeter.
You can use an Analog Multimeter or the Digital Multimeter also, but we will prefer the Digital multimeter.
Tools Required
To test a thermal fuse with a multimeter, you’ll need:
-A multimeter
-A thermal fuse
-Something to test the thermal fuse on (e.g. a hair dryer)
Safety Precautions
If you are going to test a thermal fuse with a multimeter, there are some safety precautions that you need to take.
- First, always disconnect the power to the appliance before testing any part of it.
- Be sure to wear gloves and protective eyewear when working with electrical components.
- Make sure that the thermal fuse is not hot to the touch. If it is, wait for it to cool down before continuing.
- Disconnect the thermal fuse from any power source. Once it is disconnected, you can safely test it with your multimeter.
- Finally, always follow the manufacturer’s instructions for testing and replacing parts.
How to Test a Thermal Fuse With A Multimeter?
You can test a Fuse by two methods with a multimeter. First, you can use the resistance of the fuse, and in the second method you can run the Continuity Test, so we are gonna cover both methods below. Here is a step-by-step guide on how to test a thermal fuse with a multimeter:
- First, Turn off the appliance
- Remove or Separate the fuse from the device
- Next, set your multimeter to the ohms setting and place the probes on either end of the thermal fuse.
- If the reading on the multimeter is infinite, this means the thermal fuse is open and needs to be replaced.
- If the reading on the multimeter is zero, this means the thermal fuse is closed and functioning properly.
Continuity Test:
- Set the continuity setting on the digital multimeter.
- Each time, attach the leads to the thermal fuse leads.
- Once connected, listen for a sound coming from the meter.
- If it beeps, the fuse is in a good condition
- If there is no beep, the fuse has blown and may require replacement.
FAQ
What is a Thermal Fuse?
A thermal fuse is a safety device that is designed to protect an electrical circuit from overheating. The thermal fuse is a thin strip of material that contains a metal conductor. When the conductor heats up, the strip expands and breaks the circuit. This prevents the flow of electricity and protects the circuit from damage.
How a Thermal Fuse Works
A thermal fuse is a safety device that cuts off power to an appliance when it starts to overheat. This prevents the appliance from catching fire. Thermal fuses are found in hair dryers, coffee makers, irons, toasters, and other appliances that use heat.
What are the Different Types of Thermal Fuses?
Thermal fuses come in a variety of shapes and sizes, each designed for a specific purpose. The most common type of thermal fuse is the disk type, which is used in most household appliances. These fuses are made of a thin strip of metal that is wrapped around a disk of heat-sensitive material. When the temperature rises above the melting point of the metal, the fuse will open and break the circuit.
Another type of thermal fuse is the tube type, which is often used in electronic devices. These fuses are made of a thin tube of heat-sensitive material that is filled with a conductive liquid. When the temperature rises above the melting point of the tube, the liquid will expand and break the circuit.
Finally, there are also thermal switches, which are similar to thermal fuses but have a switch that can be manually opened and closed. These switches are often used in industrial applications where it is important to be able to control the flow of electricity.
What can be wrong with a thermal fuse?
If your thermal fuse is not working properly, it can cause a number of problems. For one, your appliance may not start up. Additionally, if the thermal fuse is not working properly, it could overheat and cause a fire.
Conclusion
In this post, we have had a detailed talk about the thermal fuse like What it is, Where it is used, and why. And we have also provided you with the tutorial on How to Test a Thermal Fuse with a Multimeter, further, we have told you the two methods to test the fuse in the first method we used the ohms function, and in the second method, we used the continuity test method.
