10 Best Oscilloscopes For Hobbyists – Review & Buying Guide

Oscilloscopes are the best device for measuring the waveform of a signal. It can be used to find problems in electronic devices and learn more about how they work.  It ranges from simple to complex, so there is something for every price range.

The truth is that you can’t really do much in the way of electronics without an oscilloscope. These tools are essential for debugging and troubleshooting electrical circuits, as well as monitoring signals from all sorts of sources.

In this article, you will get an idea about the 10 oscilloscope which is perfect for the hobbyist. This a detailed and informative guide to the best oscilloscopes for hobbyists on the market today.

This guide is designed to help anyone who wants more information about this type of product, whether they’re just considering purchasing one or are in the process of selecting one for their next project.

Best Oscilloscopes For Hobbyists

If you’re looking for the best oscilloscope for hobbyists, you’ve come to the right place. In this detailed guide, we’ll take a look at the top 10 best oscilloscopes on the market today. We’ll also discuss what factors you should consider before making your purchase.

Buying a good oscilloscope for a hobbyist is not an easy task. It’s worth spending time to find the best model for your needs. So, come on let’s dive into it.

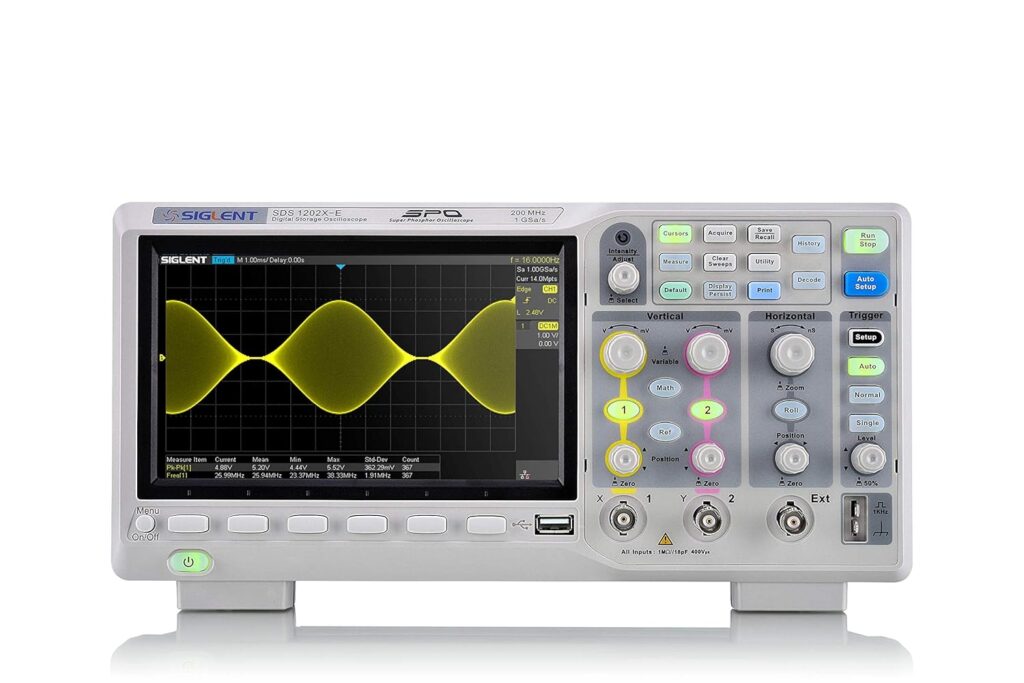

1. Siglent SDS1202X-E 200

Siglent SDS1202X-E 200
Siglent SDS1202X-E 200
Brand NameSiglent Technologies
Display Type7 inch TFT-LCD (800×480)
Included ComponentsSDS1202X-E, Quick Start, Two 200Mhz Passive probes, One USB Cable
Item Weight5.51 pounds
Power Source TypeCorded-electric

This Siglent SDS1202X-E 200 is perfect for the electrician, hobbyist, or electronics engineer. It has a crystal-clear screen and a large screen so you can see the details in your captured image.

It also has an HDMI output to easily connect to your computer and view your live captures as well as store them to make it easier to save and share with coworkers.

Designed to provide high-quality measurements and fast data acquisition, the Siglent SDS1202X-E signal analyzer that offers a wide range of features at an affordable price.

The system noise is also much lower than similar products in the industry, so you can be sure you’re getting the best quality for your money. It has a waveform capture rate of 400,000 frames/sec (sequence mode), which ensures your data will never be too slow coming in for the measurements you need.

Decoding configuration including IIC, SPI, UART, CAN, LIN. History waveform recording and sequential triggering enable extended waveform captures from external devices such as A/D converters or encoders with stream output.

Best Features

  • IRecord Length up to 14 Mpts
  • Sampling Rate up to 1 gsa/use
  • 7-inch Display
  • Serial Bus Decoding Function

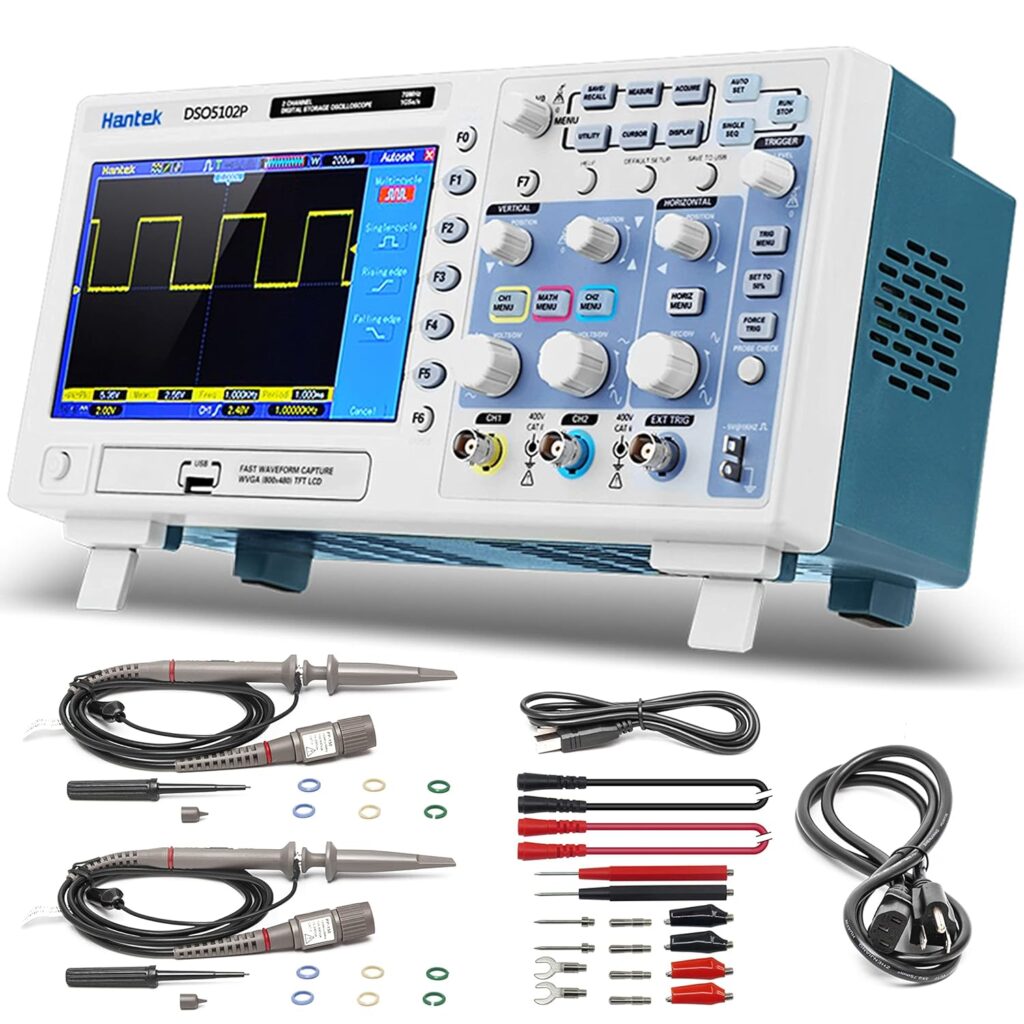

2. Hantek Dsop Digital Storage Oscilloscope

Hantek Dsop Digital Storage Oscilloscope
Hantek Dsop Digital Storage Oscilloscope
Brand NameHantek
Bandwidth100MHz
Real-Time Sample1GSa/s

The Hantek DSO5102P offers all the standard waveforms for testing, but also has some pretty cool features like a USB port to update software and connect to your computer as well as a remote control. This oscilloscope is great for any electronics worker looking for an affordable, versatile piece of equipment.

 It can store more than 1000 waveforms information and can upgrade the system through the USB port, support plug-and-play USB storage devices, and communicate with the computer and remote control through USB.

With 32 different kinds of waveform parameters automatic measurement, with FFT standard, provide a manual/tracking function; it is designed to meet the demands of electronics workers.

This digital storage oscilloscope is designed for educational, hobby, and home applications. It has all of the functions needed to analyze any alternating current signal, including sine waves, square waves, sawtooth waves, and triangular waves.

Best Features

  • Remote Controlled
  •  32 Different Kinds of Waveform
  • Portable to Use
  • Multi-function Button Design

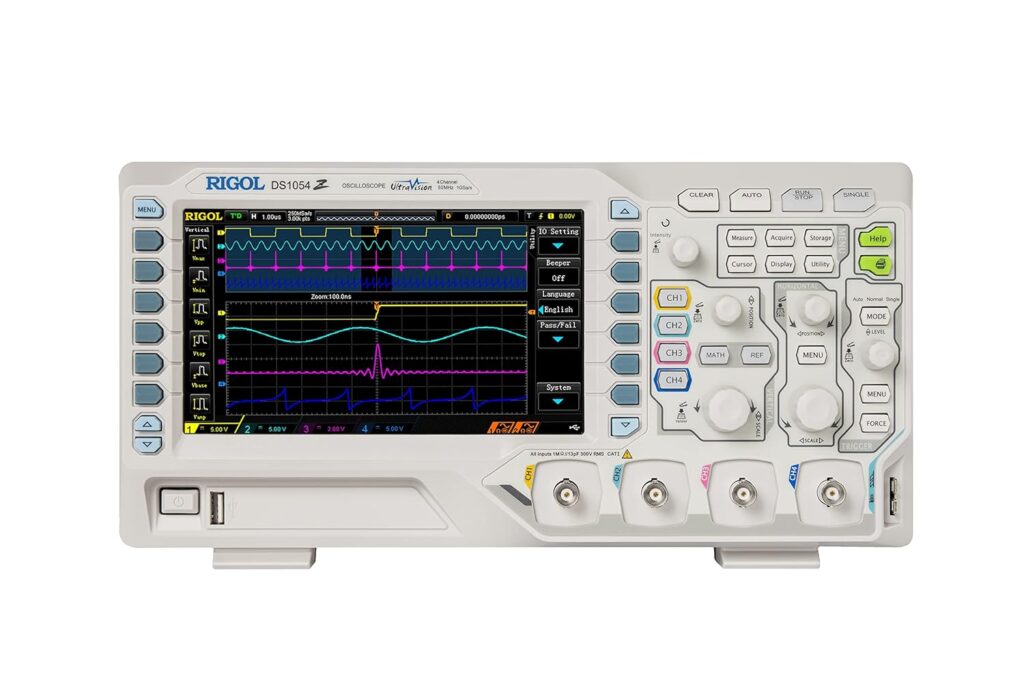

3. Rigol DS1054Z Digital Oscilloscope

Rigol DS1054Z Digital Oscilloscope
Rigol DS1054Z Digital Oscilloscope
Body StyleBenchtop
Brand NameRigol
ColorGrey
Item Weight6.60 pounds

The Rigol DS1054Z is the most popular oscilloscope on the market. It has 24 Mpts of memory, as well as 1 GSa/sec sampling.

This unit also comes with a software bundle called BND-MSO/DS1000Z that includes an external trigger input, DC coupling, and a built-in logic analyzer. The ultra-wide screen (F5) is great for viewing a long trace without scrolling or zooming in and out.

 The DS1054Z includes an UltraVision mode which includes deep memory of 24 Mpts. The DS1054Z also includes a FREE software bundle BND-MSO/DS1000Z that is built into the unit.

 It supports four analog channels with 16 digital channels available on the DS1000Z Plus that has been upgraded with the RPL1116 probe kit. This includes 70 MHz, 50 MHz, and 25 MSa/s which are the fastest bandwidth in their category.

Best Features

  • Up to 30,000 wfms/s Capture Rate
  • Built-in Dual-channel 25 MHz Function
  • FREE Software Bundle
  •  4 Channels

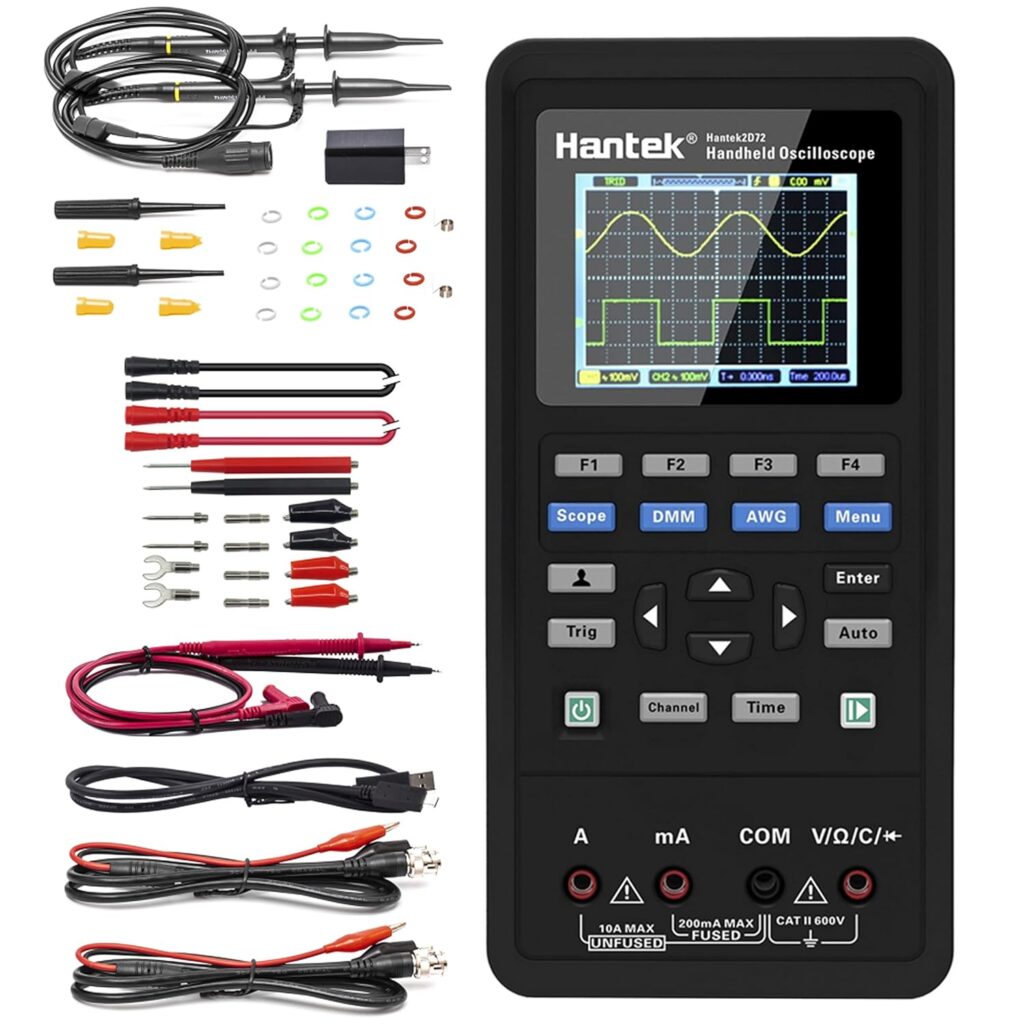

4. Hantek 2D72 Handheld Oscilloscope

Hantek 2D72 Handheld Oscilloscope
Hantek 2D72 Handheld Oscilloscope
BrandHantek
Power SourceBattery Powered
Style70MHz 2CH+DMM+AFG
Measurement TypeVoltmeter, Multimeter

The Hantek 2D72 is the multi-function tester with the highest performance on the market! With 70MHz Waveform Generator and 3 in 1 Multifunction Tester, this device is a must-have for any electronics worker. With high accuracy and the most complete facilities for electronic measurements, this device is ideal for the electronics field.

 The 250MS/s sampling rate and 70MHZ bandwidth enable you to measure the shapes of signals and capture waveforms accurately. This product has many convenient features, making it an excellent choice for electronics workers.

This is a very handy, inexpensive multimeter for electronics workers, hobbyists, and beginners. It is specially designed to be used in the electronics field and it’s durable enough for everyday use.

It also features a large-capacity Lithium battery and ultra-low power consumption, which can work for a full day or on standby for as long as two months after every recharging of two hours. The device comes with a Type C charging interface, which is convenient and handy for users.

Best Features

  •  Convenient to Use
  •  Easy to Carry
  • Large-capacity Lithium Battery
  • 1 Year Warranty

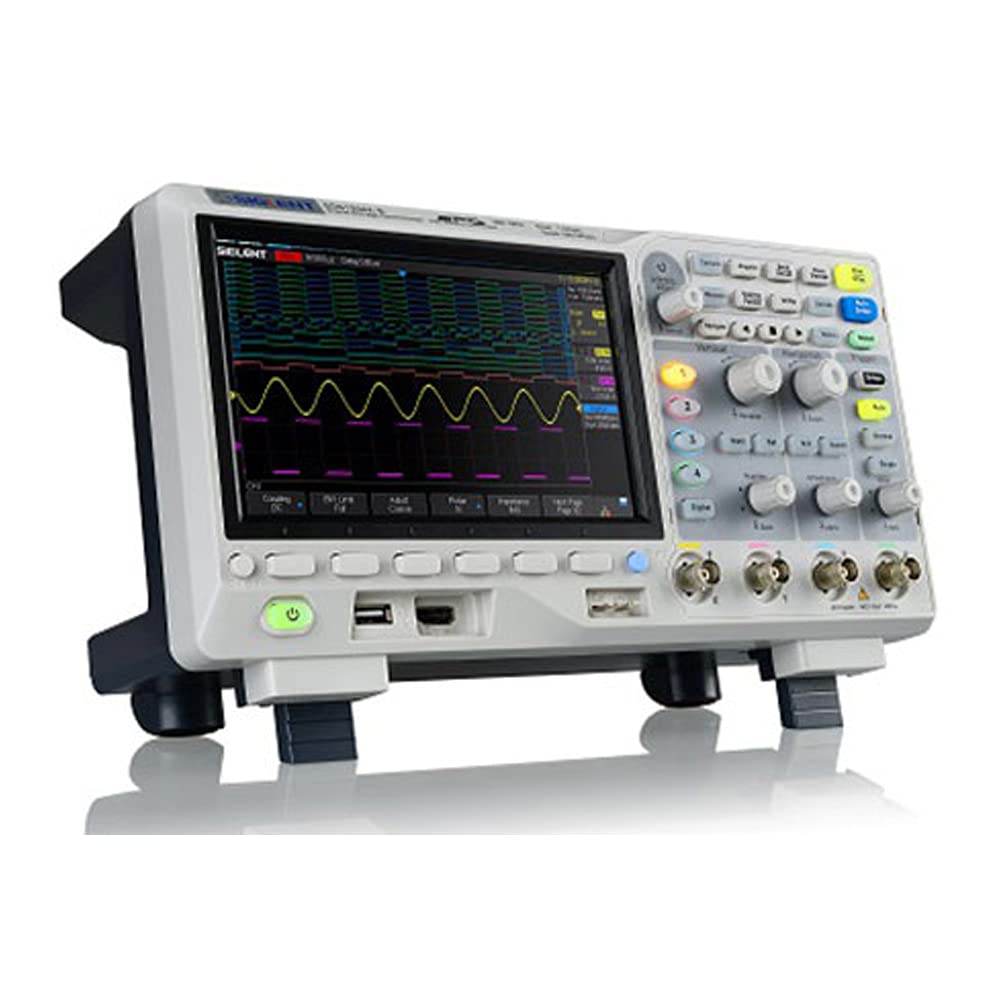

5. Siglent SDS1104X-E

Siglent SDS1104X-E
Siglent SDS1104X-E
BrandSiglent Technologies
ColorGrey
ShapeRectangular
Capacity3 Kilograms
Product Dimensions5.12″D x 12.2″W x 5.91″H

Siglent SDS1104X-E is the perfect choice for those looking to purchase a 4-channel oscilloscope that provides exceptional performance in a compact and affordable package. Comes with a built-in logic analyzer, so you can easily test digital circuits and signals while monitoring their state changes with high sensitivity and low jitter.

This oscilloscope, while being of similar specs in the lower-end class, has features not found in other models in the same class. With better triggering modes and waveform recording, this new model is sure to be an example of SIGLENT’s quality workmanship.

Additionally, SIGLENT’s latest oscilloscope offering supports multiple powerful triggering modes including serial bus triggering. Serial bus decoding for IIC, SPI, UART, CAN, LIN bus types is included.

The system noise is also lower than products in the industry, which means it maintains a stable signal display even when high-speed signals are displayed.

Best Features

  • 16 Digital Channels
  • Front-panel Response
  • WiFi Control

6. HANMATEK DOS1102 Digital Oscilloscope

HANMATEK DOS1102 Digital Oscilloscope
HANMATEK DOS1102 Digital Oscilloscope
Screen Size7 Inches
BrandAuroland
Special FeaturePortable
Connectivity Technologyusb
Display TypeLCD

HANMATEK DOS1102 Digital Oscilloscope is a high-performance, multifunctional digital oscilloscope which can be used for teaching, training, and experimenting. . The 7-inch TFT LCD screen, 65535 colors, resolution of 800 × 480 pixels, supports cursor measurement mode, which can measure △ V, the time difference (△ T), time difference and △ V four modes of the automatic cursor.

With automatic range function support horizontal, vertical tracking waveform mode, probe attenuation multiplier function. The user can look at two different signals at once thanks to the built-in dual channel function, which helps with faster analysis.

 It features an automatic range function, supports horizontal, vertical, and single waveform / multi-waveform tracking modes, as well as built-in probe attenuation which can range from 1X to 1000X.

With a weight of only 1.1 kg, it will be easy to carry and use while traveling, making it perfect for any electronics worker looking to save time and improve efficiency in their work. Use this device at home or on the go with its ultra-portable size!

Best Features

  • 7-inch TFT Screen
  •  6-bit Hardware Frequency Meter
  • Support LABVIEW Communication
  •  Ultra-portable

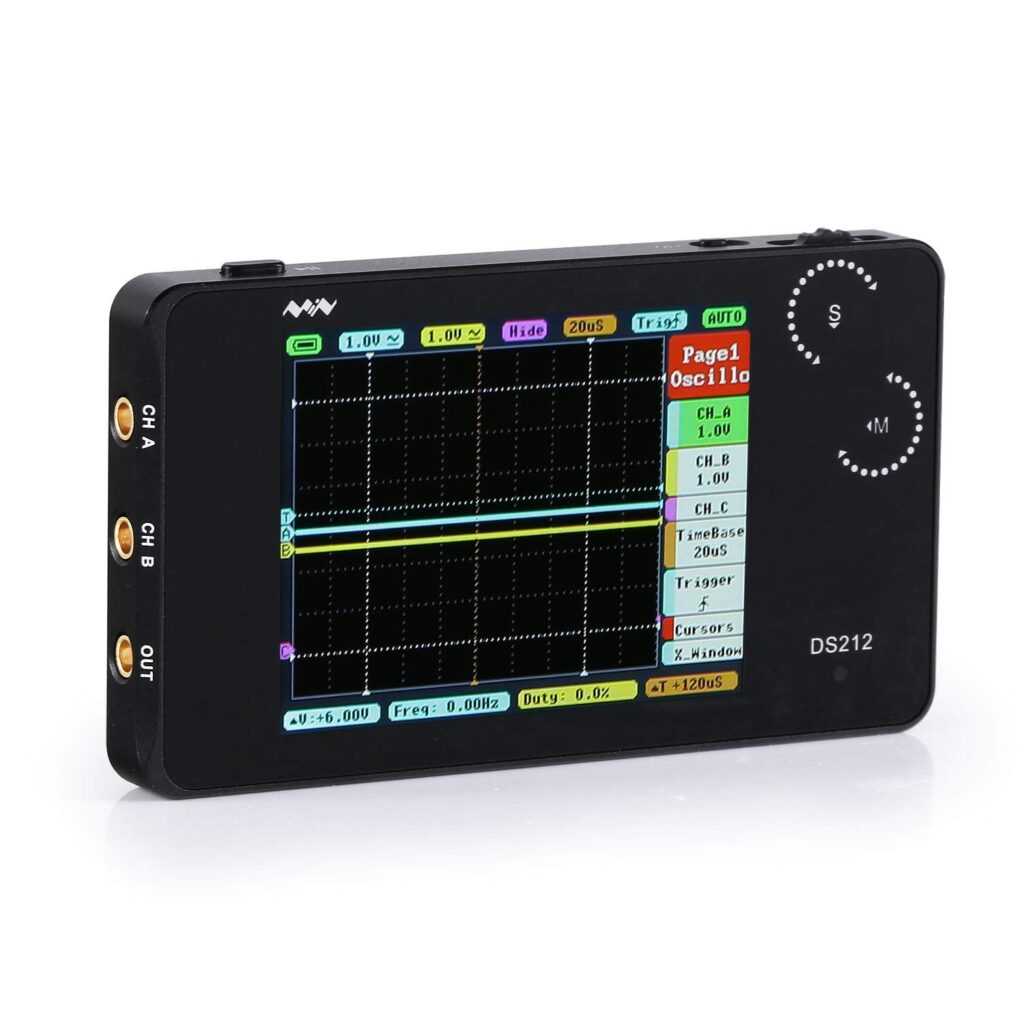

7. SainSmart DS212

SainSmart DS212
SainSmart DS212
Brand NameSainSmart
ColorBlack
Ean4897075396529

The DS212 is a powerful and easy-to-use digital storage oscilloscope. It’s designed for electronics professionals, engineers and hobbyists. It has an intuitive interface with modes for precise vertical and horizontal measurements as well as trigger threshold control. Data can be saved and transferred quickly using 8MB of onboard memory.

This professional Oscilloscope has all of the features you need to diagnose problems in a circuit, or even to create them using its signal generator. A variety of intuitive interfaces make it easy to use, whether you prefer taps and swipes or traditional knobs and buttons.

This SainSmart has a color display that shows the AC current and waveforms, so you can select the appropriate waveform for any measurement. The small form factor conveniently fits in your pocket, so it’s always ready when you need it. It has a built-in battery that lasts up to 10 hours on a single charge.

Best Features

  • Portable and Compact
  • 8 MB Storage Space
  • 2-channel Functionality

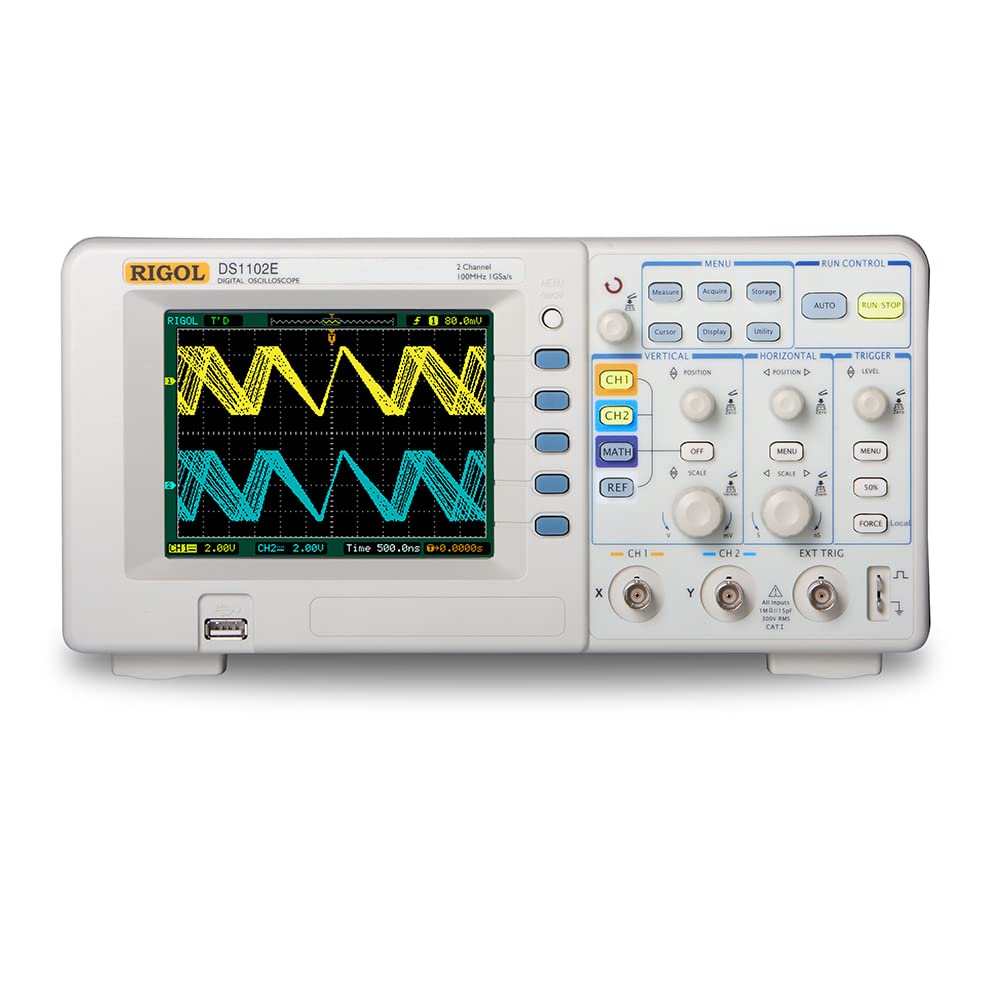

8. Rigol DS1102E

Rigol DS1102E
Rigol DS1102E
Body StyleBenchtop
Brand NameRigol
Colorwhite
Item Weight5.29 pound

This Rigol DS1102E is a digital oscilloscope with a wide range of features. The device has two analog channels and 100MHz bandwidth which allows for capturing high-speed signals with ease.

The probe sensitivity can be adjusted to meet various measurement needs, and the 5.6-inch TFT LCD display offers clear waveform observation. Rigol DS1102E also has multiple trigger types: Edge, Pulse Width, Video, Slope, Alternate, Pattern, and Duration.

This is an absolute value scope with enhanced trigger features and the ability to measure 22 wave parameters. It’s perfect for electronics technicians, audio and video engineers, etc.

 It is designed for use in research, design, manufacture, and education applications. This device has the ability to capture 50,000 samples per second and up to 2GB of memory.

Best Features

  • Waveform Record and Replay Function
  • Fine Delayed Scan Function
  • Built-in FFT
  • 1 GSa/sec Sampling Rat

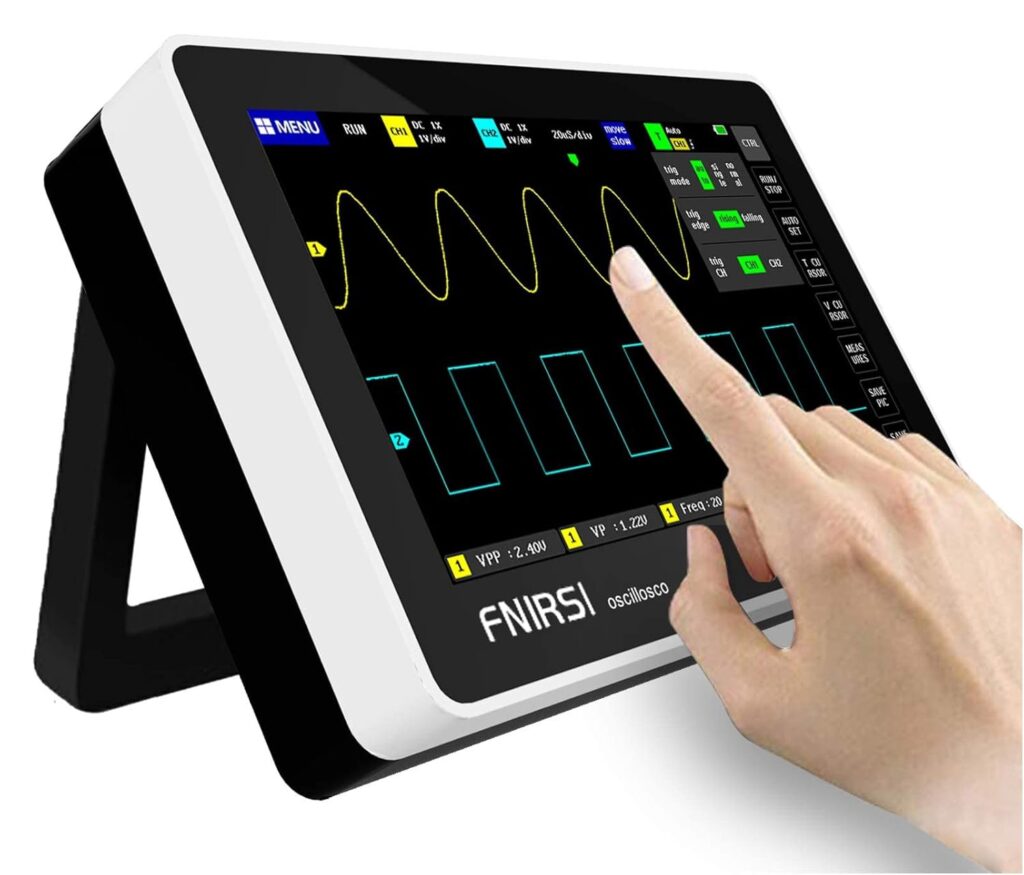

9. Aiteme Tablet Oscilloscope

Aiteme Tablet Oscilloscope
Aiteme Tablet Oscilloscope
Brand NameAiteme
Number of Items1
Part NumberW-15
UNSPSC Code41000000

Aiteme Tablet Oscilloscope is compatible with all electronic devices and can be used for a variety of purposes. This multifunctional product offers you the latest technology in the electronics industry and is the perfect choice for your work.

With this Tablet Oscilloscope, it is easier to identify the root cause of electronic problems. This is a good tool for the rapid analysis of power and signal quality.

 It is equipped with a one-click automatic recording feature and can store up to 1,000 sets of waveform data in its built-in storage space. The powerful waveforms manager enables you to browse through, view detailed information about, and scroll through 1000 plots on the screen at once.

This USB oscilloscope is a professional instrument with compact and practical measurements, which is suitable for the measurement of single-phase motors, audio amplifiers, and other voltage waves. It can be connected to a computer via a USB interface and share its screenshots with the computer for secondary analysis.

Best Features

  • High Measurement Range
  • Memory Compression Technology
  • One-button Automatic Device

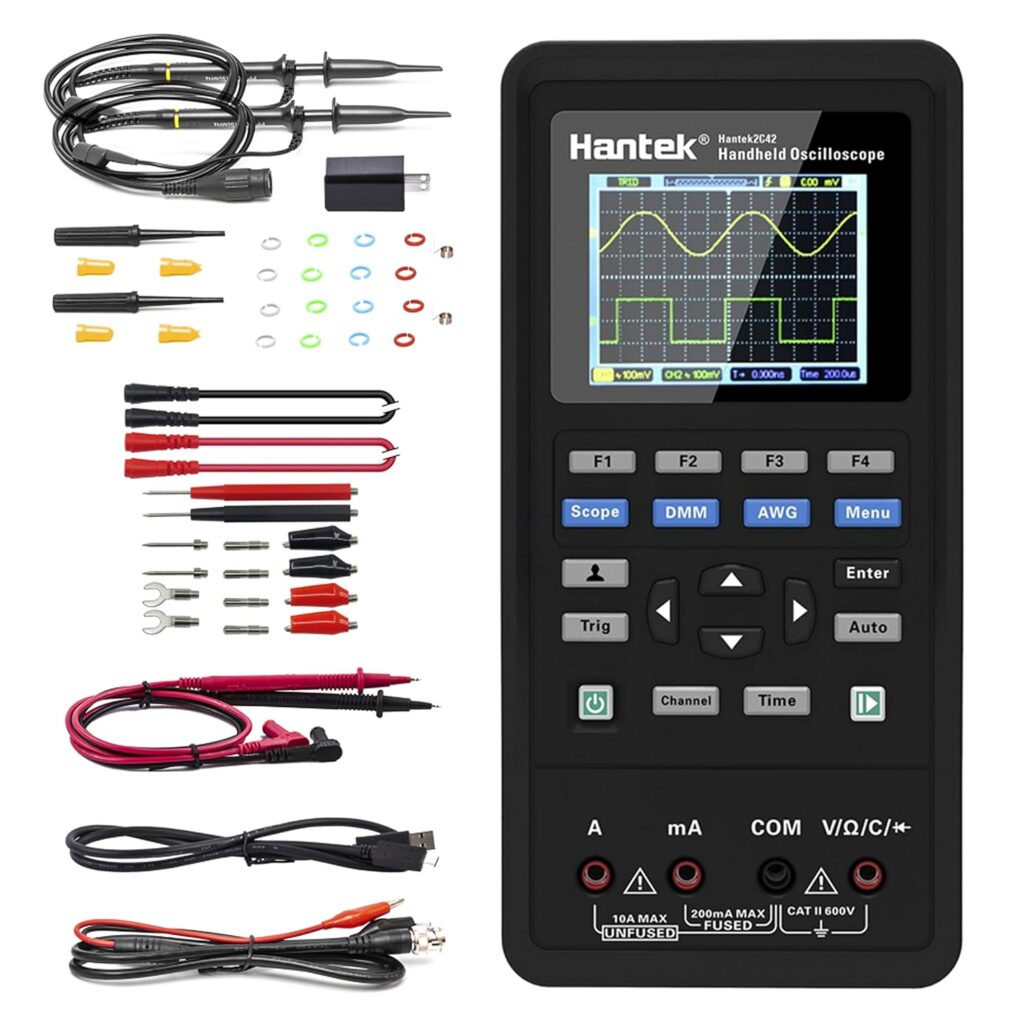

10. Hantek 2C42

Hantek 2C42
Hantek 2C42
BrandHantek
Power SourceBattery Powered
Style40MHz 2CH+DMM
ColorClear
Measurement TypeOscilloscope, Multimeter

The Hantek 2C42 is a digital oscilloscope that includes a multimeter, making it a perfect tool for electronics professionals. The 2-channel design offers 250MSa/s single channel and 125MSa/s dual-channel sampling rates, which is perfect for testing signals with low frequency.

The 18650 replaceable lithium battery power system provides the Hantek 2C42 with a long working time. Type C data transfer/charging interface allows you to use the Hantek 2C42 as a power bank for your cell phone or tablet.

Industrial digital multimeter with a large LCD display and anti-overload capability, providing clear and accurate measurement results, allowing you to measure AC/DC voltage/current, resistance, capacitance and on-off test.

This is a powerful oscilloscope and multimeter for hobbyists, students, and professional engineers. This 2-in-1 device can be your perfect companion in circuit analysis, fault detection, and repair work.

Best Features

  •  Both the Oscilloscope and Multimeter
  • Adjustable Backlight Brightness
  • Handheld and Portable

Why Oscilloscope is Helpful for Your Work? How to Use it Adequately?

An oscilloscope is an electronic test instrument that allows you to visualize and analyze the waveform of electronic signals. It is one of the most important tools for electronics engineers and technicians, as it allows them to troubleshoot and debug circuit designs.

Oscilloscopes work by converting electrical signals into a graphical representation on a screen, which can then be analyzed. They are often used to measure voltage, time, and frequency. Oscilloscopes can be used to measure both AC and DC signals.

There are two main types of oscilloscopes: analog and digital. Analog oscilloscopes use vacuum tubes, while digital oscilloscopes use semiconductor chips. Digital oscilloscopes are more common today, as they are more accurate and easier to use than analog oscilloscopes.

To use an oscilloscope, you must first connect the probe to the circuit you want to measure. The probe carries the signal from the circuit to the oscilloscope. Once the probe is connected, you can turn on the power and adjust the controls to display the waveform on the screen.

The most important controls on an oscilloscope are the horizontal (time) and vertical (voltage) controls. These controls allow you to adjust the scale of the waveform so that you can accurately measure it. Other important controls include the trigger control, which allows you to start the waveform at a specific point in time; and the sweep control, which allows you to control the speed at which the waveform is displayed on the screen.

Once you have adjusted the controls, you can begin to analyze the waveform. The most important thing to look for is the shape of the waveform. This can tell you a lot about the circuit you are measuring. For example, a square waveform indicates that the circuit is working properly, while a sine waveform indicates that there is a problem with the circuit.

You can also use the oscilloscope to measure voltage, time, and frequency. To do this, you need to use horizontal and vertical controls to scale the waveform so that it is accurate. Once you have scaled the waveform, you can use the cursors to measure specific points on the waveform.

Oscilloscopes are essential tools for anyone working with electronics. They allow you to visualize and analyze electronic signals, which can help you troubleshoot and debug circuit designs.

Buying Guide for the Best Oscilloscopes for Hobbyists

When choosing the best oscilloscope for hobbyists, it is important to consider what type of projects you will be working on. If you are only interested in observing electrical signals, then a basic oscilloscope will suffice. However, if you want to measure and analyze more complex signals, then a more advanced oscilloscope will be necessary. There are many different features to consider when selecting an oscilloscope, so it is important to do your research before making a purchase.

One of the most important things to consider when choosing an oscilloscope is the bandwidth. The bandwidth is the range of frequencies that the oscilloscope can measure. For most hobbyists, a bandwidth of 100 MHz will suffice. However, if you plan on measuring higher-frequency signals, then you will need an oscilloscope with a higher bandwidth. Another important consideration is the sample rate. The sample rate is the number of times per second that the oscilloscope takes a measurement. A higher sample rate means that you can observe faster signals with greater accuracy.

There are many other features to consider when selecting an oscilloscope for hobbyists. These include input sensitivity, trigger options, and storage capabilities. It is also important to consider the price when making your decision. While there are some very expensive oscilloscopes on the market, there are also some very affordable options that offer excellent performance for hobbyists. With so many different features to consider, it is important to do your research before making a purchase. By taking all of these factors into account, you can be sure to find the best oscilloscope for your needs.

What is the best Oscilloscope brand?

There are many different oscilloscope brands on the market. Some of the most popular brands include Tektronix, Agilent, and Keysight. These companies offer a wide range of oscilloscopes that are suitable for hobbyists. When choosing an oscilloscope brand, it is important to consider your budget and the features that you need. By taking all of these factors into account, you can be sure to find the best oscilloscope for your needs.

FAQs

What is an oscilloscope and what are its uses?

An oscilloscope is a type of electronic test instrument that allows you to visualize waveforms. Oscilloscopes are commonly used in the troubleshooting and repair of electronic equipment, as well as in the development of new electronic devices and circuits.

How do I choose the best oscilloscope for my needs?

When choosing an oscilloscope, you need to consider what types of waveforms you need to measure, the frequency range of the signals you want to observe, and the level of precision required. Other important factors include the size and weight of the oscilloscope, as well as its price.

What are some features that I should look for in an oscilloscope?

Some features that can be important when choosing an oscilloscope include bandwidth, sample rate, analog channels, digital channels, memory depth, trigger modes, and math functions. Make sure to read reviews to see which features are most important for your particular needs.

What are some of the best oscilloscopes on the market?

There are many different types and brands of oscilloscopes on the market today. Some of the best-known brands include Tektronix, Keithley, Agilent/HP/Keysight Technologies, Rigol Technologies, and Fluke Corporation.

If you are a hobbyist, then you know that having the best scope is important. There are many things to consider when purchasing a scope, such as price, performance, and features. In this article, we will go over some of the best oscilloscope for hobbyists in 2020. We will also provide a buying guide so that you can make an informed decision when purchasing a scope.

Why do I need an Oscilloscope?

There are many reasons why you might need an oscilloscope as a hobbyist. For example, if you are working on a project that requires measuring electrical signals, then an oscilloscope would be very useful. Additionally, if you want to learn more about electronics and how they work, then an oscilloscope can help you visualize what is happening inside electronic circuits.

What are the different types of Oscilloscopes?

There are two main types of oscilloscopes: analog and digital. Analog oscilloscopes use cathode-ray tubes (CRTs) to display waveforms. Digital oscilloscopes use liquid crystal displays (LCDs) or plasma displays instead of CRTs. Both types of oscilloscopes

Conclusion

I’ve compiled the 10 best budget oscilloscopes that are available on the market today, so you can find the perfect one for your needs. Whether you’re a beginner or an experienced user, we’re sure you’ll find an oscilloscope on this list that meets your requirements.
