7 Best Microscopes For SMD Soldering

There are several different microscope models on the market and they can be expensive. It is important to know what features you need from your microscope before making your purchase.


Which microscopes are the best for SMD soldering? How to pick the right one? Read this article, it will clear all these questions.

A microscope is a device used to see very small objects. These devices are also helpful in inspecting components like PCBs, solder joints, and other things. The point of this article is to help you make the choice of which microscope will work best for your needs.


There are many things to consider before you buy a microscope for SMD soldering. There are many different types of microscopes ranging from USB microscopes to microscopes with LED light.

You may have certain criteria in mind, like easy to use or affordable. Or you might need it for specific purposes such as research and development or public health. This article will help you identify the features of each top-selling microscope for SMD soldering so that you can make an informed decision about which one is right for you.

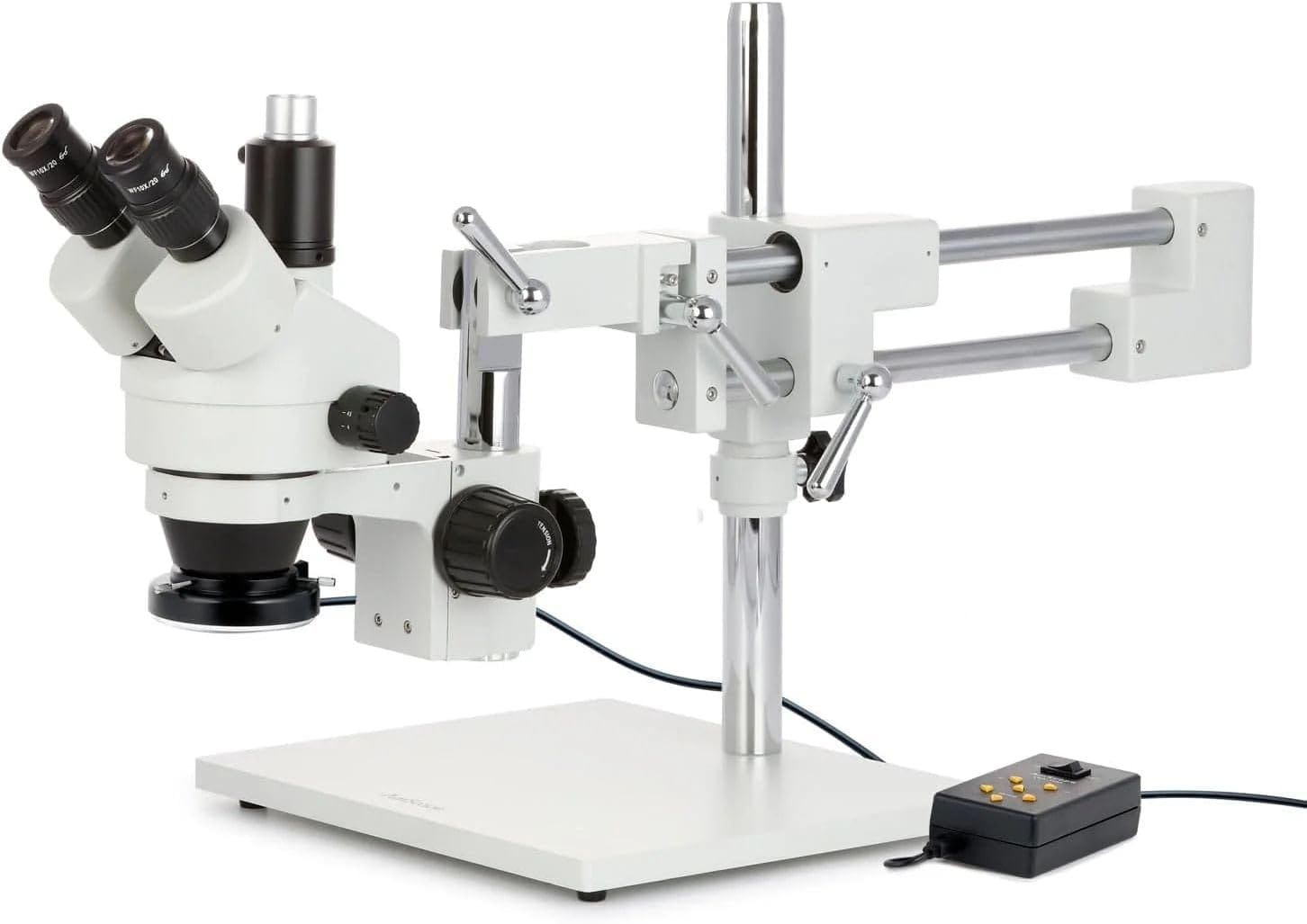

1. AmScope SM-4TZ-144A

AmScope SM-4TZ-144A
AmScope SM-4TZ-144A
Light Source TypeLED
ColorWhite
Real Angle of View45 Degrees
Magnification Maximum90.00
Item Weight0.01 Ounces
Voltage240 Volts
BrandAmScope
Objective Lens DescriptionAchromatic
Power SourceCorded Electric

This AmScope SM-4TZ-144A professional stereo zoom microscope has a wide range of magnification and is fitted with a bright LED ring light, giving you the best view possible of your object. It is made from durable aluminum and consists of four working zones.

The included 0.5X and 2.0X Barlow lens will allow easy inspection of boards at different magnifications, while the LED ring light will ensure that your work surface remains illuminated throughout your work.

It has two 10x super-widefield eyepieces and an interpupillary distance adjuster which can accommodate people with different eye distances. It also can rotate 360 degrees.

Best Features

  • Long Working Distance: This Microscope has a long working distance that will allow you to work on SMD components and large circuit boards.
  • 0.7x-4.5x Zoom: This magnification is perfect for all kinds of electronic work.
  • 144-Bulb LED: With these rheostat-controlled bulbs, you can easily work even in the low-lit area.

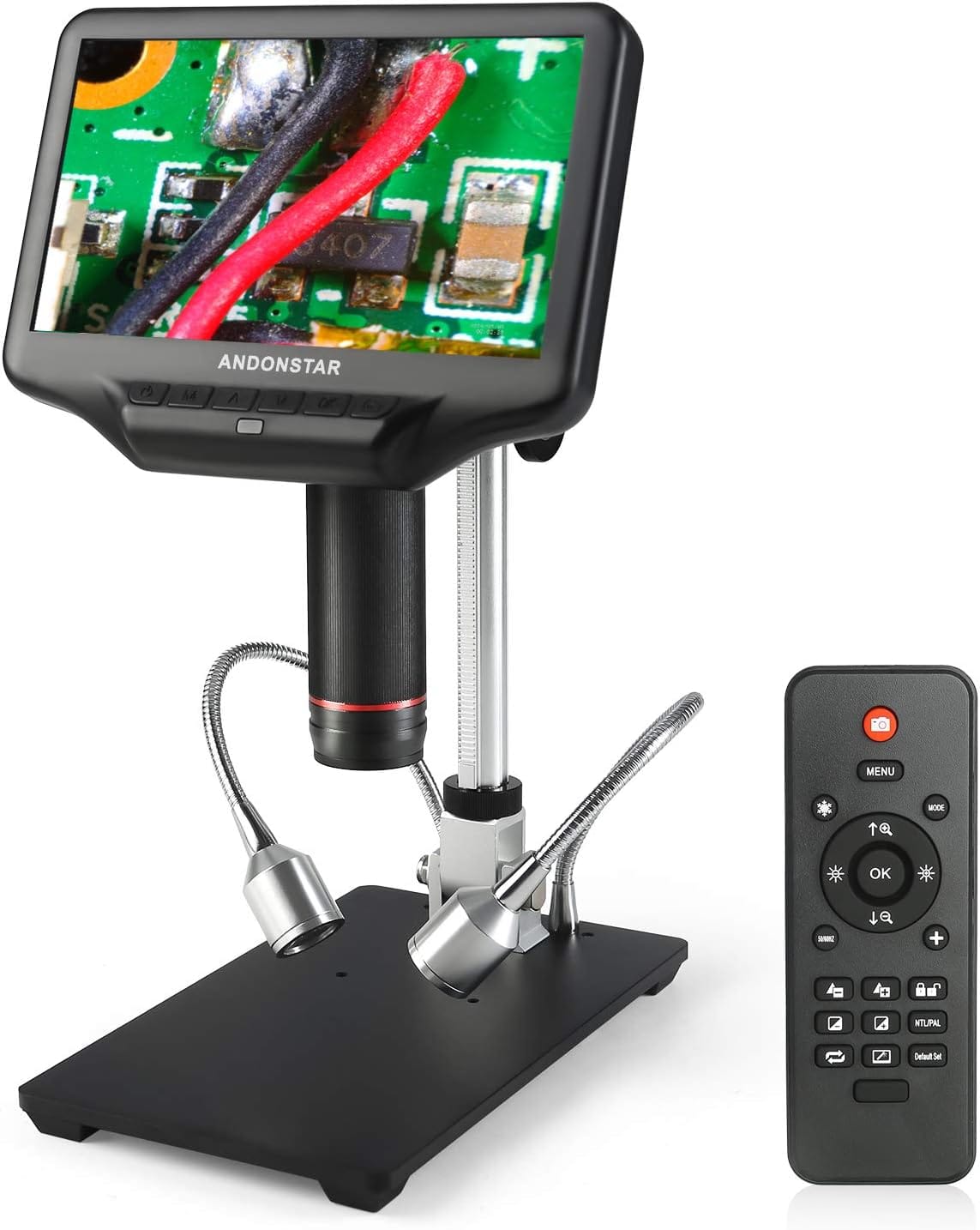

2. Andonstar AD407

Andonstar AD407
Andonstar AD407
Light Source TypeLED
Model NameAD407
MaterialPlastic, Metal
ColorBlack
Real Angle of View45 Degrees
Magnification Maximum270.00
Item Weight1.55 Kilograms
BrandAndonstar
Power SourceAC & DC

This Andonstar AD407 Microscope is more advanced than the traditional scope due to its 3D feature. This allows for a 360-degree view of the object on the screen, which is perfect for inspecting three-dimensional objects like phones or computer motherboards.

For electronic repair, it is essential to have a microscope powerful enough to focus on small circuits. Andonstar AD407 3D HDMI Soldering Digital Microscope with its 4MP UHD and 7-inch Adjustable LCD Screen USB Video Microscope is the perfect tool for this job.

The LCD screen offers high-quality photo and video capture and the metal stand makes it easy for you to get the perfect angle for whatever project you’re working on.

Best Features

  • UV Filter: This filter protects the lens from being dirty or damaged during soldering.
  • 1.97~7.09 Inch Object Distance: The 1.97~7.09 inch high object distance and big depth of field make this microscope have features that are rarely seen in the market.
  • Adjustable Stand: The microscope is sturdy, lightweight, and easy to move around.

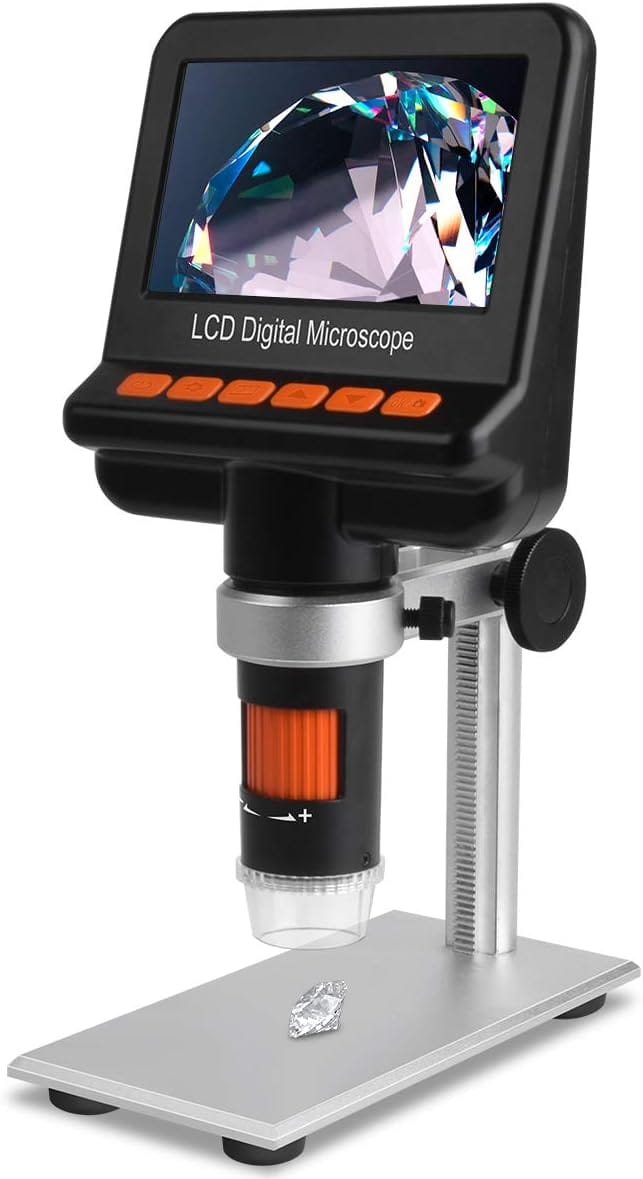

3. iSKUKA LCD Digital Microscope

iSKUKA LCD Digital Microscope
iSKUKA LCD Digital Microscope
Light Source TypeLED
MaterialMetal
Item Dimensions LxWxH8.66 x 4.92 x 2.56 inches
Real Angle of View45 Degrees
Magnification Maximum1200 x
Voltage5 Volts
BrandISKUKA
Objective Lens DescriptionAchromatic
Power SourceBattery Powered

The iSKUKA Digital Microscope is a high-quality microscope to help you work on SMD soldering. It delivers 1200x magnification for a better view and higher resolution images.

It has a polarizer filter so you can also see the contrast of the object on the screen. The microscope can magnify up to 1200x with a 0.02mm resolution. It has HD output and you can see what you’re doing on the screen.

It has 3 connection types: HDMI output to bigger HD monitor, TV port output to normal TV in your home, and USB port to computer to work with the powerful measuring software.

Best Features

  • Adjustable Polarizer: This will make any viewing experience better. Whether it be for coins, SMD boards, or diamond stones.
  • Clear Visibility: Easily remove glare, reflection, and unwanted images to make objects more visible.
  • Capture and Store: It has an SD card slot that is used for photo and video recording up to 32GB.

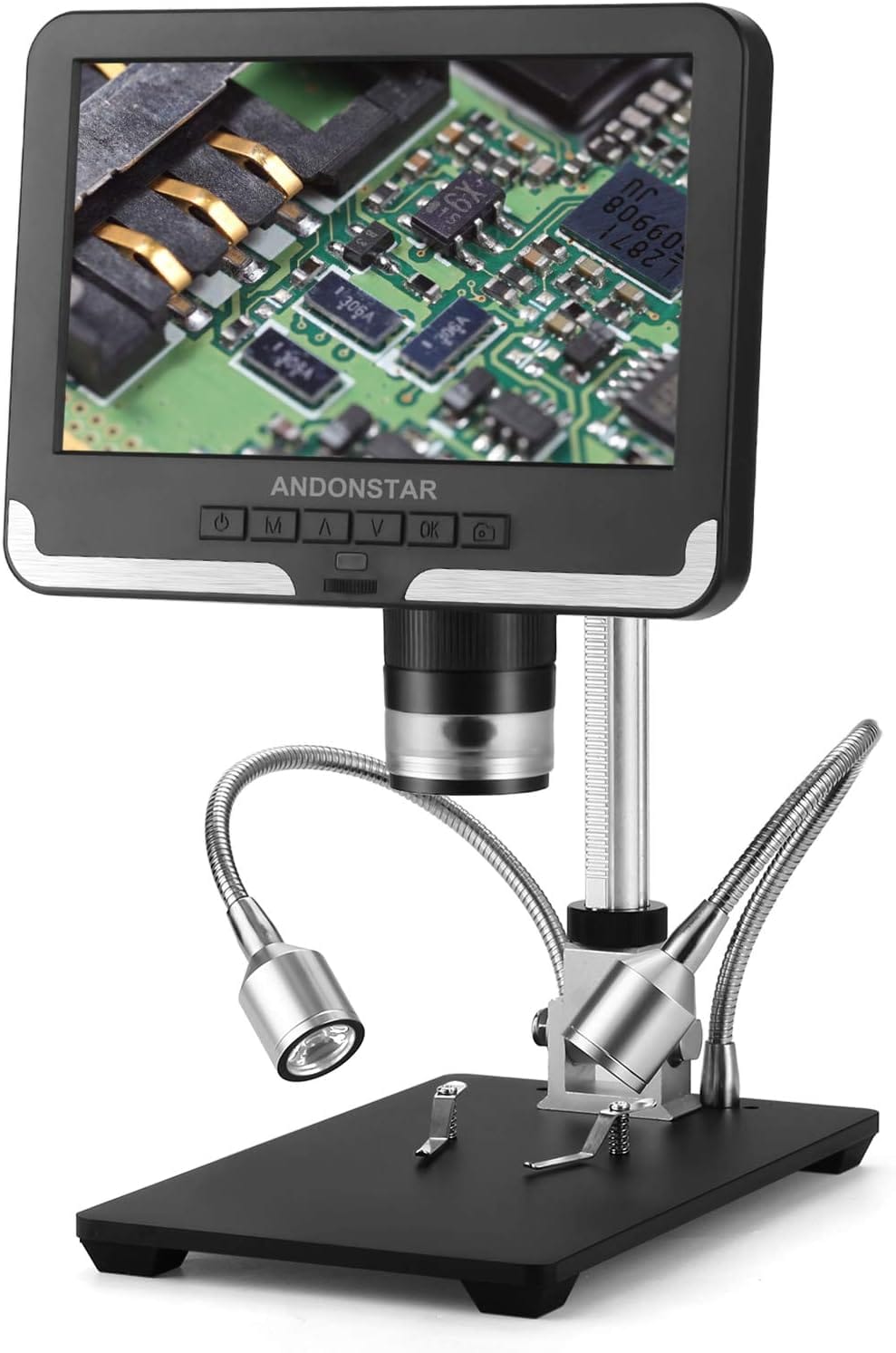

4. Andonstar AD206

Andonstar AD206
Andonstar AD206
Light Source TypeLED
MaterialMetal
Item Dimensions LxWxH8.66 x 4.92 x 2.56 inches
Real Angle of View45 Degrees
Magnification Maximum1200 x
Voltage5 Volts
BrandISKUKA
Objective Lens DescriptionAchromatic
Power SourceBattery Powered

The Andonstar AD206 Microscope has a 3D effect to help you easily view the clear details of tiny objects. 7-inch screen provides a wide field of view and can be easily and accurately performed repairing and other operations.

This microscope enables you to capture and record pictures and videos, and you can save them to the included SD card. And the 8 adjustable LED lights can help you easily view clear details.

With the UV Filter, the interference from external lights is eliminated and the image can be seen more clearly.

Features

  • Long Working Distance: It has a flexible metal stand that can move up and down and adjust the working distance.
  • 8 LED Lights: 8 adjustable LED lights can help you view exact details efficiently.
  • Comes Up With the UV Filter: The UV Filter prevents interfering lights and clears the image.

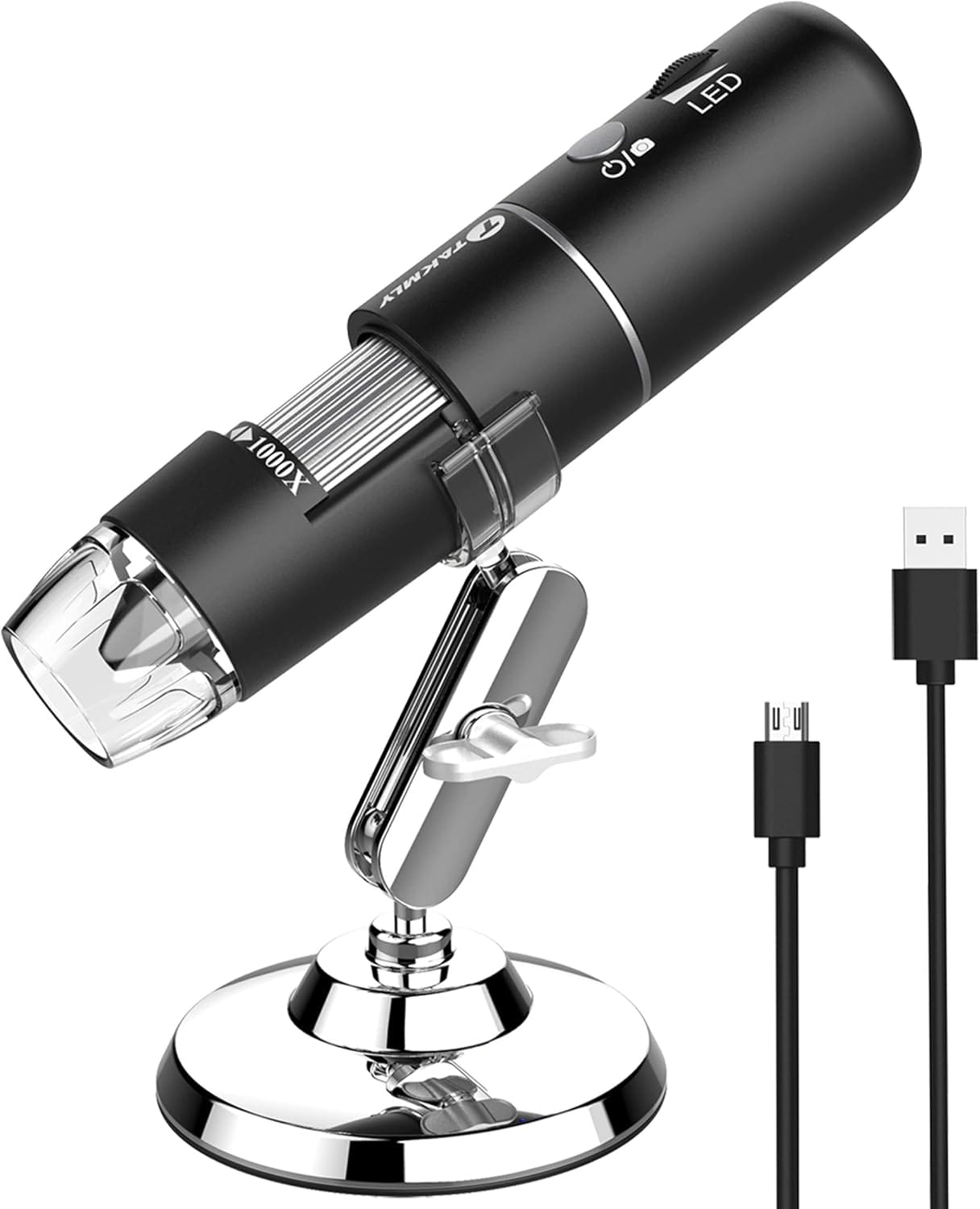

5. T TAKMLY Wireless Digital Microscope

T TAKMLY Wireless Digital Microscope
T TAKMLY Wireless Digital Microscope
Light Source TypeLED
Model NameMX200-B
MaterialPlastic
ColorBlack
Item Dimensions LxWxH5.3 x 1.3 x 1.3 inches
Real Angle of View45 Degrees
Magnification Maximum1000 x
Item Weight0.49 Pounds
Voltage5 Volts
BrandT TAKMLY

Stop carrying around a heavy, expensive microscope. Use the lightweight, wireless TTAKMLY Digital Microscope inspection camera to view small objects from a distance of 50x-1000x magnifications.

You can check your solder points quickly, view your circuit board from any angle, and inspect leads on a resistive network. This microscope can be used anywhere anytime with the app, and the design is small, and lightweight to carry around.

This microscope is wifi-enabled for use on a computer as well as a mobile device, so you’re always ready to capture the perfect image.

Best Features

  • App Provided: This microscope has a built-in app for usage that is compatible with Android and iOS both.
  • Built-in Camera: More than a microscope, it is a camera, It can not only zoom in but also take photos and record videos.
  • USB Connection: The USB connection allows the microscope to be plugged into the computer.

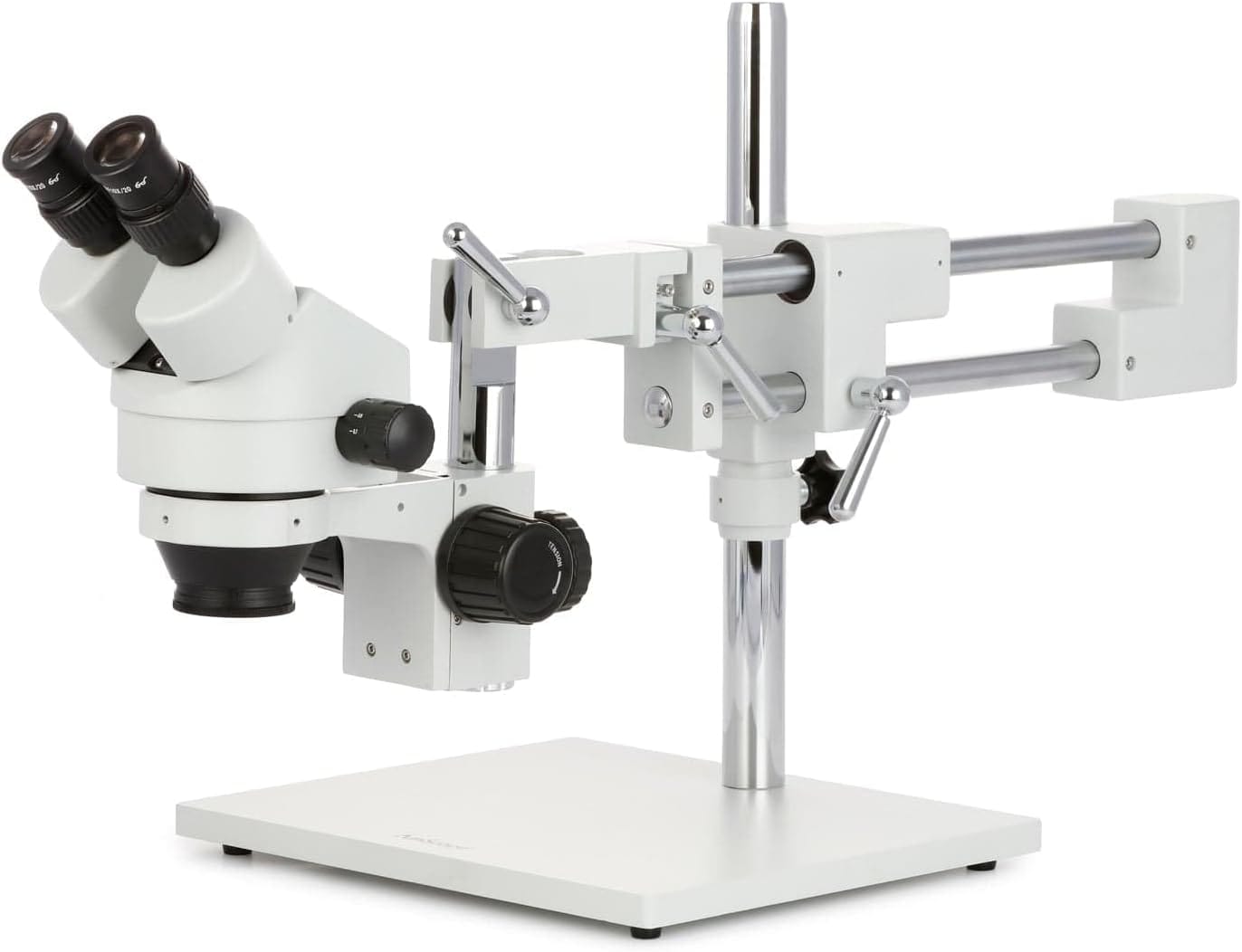

6. AmScope SM-4B Professional

AmScope SM-4B Professional
AmScope SM-4B Professional
Light Source TypeLED
ColorSilver, White, Black
Real Angle of View45 Degrees
Magnification Maximum45.00
Item Weight3.25 Pounds
Voltage240 Volts
BrandAmScope
Power SourceBattery Powered

The AmScope SM-4B is a high-quality stereo zoom microscope with an objective of 7X-45X magnification. It features a double-arm boom stand and WH10x eyepieces.

It is an affordable professional stereo microscope with 45 45-degree inclined binocular viewing head. AmScope SM-4B offers long working distance, binocular viewing head, and 360-degree rotation to give users a more comfortable experience.

Best Features

  • Two-Separate Eyepiece: This microscope enables both eyepieces to be used simultaneously to make more work possible.
  • 360-degree Rotation: It enables you to work comfortably because it rotates 360 degrees for multitasking.
  • Double-arm Stand: It has 20″ arms and a 17″ pillar that help you place the microscope correctly.

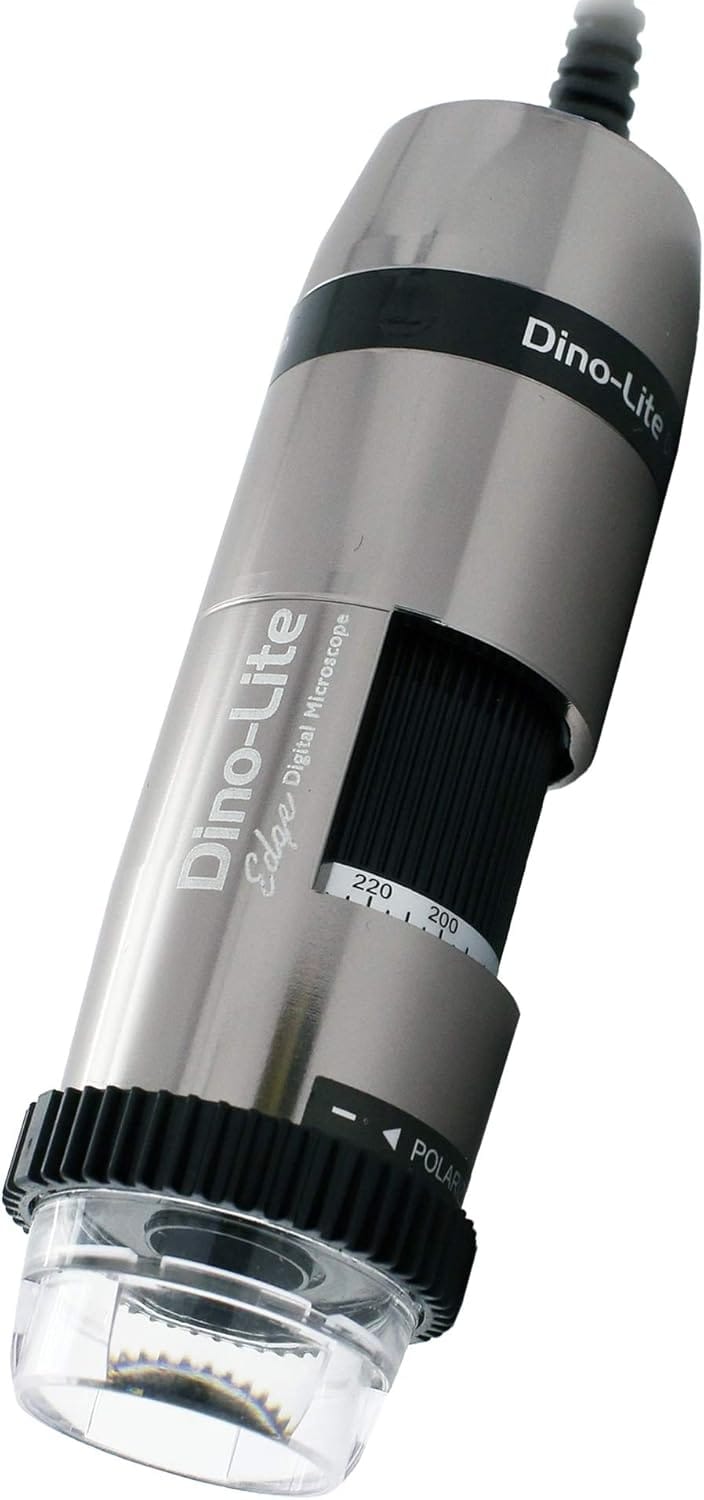

7. Dino-Lite USB Digital Microscope

Dino-Lite USB Digital Microscope
Dino-Lite USB Digital Microscope
Light Source TypeLED
Color5.0MP MT MS PZ IC
Item Dimensions LxWxH7 x 3 x 7 inches
Real Angle of View30 Degrees
Magnification Maximum220.00
Item Weight0.01 Ounces
Voltage5 Volts
BrandDino-Lite
Power SourceAdapter

Dino-Lite USB Digital Microscope is a powerful and versatile microscope that can be connected to a computer with a single USB cable. The Dino-Lite USB Digital Microscope AM7115MZT offers up to 5MP of resolution and 20x to 200x magnification, which can be used for viewing everything from the smallest electronic component to a whole human skin cell.

This instrument includes polarized light so you can control reflections and glare in your images to get the best picture possible.

Features

  • All Adjustable: You can adjust magnification, measurement type, and polarization.
  • Built-in Light Source: Use the built-in light to illuminate objects without additional equipment.
  • Micro Touch Feature: Touch-sensitive controls let you control the digital microscope without a keyboard and mouse, saving time and space.

How to Choose the Best Microscope for Your SMD Soldering Needs

When it comes to choosing the best microscope for SMD soldering, there are a few things you need to take into account.

Magnification:

The most important factor is the magnification of the microscope. You’ll need a microscope with at least 2.5–20x magnification to see the tiny solder joints on SMD components. If you’re working with very small components, you’ll need a microscope with high magnification. If you’re working with larger components, a lower magnification will suffice.

Light Source:

Another important factor to consider is the type of lighting that the microscope uses. Many microscopes use LED lighting, which is fine for most purposes. However, if you’ll be working with very small solder joints, you may want to consider a microscope that uses fluorescence lighting. This type of lighting makes it easier to see very small details.

Type Of Power Source:

You must decide what type of power source you want for your microscope. Some microscopes are battery-powered, while others plug into an AC outlet. Choose the power source that’s most convenient for you.

Decide According To Working Environment And Budget

Think about the environment in which you’ll be using your microscope. If you need portability, look for a compact model that can be easily transported. If you have a dedicated workstation, choose a model with a sturdy base that won’t wobble during use.

Finally, consider your budget. Many affordable microscopes on the market will suit your needs perfectly. With so many options available, it’s easy to find the best microscope for your SMD soldering needs.

Which Type Of Microscope Best Suits SMD Soldering Work?

Three main types of microscopes can be used for SMD soldering work: compound, stereo, and digital.

Compound microscopes are the most common type of microscope and are typically used in educational settings or for general-purpose work. They use two lenses to magnify objects, and the magnification can be changed by adjusting the distance between the lenses.

Stereo microscopes are designed specifically for three-dimensional work, such as soldering. They use two separate eyepieces to give the user a sense of depth perception, which can be helpful when working with small objects.

Digital microscopes are the newest type of microscope on the market and offer several advantages over traditional optical microscopes. They use a digital camera to capture images of objects, which can then be displayed on a computer screen or projector. This allows for a much larger field of view than what is possible with an optical microscope.

So, which type of microscope is best for SMD soldering work? It depends on your specific needs and preferences. If you need to see fine details or work with very small objects, then a compound or stereo microscope would be a better choice. However, if you want a wider field of view or prefer to view images on a screen instead of through an eyepiece, then a digital microscope would be the better option.

Conclusion

Picking the right microscope for SMD soldering is a process that takes into account your specific needs and preferences. With so many different microscopes on the market, it can be tough to know which one is right for you. If you’re looking for a microscope specifically for SMD soldering, we hope our list has helped you narrow down your options. Pick the one that best suits your needs and budget, and get started on your next soldering project!

If you have any questions or suggestions, feel free to leave us a comment below. Happy soldering!
