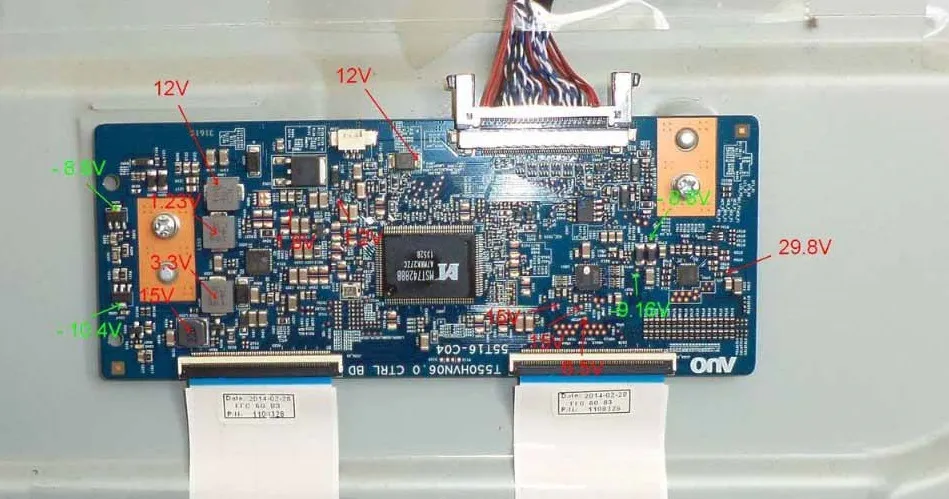

All T-CON Board Testing Points & Voltage Details

Hello, Repairing the T-CON board could be easy and simple with the help of T-CON Board Testing Points & Voltage Details. Using the Testing Point Data of any T-CON board, you can find the exact amount of the voltages that should be present on the particular point on your T-CON board. So in this way, you track the circuit of the T-CON and also find the bad components easily. After replacing the bad components the, Timing Control Board will start working again.

So after huge research and requests from all of our visitors, we have compiled a list of All T-CON Board Testing Points & Voltage Details. All the files are in JPG or PNG format, so after download, you can easily read them in any Image Viewer Software on a Mobile phone or PC. Also, if you click on the download button of any T-CON board Voltage, you can easily read the voltages data online in Mediafire, but if you want to save it you can click the download button again.

All T-CON Board Testing Points & Voltage Details

What is the T-CON Board?

The T-CON board is the television’s timing control board. It is responsible for generating the video signals that control the timing of the various components in the television. The T-CON board is also responsible for generating the synchronization signals that ensure that all of the components in the television are working together in harmony.

The T-CON board is typically located between the LCD panel and the mainboard. It is connected to the LCD panel via a ribbon cable. The T-CON board is usually made up of several smaller sub-boards, each of which is responsible for a different function.

The primary function of the T-CON board is to generate the video signal that controls the timing of the liquid crystal display (LCD) panel. The video signal consists of two parts: The synchronization signals (sync pulses) and the data signals. The sync pulses tell each pixel when to turn on and off, and the data signals contain information about what color each pixel should be.

The T-CON board generates these sync pulses using a technique called phase locked loop (PLL). PLL is a way of generating a square wave with very precise timing. By varying the frequency of the square wave, we can change how fast or slow each pixel turns on and off. This gives us control over how long each pixel is “on” for, and hence allows us to control what color it appears as.

How Does the T-CON Board Work?

When it comes to televisions, the T-CON board is responsible for the image displayed on the screen. This board is also known as the timing control board or the logic board. It is a small circuit board that connects to the LCD panel and controls the timing of the signal sent to the panel. Without a T-CON board, an LCD television would not be able to display an image.

The T-CON board is responsible for generating the video signals that are sent to the LCD panel. These signals tell the pixels when to turn on and off. The T-CON board also handles other important functions such as frame rate conversion and image scaling.

Frame rate conversion is necessary because most TV programs are filmed at a different frame rate than what is required for an LCD television. For example, movies are typically filmed at 24 frames per second while TVs require a 60 Hz refresh rate. The T-CON board converts the signal so that it can be displayed properly on an LCD television.

Image scaling is another important function of the T-CON board. This function ensures that images are displayed correctly on different-sized screens. Most T-CON boards can scale images up or down by a factor of two without losing any quality.

The T-CON board is a critical part of an LCD television but it is often overlooked. Without a functioning T-CON board, an LCD television would not be able to display an image correctly.

How to Fix a T-CON Board Problem

There are a few things you can try if you think your T-CON board is causing problems with your TV’s display.

1. Check all of the connections between the main board and the T-CON board. Make sure they’re secure and free of any dirt or debris.
2. If you have a multimeter, you can check for continuity between the pins on the T-CON board. This will tell you if there’s an issue with the connection between the boards.
3. You can also try replacing the T-CON board entirely. This is usually only necessary if there’s physical damage to the board or if another component on the main board is causing problems with the signal.
