Welcome to Soft4led! If you’re here, you’re likely in search of the latest firmware for the 6M48V2.0 HD LCD TV Board. You’ve come to the right place! This comprehensive guide will provide you with everything you need to know about the 6M48V2.0, from its features and specifications to the step-by-step process for downloading and upgrading its firmware. Let’s dive in!

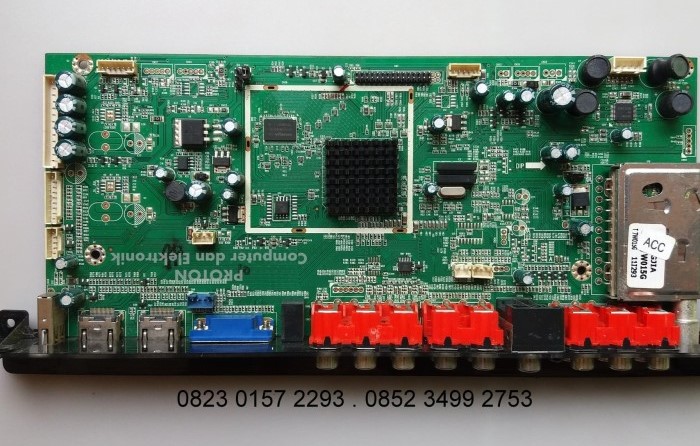

What is the 6M48V2.0 HD LCD TV Board?
The 6M48V2.0 is an HD LCD TV board designed for Asia and the Middle East, supporting a variety of input signals including HDMI, AV, PC-RGB, S-Video (optional), USB, YPbPr, TV signal input, earphones, SPDIF, and CVBS. Whether you’re watching your favorite shows or connecting your TV to various devices, this board has you covered.
Basic Info
- Model No.: 6M48V2.0
- Main Chipset: MST6M48
- Trademark: TOP-TECH
- Display Format: Up to 1920×1080
- Aspect Ratio: 4:3, 16:9, 16:10
General Specifications
- TV System: PAL/SECAM/NTSC
- Panel Interface: Single channel or dual channel 6/8 bit LVDS
- Key Button Functions: CH-/CH+/MENU/VOL-/VOL+/Source/Power
- Multi-Language OSD: Yes
- Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and earphone out
- Audio O/P Power: 2 x 3 Watt (8 ohm)
- Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
- USB Port: Yes, for firmware upgrade and multimedia playback support
- IR Control: Yes, controllable by remote control
Electrical Parameters
- Working Input Voltage: DC +12 Volt
- Maximum Current: 2000mA (without panel)
- Standby Power: <0.2W (for the motherboard only)
- Maximum Current for USB: 500mA
How to Upgrade Firmware
Upgrading the firmware of your 6M48V2.0 HD LCD TV Board is a straightforward process. Just follow these steps:
- Empty the UDisk: Make sure your USB drive is empty.
- Copy the corresponding resolution program: Based on your screen size, copy the correct firmware program to your USB drive.
- Connect the U disk to the mainboard: Insert the USB drive into the mainboard.
- Connect the keyboard and TV mainboard: Ensure both are properly connected.
- Connect the power supply: Check the keyboard light. If it flashes, the firmware is being written. Wait for the light to turn green to indicate completion. If there is no flashing light, disconnect the power, reconnect the USB, and then reconnect the power.
Factory Service Mode
To access the factory service mode, press Menu+2580 on your remote control.
6M48V2.0 Firmware Software Download Links
To download the latest firmware for the 6M48V2.0 HD LCD TV Board, click the link below. Make sure to choose the correct resolution for your TV.
- Download 6M48V2.0 1024×600-USB
- Download 6M48V2.0 1024×768-USB
- Download 6M48V2.0 1280×1024-USB
- Download 6M48V2.0 1280×800-USB
- Download 6M48V2.0 1366×768-USB
- Download 6M48V2.0 1400×1050-USB
- Download 6M48V2.0 1920×1080-USB
- Download 6M48V2.0-1920×1080-D8-JOF-MERGE
Conclusion
We hope this guide has helped you understand the features and specifications of the 6M48V2.0 HD LCD TV Board and how to upgrade its firmware. Keeping your firmware updated ensures your TV operates smoothly and efficiently, offering you the best viewing experience. If you have any questions or run into any issues, feel free to reach out to our support team. Happy viewing!
