Welcome to Teckwiki.com! Today, on April 7, 2025, we’re sharing a detailed guide on the 5800-A7N22T-0P00 firmware for the universal TV motherboard. This post provides free firmware files, technical details, and step-by-step instructions to help you update or repair your TV. Whether you’re a technician or a DIY user, this guide is packed with useful info to get your TV running smoothly.
What Is the 5800-A7N22T-0P00 Motherboard?
The 5800-A7N22T-0P00 is a smart Android TV board designed for LED TVs up to 50 inches. It supports Full HD resolution (1920×1080) and comes with modern features like built-in Wi-Fi, HDMI ports, and a digital tuner. This universal motherboard works with many TV brands, making it a popular choice for repairs or upgrades.
Key Features of 5800-A7N22T-0P00
- Resolution: 1920×1080 (Full HD)
- Processor: Novatek NT72563MBG-AC
- RAM: 512MB
- Storage: 4GB EMMC
- Audio: DTS Studio Sound with 2×8W speakers
- Ports: 2 HDMI, 2 USB, Ethernet (RJ45), Optic, Scart
- Tuner: Dual DVB-T2/S/T/C/S2 (supports analog, digital, and satellite signals)
- Wi-Fi: Built-in 802.11ac
- Operating System: WebOS
- Refresh Rate: 50 Hz
This board is perfect for watching movies, playing games, or streaming content. Its vibrant colors and clear picture quality make every moment on screen stand out.
Why Download 5800-A7N22T-0P00 Firmware?
Firmware updates fix bugs, improve performance, or restore a TV that’s not working. You might need this firmware if your TV:
- Freezes or restarts randomly
- Shows a blank screen
- Fails to load apps
- Needs a software refresh after a repair
Here, we provide free, tested firmware files for the 5800-A7N22T-0P00 board. These files come in two formats: EMMC backup dumps and USB bootable files.
Free 5800-A7N22T-0P00 Firmware Files
Below are the firmware files available for download. Each file is split into parts for easier handling. Choose the one that matches your TV model and needs.
- 5800-A7N22T-0P00-1920×1080-YASIN-50-EMMC.part1
- 5800-A7N22T-0P00-1920×1080-YASIN-50-EMMC.part2
(For Yasin 50-inch TVs, EMMC backup) - 5800-A7N22T-0P00-1920×1080-ZIFFLER-43-USB.part1
- 5800-A7N22T-0P00-1920×1080-ZIFFLER-43-USB.part2
(For Ziffler 43-inch TVs, USB bootable)
How to Download
- Click the download links (to be added).
- Save all parts of the file you need.
- Extract them using WinRAR or 7-Zip to get the full firmware.
How to Install 5800-A7N22T-0P00 Firmware
There are two ways to update your TV: USB installation or EMMC backup writing. Follow the steps below based on your method.
Method 1: USB Firmware Installation
- Download the USB bootable files (e.g., Ziffler 43-inch version).
- Extract the files: nvt_tv_firmware.img, u-boot.bin, and uloader.bin.
- Copy these files to a USB drive (FAT32 format).
- Plug the USB into your TV’s USB port.
- Turn off the TV and unplug it from power.
- Hold the power button on the TV (not the remote) and plug it back in.
- Wait for the update to finish—do not turn off the TV during this process.
Method 2: Writing EMMC Backup
- Download the EMMC backup files (e.g., Yasin 50-inch version).
- Connect your TV’s motherboard to a programming tool via JTAG.

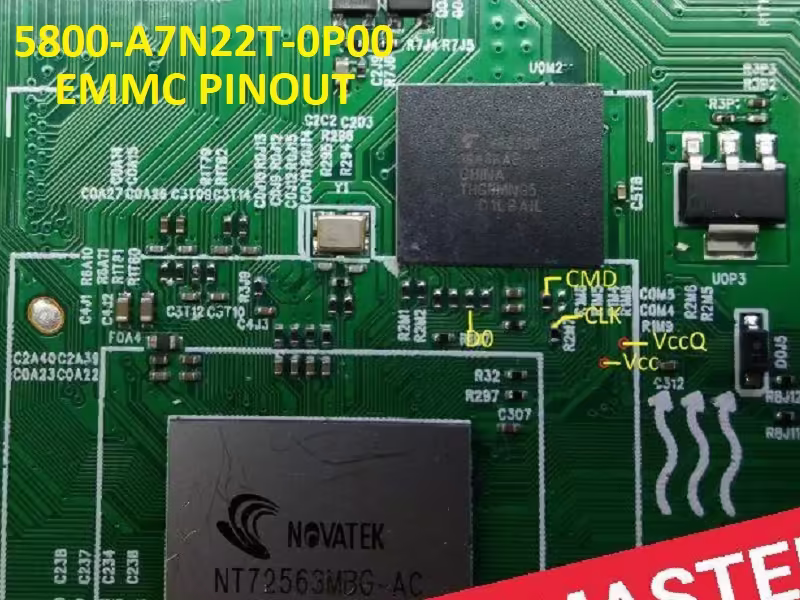

- Check the EMMC pinouts (see image below).
- Load the firmware file into the tool and write it to the EMMC chip.
- Restart the TV to test.
Note: Verify your motherboard model before installing. Teckwiki.com is not responsible for damage from incorrect firmware use. If you’re new to this, read our first.
Technical Specifications
Here’s a quick look at the board’s specs:
- Screen Type: LED
- Supported Formats: MPG, MP4, MKV, AVI, MP3, JPEG, PNG
- Inputs: HDMI x2, USB x2, AV, Ethernet, CI slot
- Outputs: Optic (SPDIF)
- Wireless: Miracast support
- Power Output: 16W total (8W per speaker)
This board handles everything from 4K gaming consoles to USB media playback. It even charges your phone via the USB port!
Service Menu Codes for 5800-A7N22T-0P00
Need to tweak settings? Use these common service menu codes:
- Input/Source 2580
- Menu 1147
For more codes, visit our ALL LCD/LED TV Service Menu Codes (Updated 2025).
Frequently Asked Questions (FAQ)
1. What TVs use the 5800-A7N22T-0P00 board?
It’s a universal board found in brands like Yasin, Ziffler, and others up to 50 inches.
2. Can I use this firmware on a 4K TV?
No, this firmware supports Full HD (1920×1080) only.
3. How do I know if my TV needs a firmware update?
Look for signs like slow performance, app crashes, or a dead screen.
4. Is it safe to install firmware myself?
Yes, if you follow the steps carefully. Double-check your TV model first.
Tips for Using 5800-A7N22T-0P00
- Gaming: Connect a console to an HDMI port for bright, vivid colors.
- Streaming: Use Wi-Fi or Ethernet for smooth app performance.
- Media: Plug in a USB drive to watch movies or view photos.
- Sound: Enjoy DTS Studio Sound with the built-in 16W speakers.
Conclusion
The 5800-A7N22T-0P00 firmware files shared here are free and ready to download as of April 7, 2025. This smart Android board brings Full HD visuals, strong audio, and plenty of connection options to your TV. Use our guide to install the firmware and get your TV back in top shape.
Have questions or issues? Drop a comment below—we’re here to help! Check out more TV firmware posts on for all your repair needs.
